Electric Installation QT2500 3.0

2.1.1 Analog Interface

Figure 1 and Figure 2 show pinout and the Analog interface terminal mounted on the PCBA.
An example of a hook up diagram for Analog interface is shown in Figure 3.
QT2500 3.0
Analog Interface

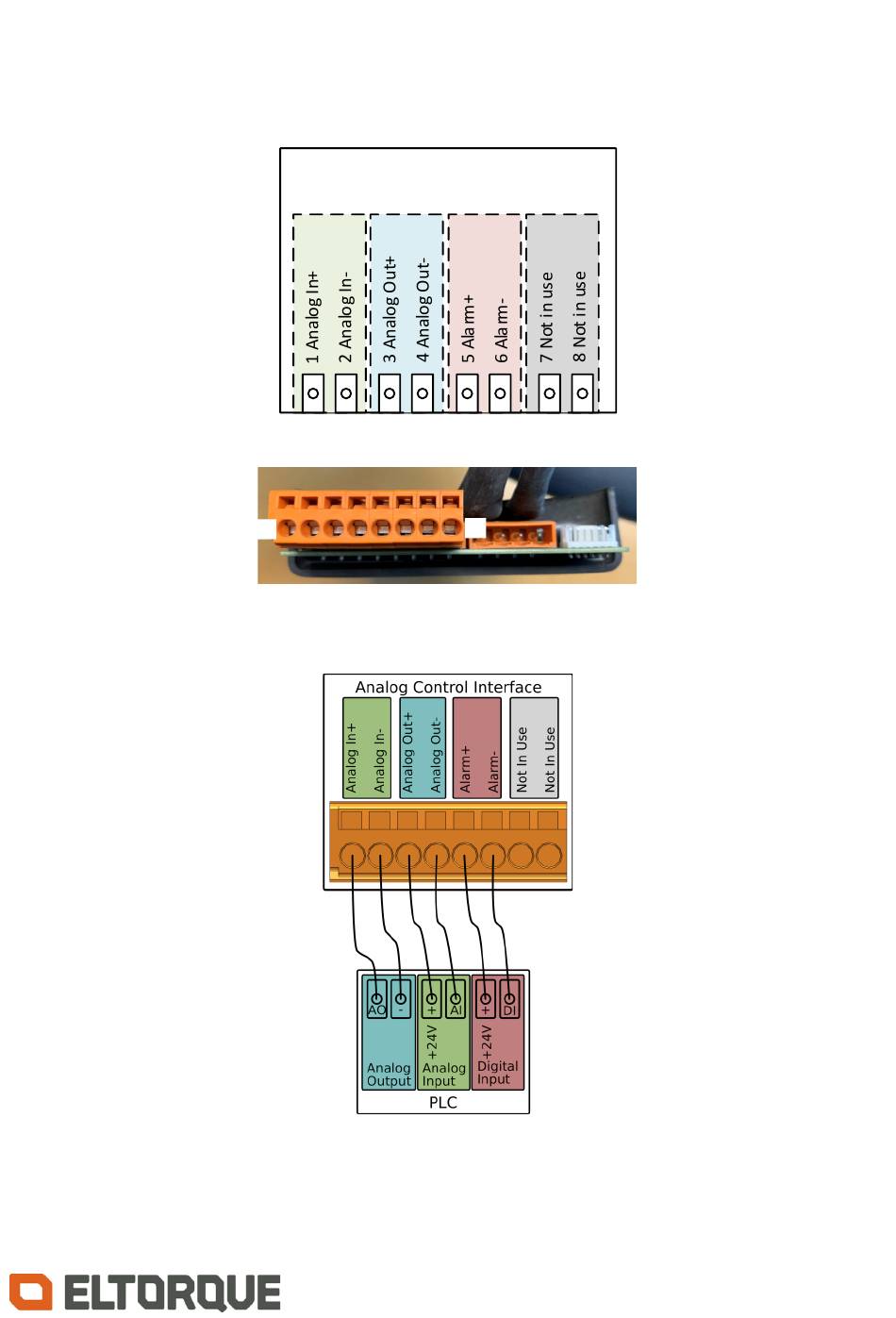

Figure 1 Pinout of Analog interface
1
Figure 2 Picture of PCBA with Analog interface
Figure 3 An example of hook up diagram for Analog Interface
