Rack Mounting 3000 Appliances

70715 6

Protecte d

2017

Rack Mounting Hardware

Use the shelf and the adapter bracket to install the Check Point 3100 or 3200

Appliance in a rack.

The appliance can be mounted with racks that have round holes or square

holes. For square hole racks, make sure that you use cage nuts or clip nuts to

attach the rack brackets to the rack.

Classification [Protected]

P/N:707156

For a list of our trademarks, please refer to: www.checkpoint.com/copyright.html.

For a list of our Third Party Copyright notices, please refer to:

www.checkpoint.com/3rd_party_copyright.html

Table of Contents

Do you have a question about the 3000 and is the answer not in the manual?

Page 1 Protecte d 2017 Rack Mounting Hardware Use the shelf and the adapter bracket to install the Check Point 3100 or 3200 Appliance in a rack. The appliance can be mounted with racks that have round holes or square holes. For square hole racks, make sure that you use cage nuts or clip nuts to attach the rack brackets to the rack.

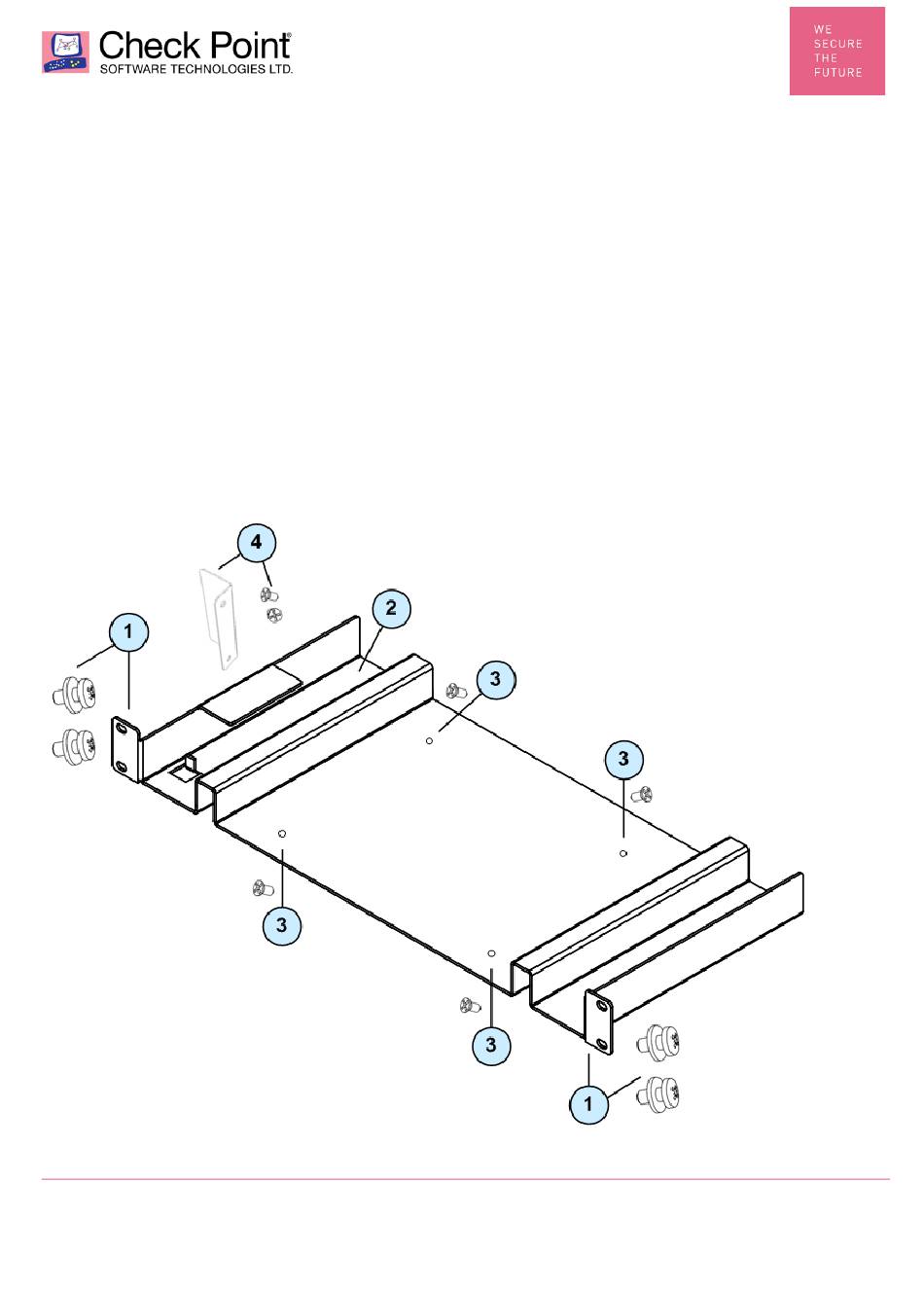

Page 2 Item Description Flanges that attach the shelf to the rack 4 round-head screws and 4 washers to attach the shelf to the rack Slot for power adapter Holes that attach the appliance to the shelf 4 flat-head screws to attach the appliance to the shelf Adapter bracket that secures the power adapter to the shelf 4 flat-head screws to attach the adapter bracket to the shelf Attaching the Appliance to the shelf...
Page 3 Attaching the Adapter Holder Place the power adapter in the adapter slot on the shelf. Use the adapter bracket to secure the power adapter. To secure the power adapter to the shelf: 1. Place the appliance power adapter in the adapter slot. 2.
Page 4 Installing the Appliance in the Rack Important - Two people are required to install the appliance in a rack to prevent personal injury or damage to the appliance. To install the shelf in the rack: 1. For square hole racks, attach cage nuts or clip nuts to the rack. 2.

3100 3200
