inVue Zips ZB1000 Manual

Zips

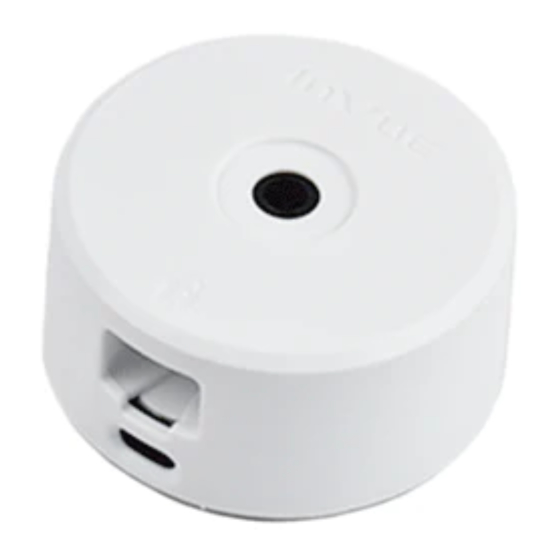

Single Port Alarm Unit, High Security
Plate and Power Cable
ZB1000, ZB3002 & ZB4001
Use the provided alcohol wipe to
3b
clean the high security plate. Allow it
to dry completely.
2
1
Use the provided alcohol wipe to
1
clean the surface (above or below the
counter) where the alarm unit will be
placed. Allow it to dry completely.
Peel the liner from the adhesive on
4
the bottom of the alarm unit.
Pull the tab to activate the battery. The
2
unit should make an audible "chirp".
If NOT using the High
5a
Security Plate:
Place the alarm unit in the
predetermined location (above or
below the counter). Apply pressure
for at least 10 seconds.
High Security Plate
3a
Installation (optional):
Determine where the alarm unit will
be placed (either above or below
counter). Attach the plate to the
fixture with the 2 screws provided.
If using the High Security
5b
Plate:
Align the holes on the bottom of the
alarm unit with the posts on the high
security plate. Apply pressure for at
least 10 seconds.
