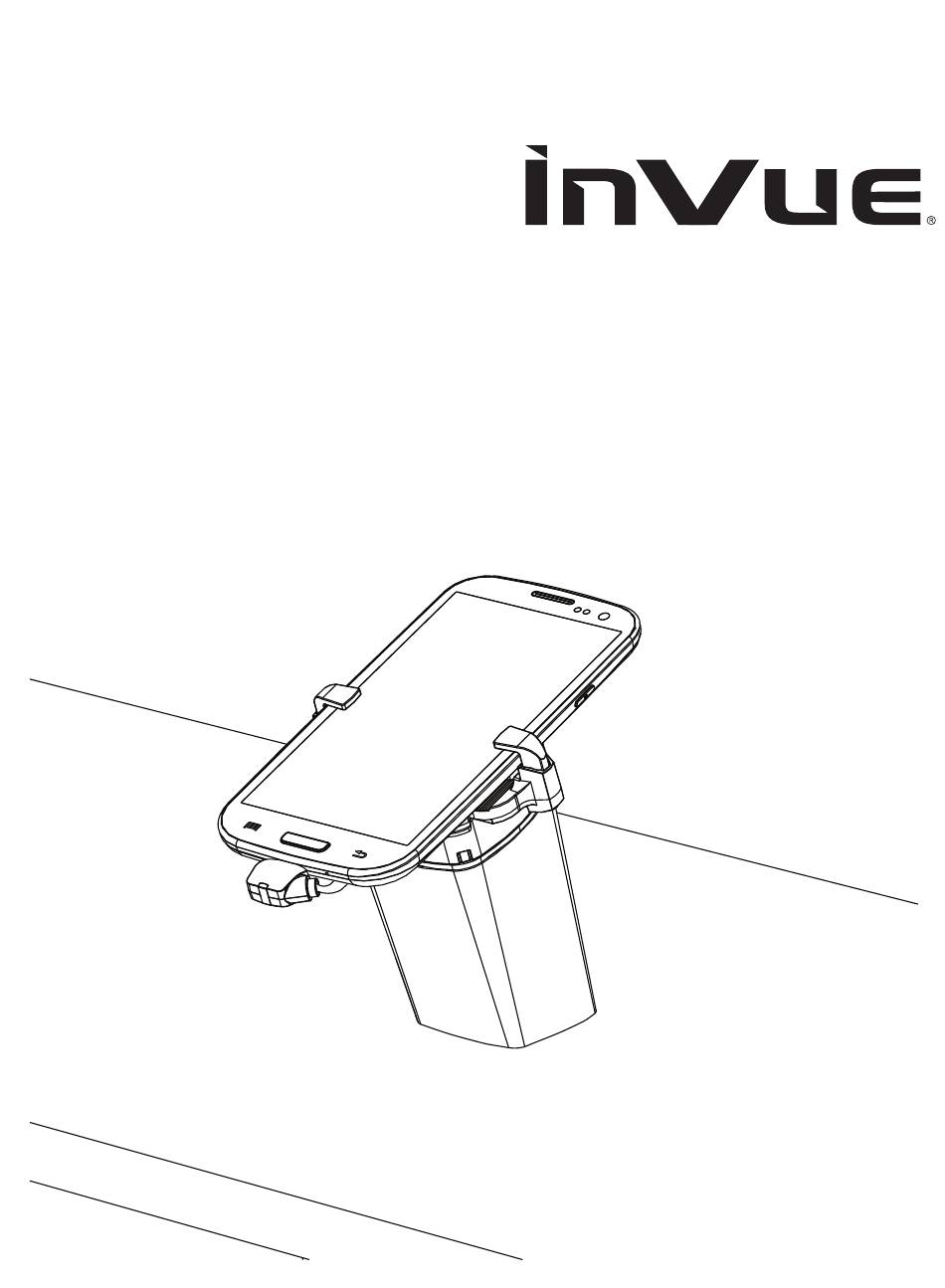

Series 1500

Puck & Stand

HC15000, HC15001, HC15002

Need help?

Do you have a question about the 1500 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for inVue 1500 Series

Page 1 Series 1500 Puck & Stand HC15000, HC15001, HC15002...
Page 2 Read entire instruction guide before starting installation. System Components 1. Puck/Stand 2. Mounting Plate 3. Recoiler 4. Sensor 5. IR Key (not included) 6. Power connector (if powering up merchandise, order separately) 7. Power Supply (if powering up merchandise, order separately) Tools 1.
Page 3 HC15406 HC15001 - Angled Stand HC15002 - Angled Puck Sensor Power Supply PS18VUS - US Power Connector PS18VEU - EU PS18VAUS - AUS PS18VUK - UK PS18VARG - ARG InVue IR Key Screwdriver & T-20 Bit Drill AF4400 or PK4400...
Page 4 Attaching Puck to Display Counter Adhesive Mount Screw Mount (See page 5) (See page 7)
Page 5 Drill a 19 mm (0.75”) hole in display counter. If displaying more than one puck/stand: Drill a 19 mm (0.75”) hole a minimum of 152 mm (6”) apart. Wipe display counter with alcohol wipe provided. Let it dry completely.
Page 6 Remove film from adhesive. Align puck directly over hole in display counter and press firmly for at least 10 seconds. “InVue” on bottom of puck/stand must be facing back of display counter.
Page 7 Attaching Puck to Display Counter – Screw Mount...
Page 8 Drill a 19 mm (0.75”) hole in display counter. If display- ing more than one puck/stand: Drill a 19 mm (0.75”) hole a minimum of 152 mm (6”) apart.
Page 9 Cut out template on page 38 to mark drill hole location for threaded rod. Drill a 7.5 mm (0.3”) hole into display counter. BACK OF STAND 7.50 mm (5/16") 15.40 mm 13.80 mm 19.00 mm (3/4") FRONT OF STAND...
Page 10 Screw threaded rod into bottom of puck/stand. Remove film from adhesive. Place threaded rod through display counter and press firmly for at least 10 seconds. Tighten wingnut below counter.
Page 11 Attaching Mounting Plate & Recoiler (Below counter installation) Jack Mounting Plate Recoiler Screw Mount - Adhesive Mount - Recommended Use only if screw mount (See page 12) cannot be used (See page 15)
Page 12 Fit opening in mounting plate to hole in display counter. Use mounting plate as template to drill all 3 holes for screws. Tighten all 3 screws with screwdriver.
Page 13 Feed jack through hole in mounting plate and push through puck/stand. Snap recoiler to mounting plate. Jack will remain locked in puck/stand once pushed through.
Page 14 If powering merchandise: Plug power supply into mounting plate cord and into outlet.
Page 15 Attaching Mounting Plate & Recoiler – Adhesive Mount (Use only if screw mount cannot be used)
Page 16 Remove film from adhesive on mounting plate. Fit opening in mounting plate to hole in display counter. Press firmly for at least 10 seconds.
Page 17 Feed jack through hole in mounting plate and push through puck/stand. Snap recoiler to mounting plate. Jack will remain locked in puck/stand once pushed through.
Page 18 If powering merchandise: Plug power supply into mounting plate cord and into outlet.
Page 19 Attaching Sensor Sensor without Bracket Arms Sensor with Bracket Arms (See page 20) (See page 25)
Page 20 Wipe back of merchandise with alcohol wipe provided. Let it dry completely.
Page 21 If powering merchandise: Plug power connector into sensor. Remove film on bottom of adhesive and press onto power connector. Remove film on bottom of adhesive.
Page 22 Plug power connector into merchandise. Remove film from adhesive.
Page 23 Center sensor onto back of merchandise and press firmly for at least 10 seconds.
Page 24 Slide clip open with key fob.
Page 25 Plug jack into sensor and slide clip closed.
Page 26 Attaching Sensor with Brackets...
Page 27 Wipe back of merchandise with alcohol wipe provided. Let it dry completely.
Page 28 Use T-20 bit to disassemble sensor.
Page 29 If powering merchandise: Plug power connector into sensor. Attach sensor top onto sensor bottom. Do not tighten sensor together until step 8. Sensor Top Sensor Bottom...
Page 30 Determine location of power plug on merchandise. Use diagram below to determine orientation of sensor. Once orientation of sensor is confirmed, flip phone face down as illustrated in step 5.
Page 31 Remove clear film from adhesive on sensor top. Center and firmly press sensor top onto back of merchandise for at least 10 seconds. Confirm groove in bottom sensor aligns with hook on top of sensor.
Page 32 Slide arms onto sensor and tighten arms around merchandise. Adjust height of arms to firmly fit around merchandise. Tighten with T-20 bit.
Page 33 Hook sensor bottom to sensor top. Firmly press arms around merchandise and tighten sensor together with T-20 bit. Plug power connector into merchandise. Sensor Bottom...
Page 34 Slide clip open with key fob.
Page 35 Plug jack into sensor and slide clip closed.
Page 36 Program System with IR Key Place key on IR lens on sensor. Press button on key once to program system. System will automatically re-arm after 30 seconds.
Page 37 Arm/Disarm System Place key on IR lens on sensor. Press button on key once to arm or disarm alarm.
Page 38 Puck/Stand Template (For screw mount only) BACK OF STAND 7.50 mm (5/16") 15.40 mm 13.80 mm 19.00 mm (3/4") FRONT OF STAND...
Page 40 Corporate Office (North America) // 704.752.6513 • 888.55.INVUE Europe, Middle East & Africa // +31.23.8900150 Asia Pacific // +852.3127.6811 Latin America // +52.55.9000.3957 © 2013 InVue Security Products Inc. All rights reserved. InVue is a registered trademark of InVue Security Products.
