- Page 1 BA30WP ORIGINAL INSTRUCTIONS HOT-WIRE ANEMOMETER CONTROLLED VIA SMARTPHONE...
-
Page 2: Table Of Contents
• Remove the batteries from the device if you will not be using the device for a longer period of time. • Never short-circuit the supply terminal in the battery compartment! hot-wire anemometer controlled via smartphone BA30WP... - Page 3 This symbol indicates that the device must be kept The Trotec MultiMeasure Mobile app on the terminal device is away from pacemakers or implanted defibrillators. used for both operation and the evaluation of the measured values.
-
Page 4: Information About The Device

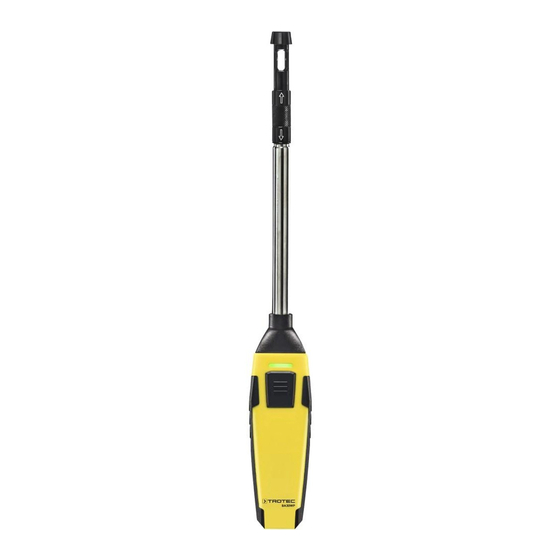

Battery compartment with cover Information about the device Lock Device description Used in combination with Trotec's MultiMeasure Mobile app the hot-wire anemometer permits measurements of air velocity, volumetric flow, air temperature and relative humidity. In case of individual measurements, the measurement value display can be refreshed both via the app and by a brief actuation of the measurement button at the measuring device. -
Page 5: Transport And Storage
Power supply 3 x 1.5 V batteries, type AAA Device switch-off after approx. 3 minutes without active Bluetooth connection Protection type IP40 Weight 122 g Telescopic probe Length approx. 170 mm to 375 mm Dimensions 22 mm x 36 mm x 320/555 mm (length x width x height) hot-wire anemometer controlled via smartphone BA30WP... -
Page 6: Operation
3. Hold the appSensor into the air current at a right angle. This ensures a precise measurement. III. MultiMeasure Mobile app Install the Trotec MultiMeasure Mobile app on the terminal device you want to use in combination with the device. Info Some of the app's functions require access to your location and an active Internet connection. - Page 7 ü The Trotec MultiMeasure Mobile app is installed. measurement. ü The Bluetooth function on your terminal device is activated. 1. Start the Trotec MultiMeasure Mobile app on the terminal When the appSensor has been successfully connected to the device. terminal device, a continuous measurement is started and 2.
- Page 8 15 Sensor settings Opens the settings menu for the button connected appSensor. 16 Start recording Starts a recording of the determined button measured values for later evaluation. hot-wire anemometer controlled via smartphone BA30WP...
- Page 9 Then the calculated value for the button measured values. current volumetric flow will be Opens the submenu for saving displayed. recordings. 19 Refresh measured Performs an individual measurement value button and refreshes the displays (17) and (18). hot-wire anemometer controlled via smartphone BA30WP...
- Page 10 Opens the input mask for logging recording data. 23 Discard button Stops the current recording of measured values. Discards the recorded measured values. 24 Continue button Resumes recording of the measured values without saving. hot-wire anemometer controlled via smartphone BA30WP...
- Page 11 Sensors Measurements Reports Customers Settings measurement. Reports 03/26/2019 report 01 report 02 No. Designation Meaning 37 Display reports Opens the selected report. button hot-wire anemometer controlled via smartphone BA30WP...
- Page 12 Creating a new customer App settings Proceed as follows to create a new customer: Proceed as follows to make settings in the Trotec MultiMeasure 1. Press the Customers button (38). Mobile app: ð The customers overview opens. 1. Press the settings button (41).
-
Page 13: Maintenance And Repair
ð The appSensor is switched off. menu item Settings => Help. Selecting the menu item Help 2. You may now exit the Trotec MultiMeasure Mobile app on opens a link to the app's help page. You can open a drop-down the terminal device. -
Page 14: Disposal
