Trotec BP17 Operating Manual
Pyrometer
Hide thumbs
Also See for BP17:
- Operating manual (12 pages) ,
- Original instructions manual (10 pages) ,
- Quick start manual (9 pages)
Related Manuals for Trotec BP17
Summary of Contents for Trotec BP17
- Page 1 BP17 OPERATING MANUAL PYROMETER...
-
Page 2: Table Of Contents
People who use this device must have read and understood the operating manual, especially the Safety chapter. To use the device for its intended use, only use accessories and spare parts which have been approved by Trotec. pyrometer BP17... -
Page 3: Information About The Device
The device must not be pointed at people. Do not use the device in potentially explosive atmospheres, for measurements in Device description liquids or at live parts. Trotec accepts no liability for damages The pyrometer BP17 uses an infrared sensor to measure resulting from improper use. - Page 4 Indication of the set threshold value (1 / 3 / 5 °C) °C / °F indication Measurement value display HOLD indication SCAN indication Reference value indication Designation Laser pointer Infrared sensor Battery compartment with cover Measurement button SET/lamp button °C/°F button Laser button Display pyrometer BP17...
-
Page 5: Transport And Storage

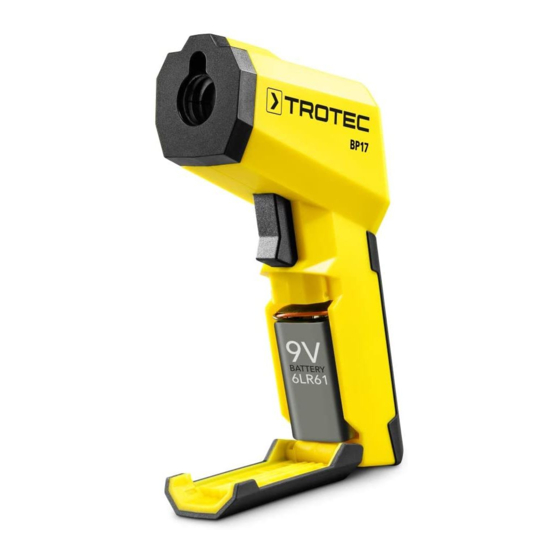

1. Open the battery compartment by folding open the cover (20) with your fingers. 2. Use the battery clip (19) to connect the new battery with correct polarity. 3. Insert the battery in the battery compartment. 4. Close the cover of the battery compartment. pyrometer BP17... - Page 6 ð The laser pointer is switched off. • 3 °C: The threshold value is respectively 3 °C (5.4 °F) higher or lower than the reference value. • 5 °C: The threshold value is respectively 5 °C (9 °F) higher or lower than the reference value. pyrometer BP17...
-
Page 7: Maintenance And Repair
Errors and faults The device has been checked for proper functioning several times during production. If malfunctions occur nonetheless, check the device according to the following list. For repairs or device testing, contact the manufacturer. pyrometer BP17... - Page 9 Trotec GmbH & Co. KG Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
