Solinst 615 ML Instructions

WARNING: Before driving into the ground, be sure you have under-ground service
clearance to avoid cables, gas lines, pipes, etc.
Note: Always follow local health and safety protocols for worker safety and
personal protection.

Component List

• 615 ML Multilevel Drive-Point Tip
• 615 ML Multilevel Drive-Point Ports
(maximum 3 when using 3/8" OD tubing, maximum 6 when using
1/4" OD tubing)
• Extensions (suitable to reach the required depth)
• Couplings (for connecting extensions together)
• 2 Pipe wrenches
• Sample tubing
(suitable to reach the required depth for each port)
• Tubing cutter
• Zip/cable ties (for tubing management) set of 10 (108885)
• Manual Slide Hammer
• Drive Head Assembly
Includes: Drive Head, Drive Extension & Tubing Bypass
• 1/4" Tube caps (set of 10) 111904 or 3/8" Tube caps (set of 10)
109188
Note: Drive-Points are designed for single use installations (temporary or
permanent). They are not meant for reuse.

Installation with a Manual Slide Hammer

1. Ensure that all components are clean prior to use.
2. Thread the Multilevel Drive-Point Tip into the bottom of the Multilevel Drive-
Point Port that will be the lowest in the assembly, or use a coupling to connect
an extension to the tip, then thread the port onto the extension. Tighten
components with pipe wrenches.
3. Cut a piece of tubing for each port to the depth of the proposed port installation
plus an additional 1.5 m (5 ft). Identify the top of tubing. Consider cutting
the tubing tops to different lengths (e.g. longest tubing length is deepest port;
shortest denotes shallowest port).
4. Connect the 3/8" OD or 1/4" OD sample tubing to the barbed port stem by
pushing firmly until the tubing reaches the base of the barb – 1/4" OD tubing
will reach the base of the first barb and 3/8" OD tubing will reach the base of the
second barb.
5. Slide a length of extension pipe over the tubing, and thread it firmly into the port.
Allow the free end of the sample tubing to turn freely to avoid twisting within
the extensions. Longer tubing lengths may require rotating the excess tubing by
hand.
6. Continue adding extensions and couplings to the depth required, or suitable
'working height' to use the Slide Hammer assembly (3 ft. long). Use pipe
wrenches on all joints.
Important: There needs to be at least a 6" extension between ports. The
Tubing Bypass can not be threaded directly to a port.
7. Slide the Tubing Bypass over the tubing and tighten it firmly onto the extension
pipe, with the tubing extending through the side hole.
WARNING: When connecting or removing the Tubing Bypass, allow the sample
tubes to turn freely to avoid twisting. Longer tubing lengths may
require rotating the excess tubing by hand.
8. Slide the hammer over the Drive Head and operate the hammer to drive the
device until only about 15 cm (6") of the extension pipe below the Tubing Bypass
remains above the ground.
(Page 1 of 2)

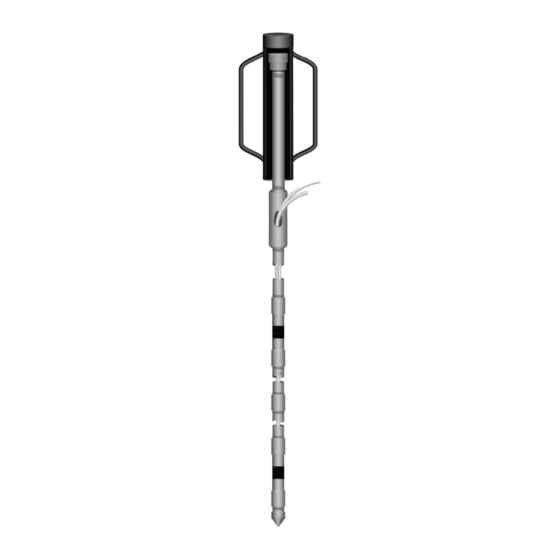

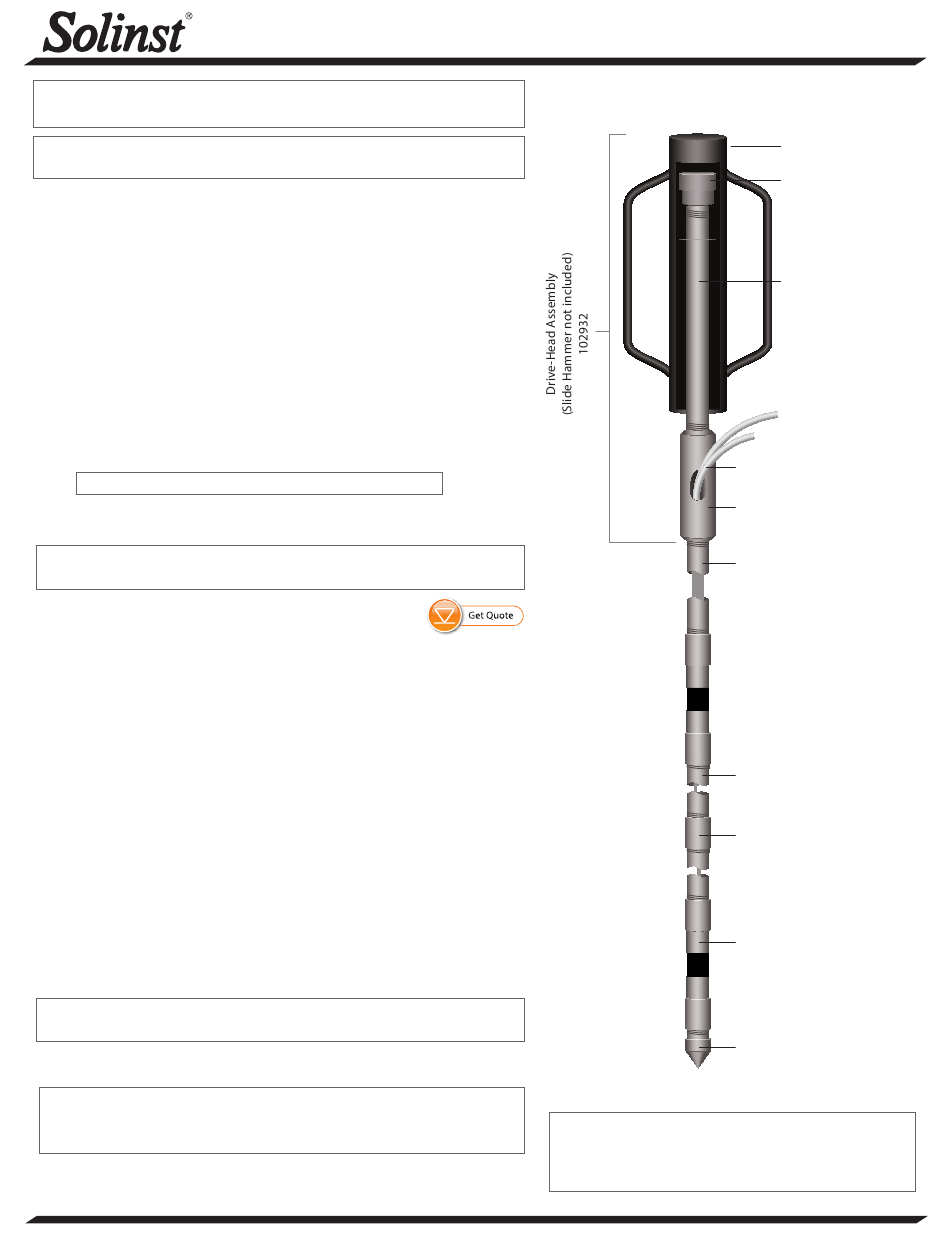

Multilevel Drive-Point Piezometer Instructions
More Info | Instructions | Get Quote
High Quality Groundwater and Surface Water Monitoring Instrumentation
Model 615 ML (with Slide Hammer)
WARNING: For health and safety reasons, it is strongly
suggested that only a suitable slide hammer be
used. Sledge hammers are not suitable and can
cause serious physical injury.
21 lb Slide Hammer
102174
Drive Head
101387
2' Stainless Steel
Drive Extension
110002
Sample Tubes
Tubing Bypass
112834
6", 1' , 2' or 3' x 3/4"
NPTM Stainless Steel
Extensions
1' , 2' or 3' x 3/4"
NPTM Stainless Steel
Extensions
Stainless Steel Coupling
111147
Multilevel Drive-Point Port
6" x 3/4" NPTF
116002
Multilevel Drive-Point
Piezometer Tip 1" x 3/4" NPTM
115996
