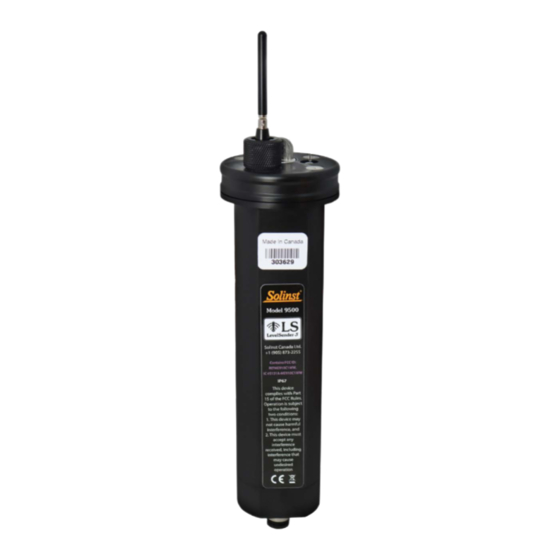

- Page 1 Quick Start Guide 9500 LevelSender 5 Telemetry LevelSender Remote Station Antenna Battery Compartment LED Activity Light Serial Number Datalogger Connection Opening to Internal Barometer High Quality Groundwater and Surface Water Monitoring Instrumentation...
-
Page 2: Getting Started
3. Ensure the grommet is in the nut and install the nut over the antenna and thread onto the top cap. Note: You can leave the top cap open if you will be programming the LevelSender 5 (see Step 8). - Page 3 Levelogger 5 connected, or to a LevelVent 5 Wellhead. Splitter Note: See separate Solinst Cloud User Guide if setting up your LevelSender using Solinst Cloud. 6) Download LevelSender Software Download the newest version of LevelSender Software on your home station PC, at: https://downloads.solinst.com...
- Page 4 The Home Station Email can also be set up by selecting Email Account Configuration from the Configuration menu in the LevelSender Software. 8) Connect LevelSender 5 to PC For initial setup and direct communication with LevelSender Software or Solinst Cloud, the LevelSender must be connected to the PC using a USB cable.
- Page 5 Note: Each LevelSender 5 must have a unique, dedicated email address. Solinst recommends creating a new email address for each LevelSender 5. Note: Emails and data recipients are not required if you are using Solinst Cloud. See separate User Guide.
- Page 6 Note: Ensure you have added all required recipients, as you can only make changes to the list when the LevelSender 5 is connected to the PC. You can also Enable your data to be sent to an FTP Server of your choice by entering the required settings, including the FTP Server Subfolder location.
- Page 7 LevelSender 5 Quick Start Guide 6. Optionally, set up alarm conditions for each attached datalogger. 7. Diagnostic tests are automatically performed after you have entered all of the setup information, including FTP transfer if enabled. When all the diagnostics tests are passed, click Start LevelSender to complete the setup of your LevelSender 5.
- Page 8 Note: Providing enough slack at the top of the well allows you to lift the LevelSender 5 from the well cap base, in order to accommodate periodic depth to water measurements, without disturbing the datalogger(s) from the downhole position.
-
Page 9: Maintenance
LevelSender Changes Tab for Remote Station Updates Note: If you Stop a LevelSender 5, it will stop sampling/reporting, but will continue to check for remote email updates (e.g. a new start time) from the Home Station at the set reporting rate. -
Page 10: Data Collection
The database can be queried by your own macros or applications to automatically check for updates and display the data in your own program. LevelSender Data Collection Tab for Viewing Email and Data Note: See the Solinst Cloud User Guide for details on viewing data using the Solinst Cloud. - Page 11 Also for diagnostic purposes, a log file with any reported errors can be found on the Home Station PC. Typical default directory: <C:\Users\Name\Documents\LevelSender\log> Compatibility The LevelSender 5 is compatible with the following Solinst dataloggers, using the most recent firmware versions (and up): Datalogger...
