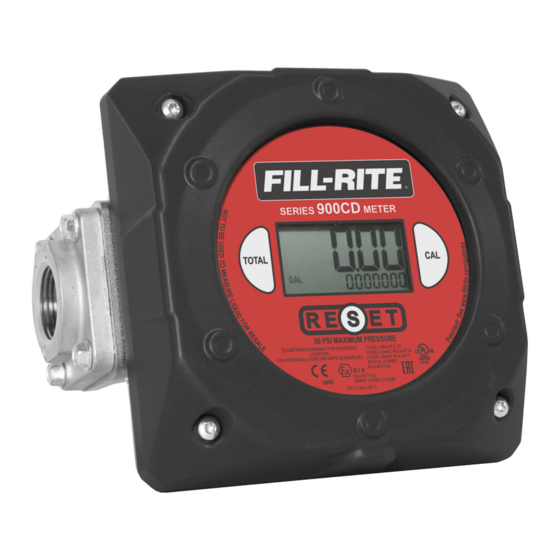

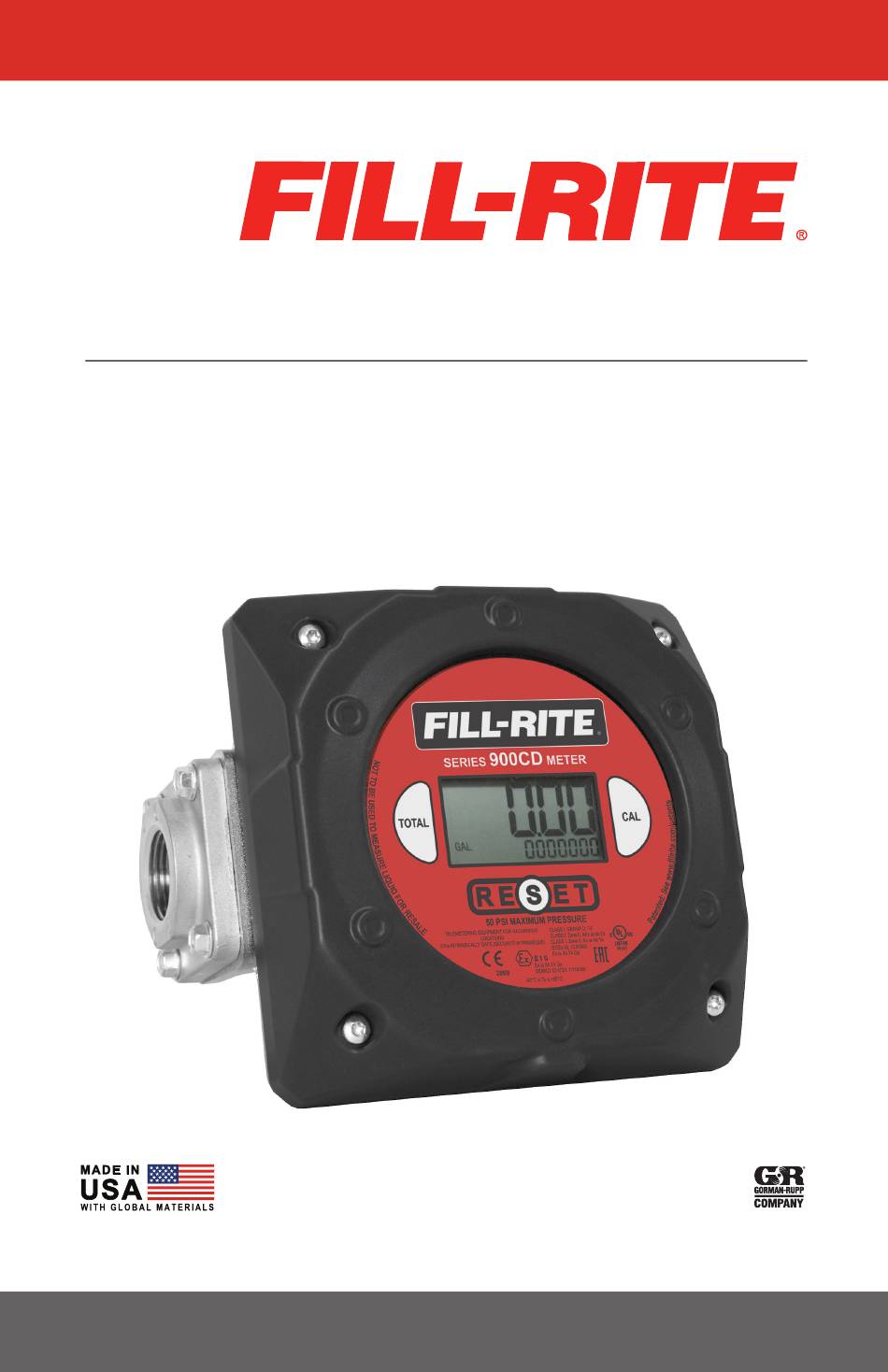

- Page 1 900CD SERIES DIGITAL METER Installation and Operation Manual...
-
Page 2: Table Of Contents
About This Manual From initial concept and design through its final production, your Fill-Rite meter is built to give you years of trouble free use. To ensure it provides that service, it is critical that you read this entire manual prior to attempting to install or operate your new meter. -
Page 3: Installation
1. NEVER smoke near the meter, or use the meter near open flames when metering a flammable liquid! Fire can result! 2. A “Fill-Rite” Filter should be used on the meter outlet to insure no foreign material is transferred to the fuel tank. -
Page 4: Meter Calibration
INSTALLATION AND OPERATION MANUAL | 900CD DIGITAL METER Meter Calibration Meter calibration is required upon installation, after disassembly, after significant wear, or when dispensing a different viscosity fluid. Calibration must be done between 6 and 40 GPM (23 and 151 LPM). Meter calibration can be easily changed by following the calibration procedure. -
Page 5: Operating Instructions
The meter portion of your dispenser should be calibrated per instructions in this manual prior to its use. The Fill-Rite 900 Series Digital Meter face incorporates three buttons that control all the operation and calibration functions. To turn the display on, or wake the meter from “Sleep” mode, simply press any button on the face. The display will turn on and you can proceed with the function you desire. -
Page 6: Low Battery Warning
The following Troubleshooting Guide is designed to help you with basic digital diagnostics and repairs if you should encounter abnormal service from your 900 Series Meter. We recommend you use only genuine Fill-Rite parts. These parts, and additional service information is available through your authorized Fill-Rite dealer. -
Page 7: Fluid Compatibility
The 900CD Series Meter IS compatible with the following fluids: Diesel Fuel, Bio-Diesel (up to B20), Mineral Spirits, Heptane, Hexane, Gasoline, E15 The 900CD Series Meter IS NOT compatible with the following fluids: Bleach, Hydrochloric Acid, Ink, Sulfuric Acid, Salt Water... -
Page 8: Repair
Meters not adhering to these specifications may be refused for service. Safety Testing Approvals The Fill-Rite 900CD Series Meters have been tested for compliance to the standards set forth by Underwriters Laboratories (UL), UL Canada, ATEX, and other testing organizations. -
Page 9: Replacement Parts Information
INSTALLATION AND OPERATION MANUAL | 900CD DIGITAL METER Replacement Parts Information Replacement parts can be obtained through any authorized Fill-Rite dealer. Be sure to use only genuine Fill-Rite replacement parts for your service and maintenance needs. 900 Series Digital Meter Replacement Parts Kit... -
Page 10: Electrical Installation Information
(see page 6 for details). If there are questions regarding appropriate replacement batteries for your meter, please contact Fill-Rite Technical Support at 1 (800) 720-5192 or via email at FillRiteTech@fillrite.com (M-F, 8 AM – 5 PM ET). Incorrect battery selection may void UL certification. -
Page 11: Technical Specifications And Information
INSTALLATION AND OPERATION MANUAL | 900CD DIGITAL METER Technical Specifications and Information Dimensions: 6.75" (H) x 8.46" (W) x 4.10" (D) Accuracy: ± 1.25 % Repeatability: ± 0.25% at calibrated flow rate. Flow Rate: 6 to 40 GPM Pressure Rating: 50 psi Construction: Aluminum Units of Measure: ounces, pints, quarts, liters, gallons,... - Page 12 Fill-Rite Company 8825 Aviation Drive Fort Wayne, Indiana 46809 USA T 1 (800) 720-5192 1 (260) 747-7524 F 1 (800) 866-4681 fillrite.com | sotera.com | gormanrupp.com DC000159-000 Rev. 6...
