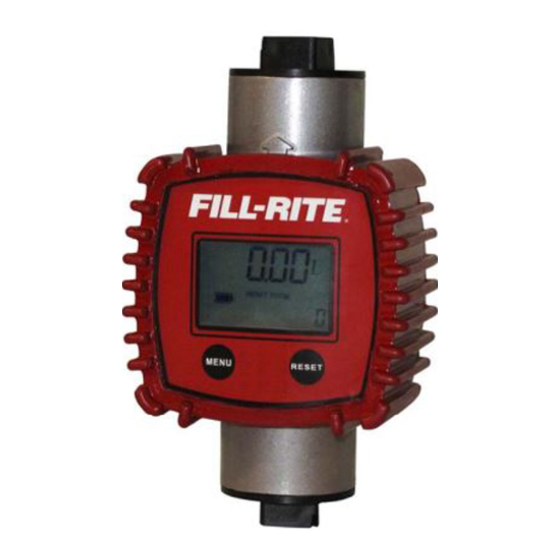

FILL-RITE FR1118-A10 User Manual

Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
FR1118-A10
User's Manual
WARNING
Read carefully and understand all INSTRUCTIONS before operating.
Failure to follow the safety rules and other basic safety precautions may result
in serious personal injury. Save these instructions in a safe place and on hand
so that they can be read when required.
mdi - Manufacturers Distributor Inc. | Phone: (813) 241 - 4900 | Fax: (813) 571 - 0422 | www.SoteraSales.com | Sales@SoteraSales.com

Advertisement

loading

Related Manuals for FILL-RITE FR1118-A10

Summary of Contents for FILL-RITE FR1118-A10

  • Page 1 FR1118-A10 User’s Manual WARNING Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Save these instructions in a safe place and on hand so that they can be read when required.

  • Page 2: User Buttons

    1. INTRODUCTION 1.1 Technical Data 1.1.1 The turbine digital meter is designed for use with the following low viscosity fluids: diesel fuel kerosene WARNING! Use of other fluids may be inaccurate and can damage the meter! 1.1.2 Flow Rate: 3-26GPM, flow rates outside of this range may have reduced accuracy. 1.1.3 Operating pressure: 10BAR / 145PSI 1.1.4 Inlet/Outlet: 1”...

  • Page 3: Daily Use

    3. DAILY USE 3.1 BUTTON USAGE, CALIBRATION AND MEASUREMENT UNIT CHANGE  Reset the present total (See Fig. 2) When the meter is in standby mode, press the RESET key. The display shows all the segments at once. The meter resets to display “0” on the resettable totalizer. Fig.
  • Page 4 3.3 Calibration Procedure (Using the Correction Factor) Carefully follow the procedure indicated below. FORMULA Proper correction factor = current correction factor× (actual value / display value) Example: Actual value 20.75 Display value 18.96 Current correction factor 1.000 Proper correction factor 1.000×(20.75/18.96)=1.000×1.094=1.094 Wait for the meter to go into standby (blank screen).
  • Page 5 3.4 MODIFY THE CORRECTION FACTOR IN FIELD PLEASE CAREFULLY FOLLOW THE PROCEDURE INDICATED BELOW. Wait for the meter to go to standby. Reset the resettable total. Start dispensing into a measuring glass. Stop dispensing when 5 Litres of volume is reached, read out the actual value.
  • Page 6 4. MALFUNCTIONS Problem Possible Cause Corrective Action Bad battery contact Check battery contacts LCD: no indication Wrong FACTOR With reference to paragraph 3.3 & 3.4, Imprecise check the FACTOR measurement meter works below Increase the flow rate until an acceptable minimum acceptable flow rate flow rate range has been achieved Reduced or zero...
