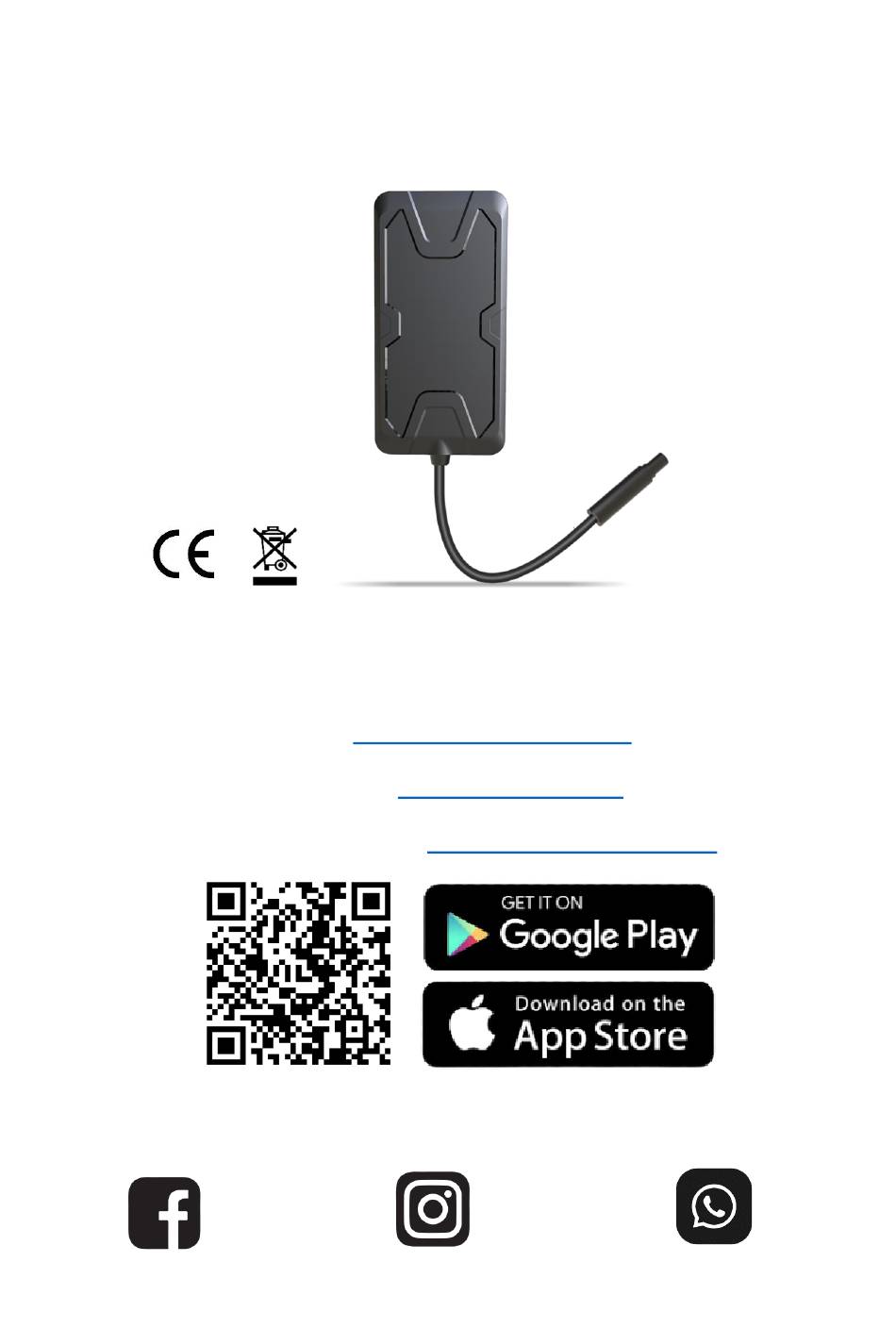

- Page 1 C41 GPS Tracker (User Manual) Email: support@lncoon.com Website: www.lncoon.com Tracking Platform: lncoon.com/download @Lncoon WhatsApp Group @lncoon.gps...
-
Page 2: Table Of Contents
Content List Appearance ..................3 Install Device ..................3 Download App ................... 7 Sign up & Log in ................. 8 Add Device ..................9 Top up ..................... 11 Insert & Power on ................11 Ensure Device Online ............... 12 Status Indicator ................12 Device Inactive ................................ -
Page 3: Appearance
Appearance Power Switch Power Indicator (Red) GPS Indicator (Blue) GSM Indicator (Green) SIM Slot Back Cover Install Device ⚫ Wire Definition: Black Power - (Negative) Power + (Positive) Relay Yellow Remote Fuel Cut Orange Engine Detection ⚫ How to connect: 1. - Page 4 positive of the car battery, and the black end to the negative. If the device is powered on successfully, the red LED will light up. (When the engine is turned on, a 12V voltage can be detected with a multimeter between the positive and negative) 3.
- Page 5 (iii)Connect the green (30) end to the end of the oil pump wire near the oil pump. (iv)Connect the yellow end to the yellow end of the relay to ensure the fuel cut-off works correctly.
- Page 6 C41 wiring diagram ⚫ Red and black wires power on the device, and other wires correspond to different optional functions, please connect according to your needs. ⚫ Please refer the installation steps to someone familiar with the vehicle's electrical circuit, if you can’t install it yourself.
-
Page 7: Download App
Download App ⚫ Search “Lncoon” in App Store Google Play download. ⚫ Visit Lncoon website: Lncoon.com/download to find quick download link. -
Page 8: Sign Up & Log In
Sign up & Log in ① ② ③ ④ ⑥ ⑤ ⚫ Click Sign Up ① Choose your country or region ② Enter a valid email address ③ Click ‘→’ to get a verification code from noreply@track9999.com trash spam * (If no email received, please check the ④... -
Page 9: Add Device
Add Device Add Device Scan Barcode Find the IMEI barcode on package or device 1. Click the ‘+’ on the top right to add device. 2. Scan or type in the IMEI number on the package or device body. - Page 10 3. Click ‘Add Device’ to confirm. 4. Edit basic info about this device, or click on ‘Save’ directly to skip this step. 5. You can always come back and edit in the ‘Detail’ Page later. Edit...
-
Page 11: Top Up
1. Go to ‘List’, you will see the device you just bind. 2. Click the ‘Top-up’ icon, or go to plan.lncoon.com 3. Type in and check the ICCID is matching the ICCID on the back of the package and confirm to top up. -
Page 12: Ensure Device Online
Ensure Device Online 1. Go to ‘List’, you will see the C41 you just bind. 2. You can tell the status of the device via the color of the icons. 3. When the icons displayed in green orange or red, it means the device is online. -
Page 13: Get Help
Get Help ⚫ Live chat with us by clicking the service icon ⚫ Email: support@lncoon.com ⚫ Messenger us on Facebook: m.me/lncoon ⚫ WhatsApp: +86 188 3978 7338 ⚫ Check the FAQ Library on website: lncoon.com/FAQ... -
Page 14: App Instruction
App Instruction ⚫ Bottom Menu Map Page Device List Alerts Report Account Setting ⚫ Console Menu 1. Tapping the icon to check the device. 2. Tapping the button to expand the menu. Device Status Last Location Console Menu Note: If there is no map display, please install Google Maps app. -
Page 15: Real Time Tracking
Real Time Tracking ⚫ Tapping on ‘Tracking’ to enter tracking page. Map Type Show Traffic Street View Locate Car Show the Address Share Location Device Status... -
Page 16: History Playback
History Playback Select the time period and click "OK" ⚫ Click ‘Playback’ to search the historical trips. Calendar Report Driving Behavior Count Play & Pause Speed up Hide / Show the line Choose another period... -
Page 17: Geo Fence
Geo Fence Add Fence ⚫ Click ‘Geo Fence’ to manage your customized fences. ⚫ Search Landmark Set Radius Rename Fence Alert Trigger Option Confirm Create Fence... -
Page 18: Alert Setting
Alert Setting ① Find your device in the list page, click on the icon. ② Go to ‘Command’ page to set alerts based on different situations. ③ Explore more setting options to design your own tracking style. Setting Tag Setting Options Parameters Click to send ⚫... -
Page 19: Faq
There is no device on the map, only a blue dot shows the location of my phone. 1. Make sure the device is fully charged and powered on; 2. Make sure you have a valid subscription plan; 3. Check the "List" page to make sure the device is online; *(The icon in red, orange or green means it is online) 4. -
Page 20: Set Apn
2. Then text the command to the SIM card in the device via SMS: APN,name# e.g.：APN: mobiledata Then send: APN,mobiledata# (No spaces between) 3. If C41 received the command, it will reply “OK”. 4. If the APN is correct, the C41 will be activated. -
Page 21: Led Indicators
LED Indicators (1) Power Status (Red) Status Meaning On for 0.3s; Off for 0.3s Low Power On for 1s; Off for 0.3s Fully Charged On for 0.1s; Off for 0.3s Working Correctly Solid On Charging Power is disconnected / Battery runs out (2) GPS Status (Blue) Status Meaning...
