Operating instructions

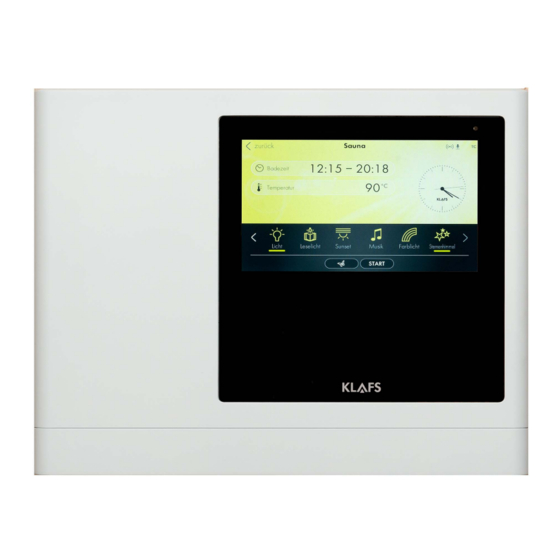

KLAFS SANARIUM M, S, B, Fero S with controller
model 21033, 21040 T
90 °C
60 °C
40 °C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SANARIUM M and is the answer not in the manual?

Questions and answers

Related Manuals for Klafs SANARIUM M

Summary of Contents for Klafs SANARIUM M

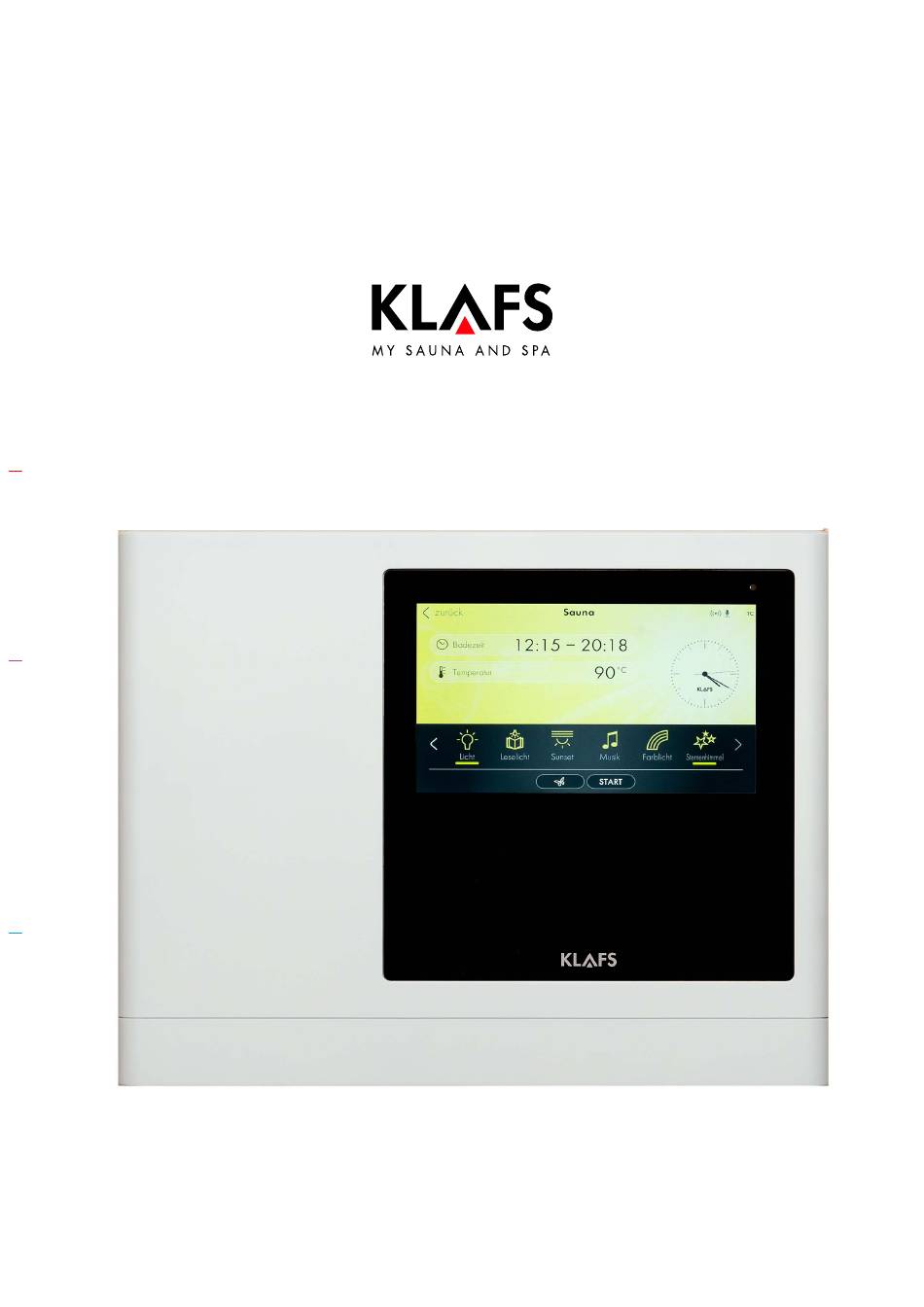

  • Page 1 Operating instructions KLAFS SANARIUM M, S, B, Fero S with controller model 21033, 21040 T 90 °C 60 °C 40 °C...

  • Page 2: Table Of Contents

    CONTENTS Quick reference guide - SANARIUM controller Bathing mode 2.1. Sauna 2.2. SANARIUM 2.3. InfraPLUS (optional) Technical data Intended use 90 °C Safety precautions for infrared emitter General safety precautions Controller 7.1. Operating and display elements 7.2. Touchscreen 7.3. Touchscreen - Basic operation and display symbols 60 °C 7.4.
  • Page 3 Remote power-on unit (optional) 9.8. Interior display (optional), with SaunaP button 9.9. Green Sauna button (optional) 9.10. SANARIUM M - Preparing the evaporator 60 °C 9.11. SANARIUM B - Commissioning the evaporator 9.12. SANARIUM S - Preparing the evaporator 9.13.
  • Page 4 Rectifying faults, resetting error messages Cleaning and maintenance 12.1. Cleaning the sauna cabin 12.2. Cleaning the touchscreen 12.3. SANARIUM M - Decalcifying the evaporator 60 °C 12.4. SANARIUM B - Decalcifying the evaporator 12.5. SANARIUM S - Evaporator 12.6. Evaporator - Change the scent container 12.7.

  • Page 5: Quick Reference Guide - Sanarium Controller

    QUICK REFERENCE GUIDE - SANARIUM CONTROLLER The KLAFS SANARIUM controller enables you to operate your SANARIUM quickly and easily. There are numerous pre-programmed standard programs available for each bathing mode. Any changes made to the standard program settings are saved in a custom program (last setting).

  • Page 6: Bathing Mode

    BATHING MODE All bathing modes in your KLAFS SANARIUM have been designed to improve your general health and well-being. However, you should still take into account any pre-existing health conditions when choosing your bathing program. This includes: Temperature Relative humidity 90 °C...

  • Page 7: Sanarium

    2.2. SANARIUM Soft steam bath a gentle and humid bath with temperatures of 48 - 60 °C and an absolute humidity of up to 72 g/m Tropical bath with temperatures of up to 75 °C and an absolute humidity of up to 72 g/m The temperature and the absolute humidity are controlled by a microprocessor controller in both 90 °C bathing modes.

  • Page 8: Technical Data

    TECHNICAL DATA Controller model 21033, 21033 T: 3/N/PE 400 V - 50/60 Hz, max. 9 kW. Controller model 21040 T: 3/N/PE 400 V - 50/60 Hz, max. 20 kW. Room conditions: Temperature 0 °C to 40 °C, max. 80% relative humidity. Controller model 21040 T: 3/N/PE 400 V - 50/60 Hz, max.

  • Page 9: Safety Precautions For Infrared Emitter

    0.03 A with a contact gap of at least 3 mm. residual-current circuit breaker I Please contact KLAFS customer service in case of a fault. Remote operation (remote power-on unit): Setting, controlling and/or adjusting the controller using a command or a remote control unit that is outside the range of vision of the sauna heater.
  • Page 10 Never use undiluted essential oils. Only use the indicated concentration (approx. 20 - 30 drops of oil in one litre of water). Only use KLAFS essential oil extracts. Never store the bottle containing the essential oil inside the sauna cabin.

  • Page 11: Controller

    CONTROLLER 7.1. Operating and display elements 90 °C 60 °C Item Description Controller main switch. The main switch switches off the mains power to the controller. The clock in the controller has a power reserve for a few months in the event of a power failure.

  • Page 12: Touchscreen

    7.2. Touchscreen Section Session. See page 15. Bathing mode. See page 15. Status bar. 90 °C Display only, no touchscreen function. The symbol display depends on the configuration. Back Sanarium See page 16. 19:00 - 22:00 Bathing time Clock. Temperature See page 17.

  • Page 13: Touchscreen - Basic Operation And Display Symbols

    7.3. Touchscreen - Basic operation and display symbols Example Symbol: Display/function: The control panel must be switched on at the main switch. See page 22. Operate the control panel by pressing on the touchscreen with your finger. The touchscreen is divided into display sections and function symbols. Functions are activated by pressing the symbols displayed.
  • Page 14 7.3. Touchscreen - Basic operation and display symbols Example Symbol: Display/function: Symbols highlighted in colour. E.g. duration, temperature or numerical value. Pressing the field selects or activates the function. Active/selected (1). Not active (2). 90 °C Switches a function on/off. Pressing the function selects it and highlights it in colour.

  • Page 15: Touchscreen - Section 1: Sessions

    7.4. Touchscreen - Section 1: Sessions Title line of the current window. Status bar. Display only, no touchscreen function. The symbol display depends on Bathing mode the configuration. Programs by type of See page 16. Sauna bathing 90 °C Programs by effect Sanarium Clock.

  • Page 16: Touchscreen - Section 3: Status Bar

    7.6. Touchscreen - Section 3: Status bar Symbol: Display/function: The status bar is for display only and has no touchscreen functions. The symbol display depends on the configuration. WLAN is installed and activated. The dot inside the symbol indicates that a WLAN module is installed. The waves appear if there is a connection between the controller and a router.

  • Page 17: Touchscreen - Section 4: Clock

    7.6. Touchscreen - Section 3: Status bar Symbol: Display/function: The controller is in Service mode. The TOUCHCONTROL is connected. The Climate Manager is connected and in operation. The Climate Manager automatically controls the speed of the fan. 7.7. Touchscreen - Section 4: Clock 90 °C Symbol: Display/function:...

  • Page 18: Touchscreen - Section 5: Extras

    7.8. Touchscreen - Section 5: Extras Symbol: Display/function: The symbol display depends on the configuration. Tips. View interesting information about and tips on using the sauna. Clues Switches the cabin light on/off. See page 23. 90 °C Light Switches Sunset on/off. To change the setting, see page 74.
  • Page 19 7.9. Touchscreen - Section 6: P bathing mode, Start/Stop, cabin control, Green Sauna Symbol: Display/function: Option: P bathing mode. Only available with the Sauna bathing mode. When the P symbol appears, the cabin has reached the correct temperature for the P bathing mode and it can be switched on.
  • Page 20 Performs a visual precheck of the inside of the cabin to ensure that there are no flammable objects near the sauna heater or the infrared heater. The cabin may only be started via the KLAFS Sauna app if this visual check has been carried out after the last sauna session.

  • Page 21: Touchscreen - Section 6: Pur Bathing Mode, Start/Stop, Cabin Control, Green

    Carry out a visual precheck of the inside of the cabin to ensure that there are no flammable objects near the sauna heater or the infrared heater. The cabin must only be started via the KLAFS Sauna app if this visual check has been carried out after the last sauna session.

  • Page 22: Basic Functions And Settings

    BASIC FUNCTIONS AND SETTINGS 8.1. Switching the power supply on/off at the main switch Switching the power supply on Press the touch key (1). The controller goes into standby mode. In standby mode, the display shows the bathing mode that was last selected. 90 °C When the controller is switched on, the following symbols are displayed: Settings for...

  • Page 23: Switching The Cabin Light On/Off

    8.2. Switching the cabin light on/off With the unit switched off at the main switch, press the button (1). Or press the symbol (2) if the controller is switched on. Press the Off/On symbol (3) and apply the change by touching the screen (4).

  • Page 24: Setting The Language

    8.3. Setting the language Press the "Settings" symbol (1). Touch the "Language" line (2). Settings Back The sub-menu for setting the language appears. Language Time Pairing Bluetooth Lock control Water hardness ASC PIN Activation ALEXA Servicemenu SONSTIGES 90 °C Clues Settings Light Select your preferred language (3).

  • Page 25: Setting The Time

    8.4. Setting the time Press the "Settings" symbol (1). You can set the time by pressing Settings Back the analogue clock. Language Time Pairing Bluetooth Touch the "Time" line (2). Lock control Water hardness ASC PIN The sub-menu for setting the time appears. Activation ALEXA Servicemenu SONSTIGES...

  • Page 26: Pairing A Bluetooth Device (E.g. Smartphone, Tablet)

    8.5. Pairing a Bluetooth device (e.g. smartphone, tablet) The AudioRelax system (optional) is Bluetooth-enabled. Pairing a Bluetooth device with the AudioRelax system allows you to listen to music through the speakers inside the cabin. Once a Bluetooth device has been detected for the first time, the AudioRelax system saves it in a list 90 °C...
  • Page 27 8.5. Pairing a Bluetooth device (e.g. smartphone, tablet) The following example shows how to pair a device with the controller: Activate the Bluetooth function (3) on your Bluetooth device. 90 °C Your Bluetooth device will display a list of all 60 °C available Bluetooth devices nearby.

  • Page 28: Standby Mode

    8.6. Standby mode The touchscreen displays the following symbols in standby mode: Go back to the menu screen (1) Currently selected or last selected bathing mode (2) Back Sanarium Bathing parameters (3) Bathing time Time (4) 90 °C Temperature Extras (5) (depending on cabin Humidity equipment) Start/Stop (6)

  • Page 29: Setting The Water Hardness

    8.7. Setting the water hardness Requirement: Ask your water supplier about your area's water hardness in order to set the correct settings on the control panel. Press the "Settings" symbol (1). Touch the "Water hardness" line (2). Settings Back The sub-menu for setting the water hardness 90 °C Language Time...

  • Page 30: Operation

    OPERATION 9.1. Activating/deactivating the turboheat function Thanks to the turboheat function, the cabin's warm-up period is shortened for a spontaneous sauna session. Activating the turboheat function Pull the turboheat lever (1) 90 °C downwards. The flap (2) tilts upwards. 60 °C Deactivating the turboheat function When entering a cabin that is ready for use, deactivate the...

  • Page 31: Sauna Mode

    9.2. Sauna mode Risk of fire! Before commissioning the controller, always ensure that there are no flammable objects near the sauna heater or infrared heater in the cabin. To enjoy a sauna, empty the evaporator water tank. See pages 55, 58, 59 - Decommissioning the evaporator. On models with a key switch (optional), changes to bathing parameters in the sauna cabin must be confirmed by pressing the key switch within 30 minutes.
  • Page 32 9.2. Sauna mode Starting Sauna mode The background colour (2) changes to blue during the heat-up phase. The sauna starts Back Sauna with the bathing parameters that were set for Bathing time the last program used. Temperature The sauna heater switches on and the cabin heats up.

  • Page 33: Pur Bathing Mode

    9.3. bathing mode The P bathing mode is only available with the Sauna bathing mode. Starting P bathing mode To start the P bathing mode, the Sauna bathing mode must be started and the cabin must reach the preset temperature. 90 °C Once the preset temperature has been reached, the P...

  • Page 34: C 9.4. Sanarium Mode

    9.4. SANARIUM mode Risk of fire! Before commissioning the controller, always ensure that there are no flammable objects near the sauna heater or infrared heater in the cabin. On models with a key switch (optional), changes to bathing parameters in the sauna cabin must be confirmed by pressing the key switch within 30 minutes.
  • Page 35 9.4. SANARIUM mode Starting SANARIUM mode The background colour (2) changes to blue during the heat-up phase. The sauna starts with the bathing parameters that were set for Sanarium Back the last program used. Bathing time The sauna heater switches on and the cabin Temperature heats up.
  • Page 36 9.4. SANARIUM mode Automatic follow-on program (1) after ending SANARIUM mode On models with wall-mounted air Back extractor control: Set air extractor Final drying opening to position 4. If SANARIUM was used for more than ten minutes, the follow-on 90 °C program will start automatically after ending the program.

  • Page 37: Infraplus Mode (Optional)

    9.5. InfraPLUS mode (optional) Risk of fire! Before commissioning the controller, always ensure that there are no flammable objects near the sauna heater or infrared heater in the cabin. On models with a key switch (optional), changes to bathing parameters in the sauna cabin must be confirmed by pressing the key switch within 30 minutes.
  • Page 38 9.5. InfraPLUS mode (optional) Starting InfraPLUS mode Step inside the cabin and put the backrest into position: Raise the backrest, swing it out and then set it down on the bench. Place a towel down where you will sit. 90 °C Sit down in front of the infrared heater with a naked upper body.
  • Page 39 9.5. InfraPLUS mode (optional) Restarting InfraPLUS mode Convenience function After the application has run, simply remain seated. After 1 minute, the Badeform InfraPLUS starts up again automatically. The remaining program time will 90 °C be displayed. 60 °C Ending the InfraPLUS mode Infrared Back Press the STOP symbol (3).
  • Page 40 9.5. InfraPLUS mode (optional) Option: Automatic follow-on program (1) after using InfraPLUS mode On models with wall-mounted air Back extractor control: Set air extractor Final drying opening to position 4. If InfraPLUS was used for more than 10 minutes, the follow-on program will start automatically 90 °C after the program ends.

  • Page 41: Blockade Control Unit (Keypad Lock)

    9.6. Blockade control unit (keypad lock) Removing "blockade control unit" (keypad lock) Touch the screen (1). The screen for entering your security code will appear. Back Sanarium Enter the four digits using the 19:00 - 22:00 Bathing time keypad (2). The digits will appear 90 °C Temperature in the line above (3).

  • Page 42: Remote Power-On Unit (Optional)

    9.7. Remote power-on unit (optional) Cabin light LED. Bathing mode LEDs. Cabin light button H, for switching the Indicates the selected bathing cabin light on/off. mode. 90 °C Mode button G, for selecting bathing mode. The remote power-on unit is available as an optional extra. Please see delivery documents for scope of supply.
  • Page 43 9.7. Remote power-on unit (optional) Switching bathing session on/off Risk of fire! Before commissioning the controller, always ensure that there are no flammable objects near the sauna heater or infrared heater in the cabin. Switch on the main switch on the controller. Press the mode G button.
  • Page 44 9.8. Interior display (optional), with Sau button SaunaP bathing mode LED active/inactive. Seven-segment display. SaunaP button. Start/stop the bathing mode. Sauna - time Sauna - actual temperature 90 °C SANARIUM - actual humidity Program end final drying Temperature for SaunaP bathing mode not yet reached Display function The four-digit seven-segment display alternates between the following:...

  • Page 45: Interior Display (Optional), With Saunap

    9.8. Interior display (optional), with SaunaP utton UR B Starting the SaunaP bathing mode Prerequisite: The temperature must be reached. The symbol must be shown on the display. If necessary, start the Sauna bathing mode, see page 31. It is possible to start the Sa bathing mode using the controller or on the interior display (optional).

  • Page 46: Green Sauna Button (Optional)

    9.9. Green Sauna button (optional) Back Sanarium Symbol (2) Green Sauna 19:00 - 22:00 active operating Bathing time status. Temperature 90 °C Humidity Sunset Colour light Light Clues Music Symbol (1) Green Sauna. STOP The Green Sauna function is switched on automatically after switching on the power 60 °C supply for the sauna cabin.

  • Page 47: Sanarium M - Preparing The Evaporator

    9.10. SANARIUM M - Preparing the evaporator Filling the evaporator Fill the evaporator when it is cold. The maximum fill capacity is 9 litres. Topping up the evaporator Topping up the evaporator when it is hot: The temperature difference causes mechanical stress in the tank, which may become apparent due to a noise when topping up.
  • Page 48 9.10. SANARIUM M - Preparing the evaporator Risk of fire! Do not fill the aroma cup on the heater. Remove the aroma cup (4) from the steam outlet (6) with the aroma fork (5). Pour diluted scent into the aroma cup.
  • Page 49 9.10. SANARIUM M - Preparing the evaporator Risk of fire! Do not place the herbal pillow (4) on the hot stones. Only use herbal pillows recommend by KLAFS. Adding the herbal pillow (optional) 90 °C Remove the herbal pillow holder (1) from the steam outlet (3) with the aroma fork (2).

  • Page 50: Sanarium B - Commissioning The Evaporator

    9.11. SANARIUM B - Commissioning the evaporator Filling the evaporator Only fill the evaporator when it is cold. Fill with the water quantity required for the intended bathing time. Do not put any additives into the water. 90 °C Close the drain valve (1) - turn the drain valve to the left.

  • Page 51: Sanarium S - Preparing The Evaporator

    9.12. SANARIUM S - Preparing the evaporator Open the angle valve (1) for the water inlet. Switch on the illuminated switch (2) on the evaporator. Once the evaporator is ready, the green OPERATION LED lights up. If the yellow or red LED (3) lights 90 °C Carry out maintenance as described on page 92.

  • Page 52: Fero S - Preparing The Evaporator

    9.13. Fero S - Preparing the evaporator Filling the evaporator Fill the evaporator when it is cold. The maximum fill capacity is 9 litres. Topping up the evaporator Topping up the evaporator when it is hot: The temperature difference causes mechanical stress in the tank, which may become apparent due to a noise when topping up.
  • Page 53 9.13. Fero S - Preparing the evaporator Risk of fire! Do not fill the aroma cup on the heater. Adding scent to the aroma cup Remove the aroma cup (4) from the steam outlet (6) with the aroma fork (5). 90 °C Pour diluted scent into the aroma cup.
  • Page 54 9.13. Fero S - Preparing the evaporator Risk of fire! Do not place the herbal pillow (4) on the hot stones. Only use herbal pillows recommend by KLAFS. Adding the herbal pillow (optional) 90 °C Remove the herbal pillow holder (1) from the steam outlet (3) with the aroma fork (2).

  • Page 55: Sanarium M - Decommissioning The Evaporator

    9.14. SANARIUM M - Decommissioning the evaporator Drain the water after every bathing session. Danger of scalding! The residual water will be hot straight after a session has finished. SANARIUM M - draining residual water 90 °C Place the filler can (1) under the drain (2).
  • Page 56 9.14. SANARIUM M - Decommissioning the evaporator Danger of scalding! Immediately after the bathing session, the aroma cup is still hot. Danger of scalding! The herbal pillow holder will be hot straight after a session has finished. Emptying the aroma cup 90 °C...

  • Page 57: Sanarium B - Decommissioning The Evaporator

    9.15. SANARIUM B - Decommissioning the evaporator Drain the water after every bathing session. Danger of scalding! The residual water will be hot straight after a session has finished. Draining residual water 90 °C Place the filler can (1) under the drain (2). Open the drain valve (3) - turn the drain valve to the right.

  • Page 58: Sanarium S - Decommissioning The Evaporator

    9.16. SANARIUM S - Decommissioning the evaporator Decommission the evaporator when it is not in use for prolonged periods of time. If the yellow or red LED (1) lights up: Carry out maintenance as described on page 92. Close the angle valve (2) for the water inlet.

  • Page 59: Fero S - Decommissioning The Evaporator

    9.17. Fero S - Decommissioning the evaporator Drain the water after every bathing session. Danger of scalding! The residual water will be hot straight after a session has finished. Fero S - Draining the residual water 90 °C Place the filler can (1) under the drain (2).
  • Page 60 9.17. Fero S - Decommissioning the evaporator Danger of scalding! Immediately after the bathing session, the aroma cup is still hot. Danger of scalding! The herbal pillow holder will be hot straight after a session has finished. Emptying the aroma cup 90 °C Remove the aroma cup (4) from the steam outlet (6) with the aroma...

  • Page 61: Custom Settings

    CUSTOM SETTINGS 10.1. Programs by type of bathing Each bathing mode offers the last bathing program you used (with your custom settings) and special programs with preset bathing parameter settings that cannot be changed. Any changes made to bathing parameters are saved automatically. If the personalised bathing parameter settings are the same as the settings in one of 90 °C the standard programs, the standard program is automatically selected.
  • Page 62 Specially strong, dry heat 60 °C and very intensive infusions Start the selected program by ensure a particularly strong Temperature sauna experience. pressing the symbol (6). KLAFS wishes you a great experience! Sunset Colour light Light Clues Music START 40 °C...

  • Page 63: Programs By Effect

    10.2. Programs by effect Each bathing mode offers the last bathing program you used (with your custom settings) and special programs with preset bathing parameter settings that cannot be changed. Any changes made to bathing parameters are saved automatically. If the personalised bathing parameter settings are the same as the settings in one of the standard programs, the standard program is automatically selected.
  • Page 64 Bathing time Specially strong, dry heat Start the selected program by and very intensive infusions ensure a particularly strong pressing the symbol (6). Temperature sauna experience. KLAFS wishes you a great experience! Clues Music Sunset Colour light Light START 40 °C...

  • Page 65: Setting The Bathing Time

    10.3. Setting the bathing time Risk of fire Before commissioning the controller, always check that there are no inflammable objects on or near the sauna heater. If the slider is at the far left, the selected bathing mode will start immediately. In preset time mode (start time in the future), the length of the last heat-up phase is subtracted.

  • Page 66: Setting The Temperature

    10.4. Setting the temperature Changing the temperature Press the Temperature line (1) to activate it. The Temperature line (1) changes the Bathing mode Sanarium background colour. 19:00 - 22:00 Bathing time Use the +/- buttons or the slider (2) Temperature to set the temperature (3) you 90 °C require.

  • Page 67: Setting The Sanarium Humidity

    10.5. Setting the SANARIUM humidity The humidity can only be set in SANARIUM mode. Changing the humidity Press the Humidity line (1) to activate it. Bathing mode Sanarium The Humidity line (1) changes the background colour. 90 °C 19:00 - 22:00 Bathing time Use the +/- buttons or the slider (2) Temperature...

  • Page 68: Setting Infraplus (Optional)

    10.6. Setting InfraPLUS (optional) Changing the intensity and running time of the infrared heater Press the Intensity line (1) to activate it. Bathing mode Infrared The Intensity line (1) changes the background 19:00 - 22:00 colour. Bathing time Temperature Use the +/- buttons or the slider (2) 90 °C to set the intensity you require.

  • Page 69: Music

    10.7. Music Selecting and switching on music Press the Music symbol. Select the track you want (1) by pressing the </> buttons. Use the +/- buttons or the slider (3) to set the volume (2) you require. Moving the slider to "on" 90 °C starts the music automatically and closes the screen.

  • Page 70: Assigning A Pin To The Controller (Optional)

    ASC PIN Any four-digit number can be used as your PIN except for Temperature "1111" and "2222", which have already been allocated to KLAFS. Humidity 40 °C The lock will be activated when you switch on the controller and once the bathing session has ended.
  • Page 71 (8) flashing. Once the activation process is complete, the WLAN symbol (8) stops flashing and remains lit. The KLAFS WLAN module is now ready to be configured. To configure the KLAFS WLAN module, see 60 °C the installation instructions with the item number 5060108/5060109.

  • Page 72: Enabling/Disabling "Blockade Control Unit" (Locking/Unlocking The Keypad)

    Water hardness ASC PIN 60 °C Activation ALEXA Servicemenu SONSTIGES Clues Settings Light Any four-digit number can be used as your PIN except for "1111" and "2222", which have already been allocated to KLAFS. 40 °C Page 72 / 96...
  • Page 73 10.9. Enabling/disabling "blockade control unit" (locking/unlocking the keypad) Enabling "blockade control unit" (keypad lock) Create and note down a custom security code (four-digit number). Enter the four digits using the keypad (5). The digits will appear in the line above (6). Press 90 °C button (7) to delete a number if you enter the wrong one.

  • Page 74: Extras

    10.10. Extras Switching extras on Back Sanarium The number of symbols displayed 19:00 - 22:00 Bathing time depends on the functions and Temperature features of the cabin. Humidity Press the relevant symbol, e.g. (1). The extra is switched on. The green light bar (3) indicates 90 °C Sunset Colour light...
  • Page 75 10.10. Extras Switching on and configuring adjustable extras You can change the settings of adjustable extras (1) using the +/- buttons or the slider (2). Sanarium Back Setting the adjustable extras (1) to Bathing time 0 switches them off. 90 °C Temperature Apply the change by touching the screen (3).

  • Page 76: Extras: Coloured Light

    10.11. Extras: Coloured light Setting the coloured light Press the Colour light symbol. The display for setting the coloured light appears. Press the switch (1) to change the Sanarium Back coloured light settings manually. Bathing time The menu below allows you to Temperature 90 °C adjust the following settings:...

  • Page 77: Vent Flap For Airing And Ventilating The Cabin (Optional)

    Vent flap for airing and ventilating the cabin (optional) Correct airing and ventilation ensure an optimum climate. The KLAFS vent wall with adjustable vent flap (optional) allows you to regulate the air flow rate. Ventilation: Heating mode Vent flap, level 1 There is only a low air flow at this setting.

  • Page 78: If Something Does Not Work

    Repairs and maintenance must only be carried out by KLAFS service engineers or by technicians expressly authorised by KLAFS. customerservice@klafs.de. KLAFS can only provide repairs and servicing work under warranty if this work is carried out by KLAFS service engineers.
  • Page 79 Remove the object from the grille above the sauna 90 °C heater. Check whether the grille has been removed. Fit the grille in place. SANARIUM M: Service required, decalcify the Service the evaporator. evaporator. SANARIUM M: See page 87. If the water hardness is set to 0 °dH, When the controller is in standby, reset error 92 the error message 92 will not appear.

  • Page 80: Other Possible Errors

    Fuse SI4 or SI5 has blown. Replace fuse SI4 (1.6 AT) or SI5 (2.5 AT) or contact KLAFS service engineers. customerservice@klafs.de The LED on the humidity There is no water. Fill the M, B, S, Fero S evaporator with water.
  • Page 81 The fan is not working. No mains power. Check the residual-current circuit breaker and the fuse in the power supply. Fuse SI4 has blown. Replace fuse SI4 (1.6 AT) or contact KLAFS service engineers. customerservice@klafs.de The fan is defective. Replace the fan.
  • Page 82 The evaporator must be serviced. Service the evaporator. evaporator lights up See page 92. The steam cylinder is worn. (SANARIUM S). The inlet pump is faulty. Contact KLAFS service engineers. customerservice@klafs.de The drain pump is faulty. Only with The scent container is empty. Replace the scent container.
  • Page 83 11.2. Other possible errors Fault Cause Remedy The sauna heater does not additional option (key) Remove flammable objects from heat up (when controlled appears in the display for the sauna heater. via TOUCHCONTROL or 30 minutes. Within 30 minutes of requesting sauna heater Central Building Control output on the TOUCHCONTROL or CBC, CBC).
  • Page 84 Switch on the main switch on the Starry Sky switched on. light projector is switched off. light projector. The fuse at AG1 or AG2 has Contact KLAFS service engineers. blown. customerservice@klafs.de Starry sky Check the fuse at AG1 or AG2 and then replace if necessary.

  • Page 85: Rectifying Faults, Resetting Error Messages

    11.3. Rectifying faults, resetting error messages Notice: Only allow work on electrical components/assemblies to be carried out by qualified electricians who work in accordance with electrical rules and regulations. Switch the controller off, disconnect it from the mains and make sure that it cannot be switched on again.

  • Page 86: Cleaning And Maintenance

    CLEANING AND MAINTENANCE 12.1. Cleaning the sauna cabin The high humidity in SANARIUM mode does not damage the wood of your cabin. A prerequisite is that the cabin is well ventilated after use and the drying phase is completed. Never use a hose or pressure washer on the inner cabin walls, benches or seats. 90 °C Dirty benches Wipe the wooden surfaces with a damp cloth.

  • Page 87: Sanarium M - Decalcifying The Evaporator

    12.3. SANARIUM M - Decalcifying the evaporator Risk of chemical burns! There is a risk of chemical burns to eyes and skin when handling decalcifiers. Always follow the instructions on the package insert. SANARIUM M - Preparing the decalcifying liquid...
  • Page 88 12.3. SANARIUM M - Decalcifying the evaporator SANARIUM M - Rinsing Close the drain valve (3). Fill the evaporator's filling unit (1) with fresh water. Place the filler can (2) under the drain (4). Open the drain valve (3). 90 °C Close the drain valve (3) again after draining the evaporator.

  • Page 89: Sanarium B - Decalcifying The Evaporator

    12.4. SANARIUM B - Decalcifying the evaporator SANARIUM B - draining Place the filler can (1) under the drain. Open the drain valve (2). Close the drain valve (2) again after draining the evaporator. Drain the filler can (1). SANARIUM B - decalcifying 90 °C Fill the filler can (1) with approximately 4 litres of water.
  • Page 90 12.4. SANARIUM B - Decalcifying the evaporator SANARIUM B - Rinsing Close the drain valve (2). Fill the evaporator's filling unit (3) with water. 10. Place the filler can (1) under the drain. Open the drain valve (2). 11. Close the drain valve (2) again 90 °C after draining the evaporator.
  • Page 91 12.4. SANARIUM B - Decalcifying the evaporator 14. In standby mode, clear the error Settings Back message by pressing symbol (4). Language Time Pairing Bluetooth The message "Error 92" for Lock control Water hardness ASC PIN evaporator maintenance will be reset.

  • Page 92: Sanarium S - Evaporator

    12.5. SANARIUM S - Evaporator Notice: Only allow work on electrical components/assemblies to be carried out by qualified electricians who work in accordance with electrical rules and regulations. SANARIUM S - evaporator cylinder The service life of the steam cylinder is dependent on: The operating time 90 °C...

  • Page 93: Evaporator - Change The Scent Container

    12.6. Evaporator - Change the scent container The scent container (1) is located on the control panel next to the evaporator. Shake the scent container well before replacing it. Remove the hose from the empty scent container. Remove the empty scent container 90 °C from the bracket.

  • Page 94: Fero S - Decalcifying The Evaporator

    12.8. Fero S - Decalcifying the evaporator Risk of chemical burns! There is a risk of chemical burns to eyes and skin when handling decalcifiers. Always follow the instructions on the package insert. Fero S - Preparing the decalcifying liquid To decalcify the evaporator, prepare 3 litres of water with decalcifier in a bucket.
  • Page 95 12.8. Fero S - Decalcifying the evaporator Fero S - Rinsing Close the drain valve (4). Fill the evaporator's filling unit (2) with fresh water. Place the filler can (3) under the drain. Open the drain valve (4). Close the drain valve (4) again 90 °C after draining the evaporator.
  • Page 96 ÖSTERREICH | SONNWIESENWEG 19 | A-6361 HOPFGARTEN/TIROL TELEFON +43 (0)5335 23 30-0 | FAX +43 (0)5335 23 30-36 | INFO@KLAFS.AT | WWW.KLAFS.AT SCHWEIZ | OBERNEUHOFSTRASSE 11 | CH-6340 BAAR TELEFON +41 (0)41 760 22 42 | FAX +41 (0)41 760 25 35 | BAAR@KLAFS.CH | WWW.KLAFS.CH...

This manual is also suitable for:

Sanarium sSanarium bFero s2103321040 t
