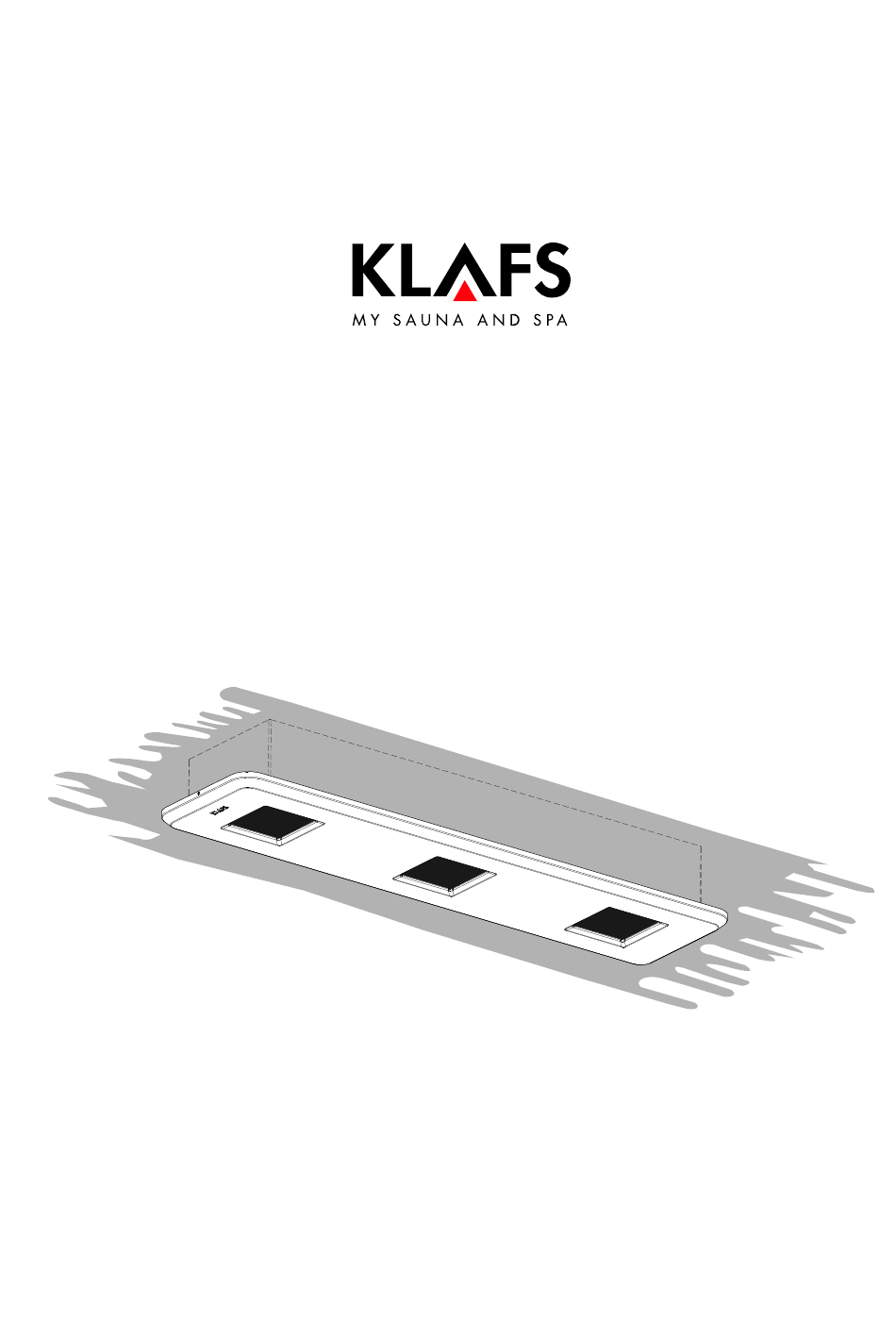

- Page 1 Operating instructions SONNENWIESE Kollagen...
-
Page 2: Table Of Contents
Information about light simulation ......Specifications only for technicians and Klafs professionals - Installing the equipment ........ -
Page 3: Safety Instructions
Maintenance, repair and similar work is only to be carried out by KLAFS customer service or by their authorized representatives. The device may only be operated by persons who are familiar with the control system and are aware of the risks involved. The relevant accident prevention regulations and other generally recognized industrial health and safety regulations must be observed. -
Page 4: Prior To Commissioning
The following notices regarding UV rays are required on the basis of TÜV certification. The unit is tested according to the standard for sunbeds. With the filters defined by Klafs, the UV proportion is less than that of sunrays in the Mediterranean region. - Page 5 SONNENWIESE Kollagen Safety instructions 1.8. Dangers Continued Warning! Only use the device after seeking medical advice. Non-users, particularly children, must not be present when the device is switched on. The device should not be used by persons: Under the age of 18...
- Page 6 SONNENWIESE Kollagen Safety instructions 1.8. Dangers Continued Note 1: The recommended exposure time for the initial test radiation of untanned skin must comply with a dose that does not exceed 100 J/m , weighted in accordance with the action spectrum for UV erythema or based on the result of a test on a limited surface area of the skin.
-
Page 7: Data For The Device User - Operation
SONNENWIESE Kollagen Data for the device user - operation 2.1. Starting a light-simulation session Note the timetable. Never use the device if you are sunburnt. Close your eyes when sunbathing and always wear the safety glasses provided. People who have had eye-lens surgery must protect their eyes by wearing safety glasses. -
Page 8: Data For The User - Commissioning
SONNENWIESE Kollagen Data for the user - Commissioning 3.1. Important information! Do not commission faulty devices. Observe the maximum permissible ambient temperature (max. 35 °C), otherwise the device can overheat and be switched off by the temperature limiter. Therefore, ensure there is a sufficient fresh-air supply in the room. -
Page 9: Maintenance
Do not carry out any procedure that may impair the safety of the device. Use a safe ladder. Only order original spare parts from your specialized dealer or directly from KLAFS. No liability can be assumed if any other devices are fitted, other than the original high-intensity lamps or ignition device. -
Page 10: Removing/Fitting The Dust Cover
SONNENWIESE Kollagen Maintenance 5.2. Removing/fitting the dust cover Caution! Before starting maintenance or repair work, disconnect the device from the power supply. Removing the dust cover Using both hands, lower the dust cover by 90 degrees (3/2). Remove the two screws (3/2) and remove the dust cover. -
Page 11: Moving The Device Into The Maintenance/Operating Position
SONNENWIESE Kollagen Maintenance 5.3. Moving the device into the maintenance/operating position Caution! Before starting maintenance or repair work, disconnect the device from the power supply. Moving the device into the maintenance position Remove the four wire cables (4/2) from the clamp hooks (4/1). -
Page 12: Maintenance Of The High-Intensity Lamps
Operating-hour meter One Klafs special collagen filter disk and one transparent filter disk is placed in front of each high-intensity lamp. Continued on the next page PAGE 12 5000518/11.19... -
Page 13: Breaksafe
If one of these transparent filter disks (6/3) breaks, the electric circuit is interrupted and the device can only be restarted once the transparent filter disk (6/3) has been replaced. The Klafs special collagen filter disks (6/4) must be visually inspected. - Page 14 Caution! When assembling: The Klafs special collagen filter disk is fitted on the user side, the transparent filter disk is fitted on the lamp side. Insert the two filter disks as shown in Fig. 6 and Fig. 7.
-
Page 15: Filter Mats
SONNENWIESE Kollagen Maintenance 5.5. Filter mats 5.5.1 Replacing the filter mats Air to cool the device is fed into the entrance of the devices through micro filter mats. Lint, hair, dust particles, etc., are filtered out there, so that interior components, such as lamps, only need to be cleaned at longer intervals. -
Page 16: Chain Of Safety Features
SONNENWIESE Kollagen Maintenance 5.6. Chain of safety features The device is equipped with a chain of safety features, including a timer switch, a safety-time-out feature, BREAKSAFE and a temperature limiter. The internal timer switch (K2/K4) is set ex-works to 20 minutes. After 20 minutes, the device switches off automatically. -
Page 17: Tips For Eliminating Smaller Faults
Device and lamps The Solarium and all fluorescent lamps, high-intensity lamps and lighting lamps are hazardous waste material. Do not dispose of it together with domestic refuse. KLAFS, or one of the disposal companies designated by KLAFS, can dispose of the device. -
Page 18: Information About Light Simulation
The skin's light-simulated regeneration processes - i.e. changing the skin's structure - are not dependent on skin colour or type. Please read the instructions carefully. These specifications refer to a distance of 2 m between the SONNENWIESE and the lounger. The distance may be reduced (up to ³ 1.6 m). Please note: These recommendations refer to the standard lamp configuration as per the operating instructions. -
Page 19: Specifications Only For Technicians And Klafs Professionals
B25 concrete ceiling - of up to approx. 3.5 kN (350 kg). The ceiling must have an appropriate load-bearing capacity. Ideally, the distance between the lounger surface and the SONNENWIESE should be 2 m. If there is a smaller or larger distance for construction reasons, please ensure that the optimal times are reduced or extended. -
Page 20: Installation And Ceiling Requirements - Housing Assembly
SONNENWIESE Kollagen Specifications only for technicians and Klafs professionals - Installing the equipment 9.1. Installation and ceiling requirements - Housing assembly Fitting to the ceiling As standard, the device is delivered with the cover plate (10/1) mounted on top. For a ceiling installation, the air-outlet cover plate (10/1) is mounted on top, pointing downwards. - Page 21 SONNENWIESE Kollagen Specifications only for technicians and Klafs professionals - Installing the equipment 9.1. Installation and ceiling requirements - Housing assembly Continued Caution! It is absolutely essential that the eye bolts (11/2) are 70 mm 60 mm tightened against the nut (11/3).
- Page 22 SONNENWIESE Kollagen Specifications only for technicians and Klafs professionals - Installing the equipment 9.1. Installation and ceiling requirements - Housing assembly Continued Adjusting the device's height Using the unblocking tool (12/5), press and hold the flange (12/3) of the wire-cable holder. Push the wire-cable holder (12/4) and thereby the device along the wire cables towards the ceiling.
-
Page 23: Electrical Connection - Configuration
SONNENWIESE Kollagen Specifications only for technicians and Klafs professionals - Installing the equipment 9.2. Electrical connection - Configuration The connection must only be established by a qualified electrician in accordance with the valid DIN VDE regulations, as well as accident prevention regulations. - Page 24 SONNENWIESE Kollagen Specifications only for technicians and Klafs professionals - Installing the equipment 9.2. Electrical connection - Configuration Continued 9.2.1 Connecting the device Adjusted time The run-time of the coin-operated timer or external timer switch max. 20 min. must match the time set via the K2/K4 time relay on the device max.
-
Page 25: Setting A Shorter Operating Time
SONNENWIESE Kollagen Specifications only for technicians and Klafs professionals - Installing the equipment 9.2. Electrical connection - Configuration Continued 9.2.2 Setting a shorter operating time Caution! Only a qualified electrician may make the adjustment. Disconnect the device from the mains. -
Page 26: Coin-Operated Timer
The time set on the K3 internal safety timing relay must not exceed 22 minutes. Service chute There are two service chutes (see Fig. 17) on the back of the SONNENWIESE for carrying out maintenance and repair work. PAGE 26 5000518/11.19... -
Page 27: Technical Data, Wiring Diagram, Installation Plans
We recommend replacing the high-intensity lamp after approx. 750 operating hours. Lamp cover The UV radiation sources are covered with a Klafs special collagen filter disk on the user side and a transparent 316 filter disk on the lamp side. - Page 28 SONNENWIESE Kollagen Technical data, wiring diagram, installation plans Wiring diagram PAGE 28 5000518/11.19...
- Page 29 SONNENWIESE Kollagen PAGE 29 5000518/11.19...
- Page 30 SONNENWIESE Kollagen PAGE 30 5000518/11.19...
- Page 31 SONNENWIESE Kollagen Technical data, wiring diagram, installation plans Installation plans for concrete ceiling, timber-beam ceiling SONNENWIESE installation variation, concrete ceiling S Coin−operated timer, Supply line 1/N/PE ~ 230 V S External timer switch Fuse B 16 A S Push button via FI I £...
-
Page 32: Addresses
Sonnwiesenweg 19 A-6361 Hopfgarten/Tirol Tel. +43 5335 2330-0 We hope that your ”SONNENWIESE Kollagen” always gives you the fun, well-being, relaxation and recuperation that you deserve. Subject to technical modifications. Reproduction in whole or in part is prohibited without the written permission of KLAFS GmbH &...
