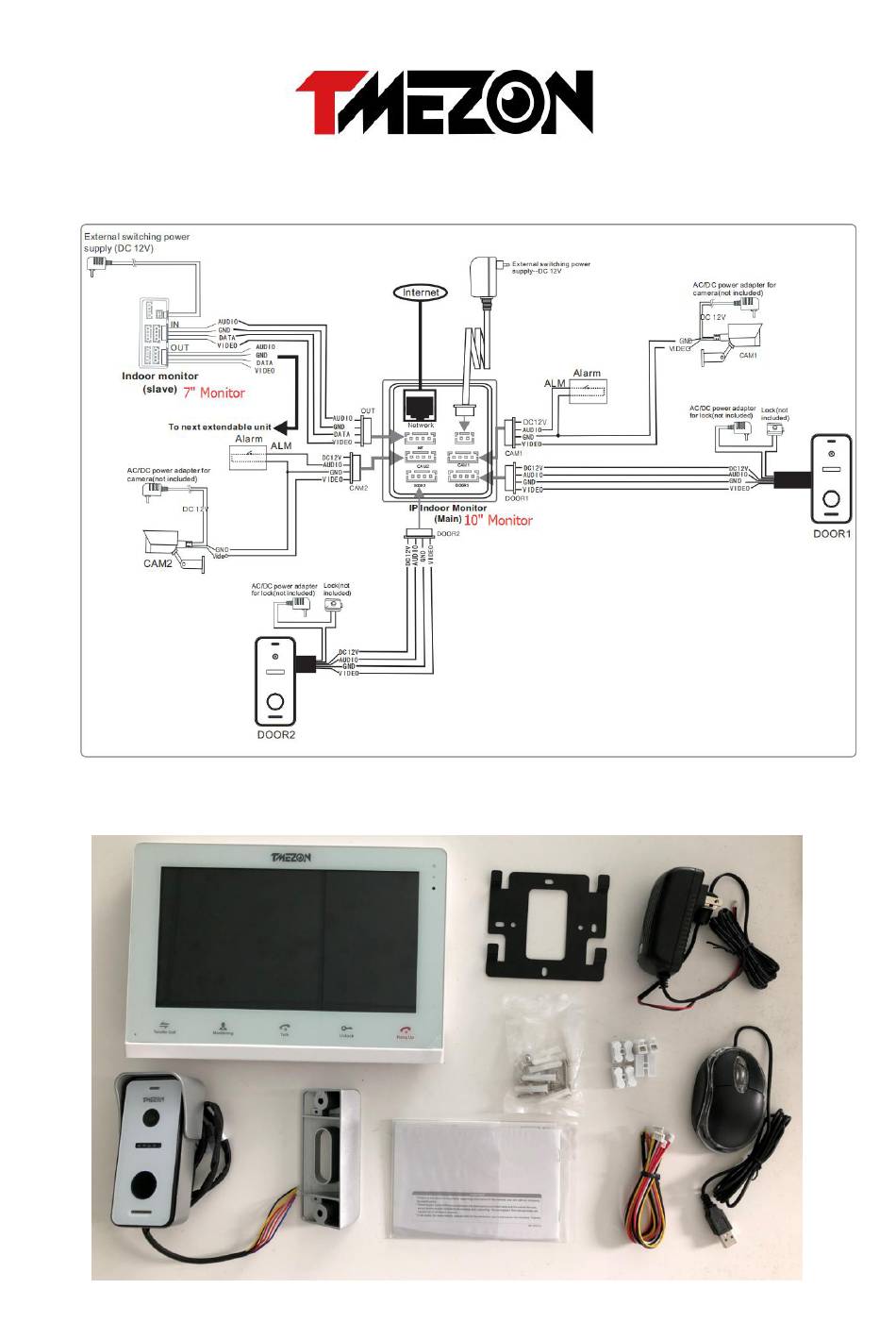

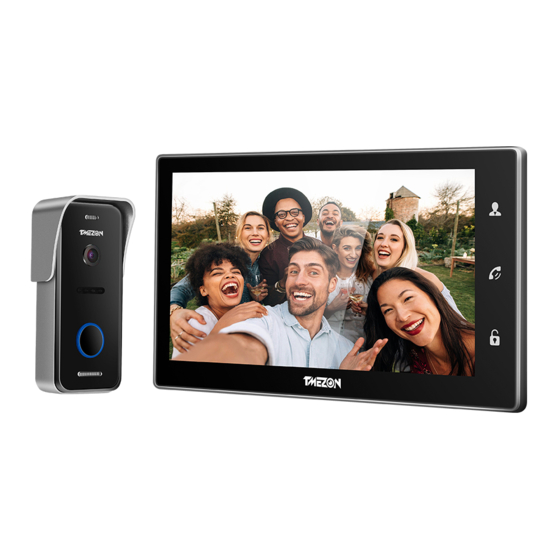

- Page 1 Wiring Diagram for MZ-IP-V103W+MZ-VDP-NA100 1. What is in the box? Zhuhai Tmezon Technology Co Limited...
- Page 2 (2) The blue and brown wire use to connect the electronic lock. (3) The red&white cable is use to connect a additional security camera,not for the doorbell.You can ignore it. (4) Connect the power adapter to the 12V port. Cables of doorbell Zhuhai Tmezon Technology Co Limited...
- Page 3 Connect the yellow/red/white/black wires Please note these white terminals are use for quick installation or test the products. It is better for you use the more stable terminals in the actual installation and use. Zhuhai Tmezon Technology Co Limited...
- Page 4 Ring,video is worked,can not as Red cable for Light off,not ring talk mistake How to connect the App for MZ-IP-V103W? How to connect the electronic lock? (See the manual in the box) Zhuhai Tmezon Technology Co Limited...
- Page 5 You can use the RVV4(4 core cable) or cat5/cat6 to extend the distance between the monitor-doorbell,or monitor-monitor. If you want to extend the distance over 50m,even 100m, it is better for you choose a thick core cable. -------------------------------------------------------------------------------------------------------------------------------- (1) RVV4 (4 core cable) as extension cables Zhuhai Tmezon Technology Co Limited...
- Page 6 If your 4 core cable doesn’t built with the white terminal,you can connect with the 4 pin connector we provided in the box and then connect to the monitor or doorbell and extend their distance. 4 pin connector Zhuhai Tmezon Technology Co Limited...
- Page 7 Connect to monitor and doorbell with RVV4 cable(4 core cable) (2) Cat5,cat6 network as extension cables Cut the RJ45 port Zhuhai Tmezon Technology Co Limited...
- Page 8 There are 8 wires(4 pairs) in the cat5/cat6, we let two wires twisted into one cable to use. Green+green&white, Orange+orange&white, Blue+blue&white, Brown+brown&white Connect with the 4 pin connector,please make sure the both ends of 4 wires connections are consistent. Zhuhai Tmezon Technology Co Limited...
- Page 9 Connect to monitor and doorbell with cat5/cat6 cable 4. Connect Multiple Monitor: MZ-IP-V739+MZ-VDP-738EM (1).What’s in the box?(MZ-VDP-738EM) Zhuhai Tmezon Technology Co Limited...
- Page 10 (2).Connect 2 monitor without extension cable for test (3).Connect 2 monitor with RVV4(4 core cable) extension cable (4).Connect 2 monitor without cat5/cat6 extension cable Zhuhai Tmezon Technology Co Limited...
- Page 11 1. Connect the 2 monitors via the extension cable from MZ-VDP-738EM “IN” port. 2. The MZ-IP-V103W is the wifi IP monitor and it is master monitor. The MZ-VDP-738EM is slave monitor, we need to set the mode as “slave” in its system.
- Page 12 Power up--click the side button to enter the MZ-VDP-738EM system---Mode Note: The ALARM, DOOR and CAM functions are all invalid when Slave monitor is changed to Slave Mode,other functions work properly. Zhuhai Tmezon Technology Co Limited...
- Page 13 Finished If you have any further question about our products,welcome to contact us. Support@tmezon.com Zhuhai Tmezon Technology Co Limited...
