Statement
* If there is any doubt or disputable regarding information in this manual, you can call our company for
clarification.
* There maybe some differences between the descriptions provided here and the actual devices, as our
products are constantly developing and upgrading. We apologize if this manual does not contain all of the
latest updates.Thanks.

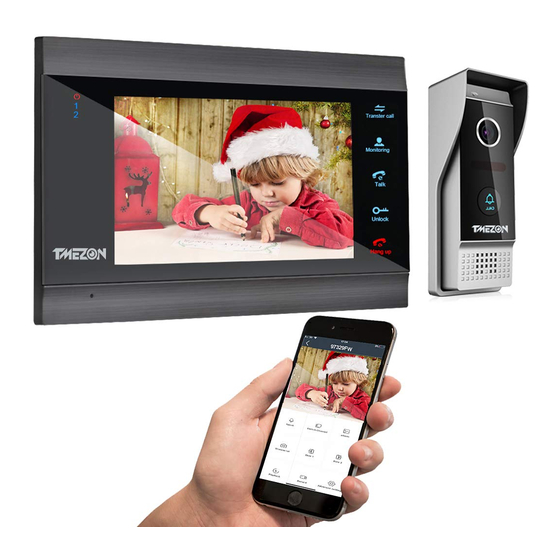

MC-1482 A-4
4-Wire IP Video Door Phone
User Maunal

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MZ-IP-V739W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TMEZON MZ-IP-V739W

Summary of Contents for TMEZON MZ-IP-V739W

  • Page 1 4-Wire IP Video Door Phone User Maunal Statement * If there is any doubt or disputable regarding information in this manual, you can call our company for clarification. * There maybe some differences between the descriptions provided here and the actual devices, as our products are constantly developing and upgrading.
  • Page 2 We provide all-day mail service. Please send ※ Here is the link for the video to show how to email to: support @tmezon.com connect the indoor monitor and uCareHome APP: https://youtu.be/bpsnpDI8BkQ...

  • Page 3: Limitation Of Liability

    ※ LIMITATION OF LIABILITY The doorbell/camera units should be fitted with an approved weather shield if the chosen position is in direct sunlight, or in contact with rain, snow or irrigation sprinkler systems. ※ This users' manual is supplied 'as is', with no warranties, be it expressed or implied, including, ※...

  • Page 4: Table Of Contents

    Table of Contents Table of Contents 5.3.2 Network--DDNS .................35 LIMITATION OF LIABILITY..................1 5.3.3 Network--E-mail.................35 DISCLAIMER OF WARRANTY.................1 5.3.4 Network--Wifi..................36 SAFETY INSTRUCTIONS..................1 5.3.5 Network--Motion Detect..............37 CARING FOR THE ENVIRONMENT BY RECYCLING..........2 5.3.6 Event--Press doorbell capture ............39 COPYRIGHT STATEMENT..................2 5.3.7 Event--Record..................39 Table of Contents ....................3 5.4 System.......................

  • Page 5: Description Of The Indoor Monitor

    1. Description Of The Indoor Monitor 1.3 Note On Wiring Connection 1.1 Fittings The electric lock and power supply of electric lock are not included in the package, you can purchase an electric lock which is suitable for your need. For IP 7’’...
  • Page 6 Note ※ The indoor monitor with built-in power supply can be connected directly to the plug or connected to the power box via the 2-pin cable we provided. If your 4 core cable doesn’t built with the white terminal, you can connect with the 4 pin connector we provided ※...

  • Page 7: Specifications

    You will need 1.6 Description On Indoor Monitor Monitoring 1 Monitoring 2 Talk To install the indoor monitor, please follow these steps as below: Unlock Hang up Surface mount Descriptions Name Screw anchors Bracket Connection cable The power indicator of the indoor mnitor, and the indicator will be Power LED flashing in AP mode.

  • Page 8: Operation Introduction On Indoor Monitor

    “RING 1” and “RING 2”, press this button to move the cursor, scroll this button to adjust values, scroll the button Both the visitor’s voice and image will be not switched off within 20s of time span upwards to increase, and scroll the button downwards to decrease. The values of the brightness, contrast and when the unlock button is pressed, this individualized function allow you to make color are all set at from 0 to 60.
  • Page 9 ◆ INTERNAL COMMUNICATION AMONG INDOOR UNIT NOTICE: If you are using only one outdoor camera in monitoring mode, you can also end the At least 2 indoor units is required monitoring mode by pressing the hang up button. Please note that if you are using two outdoor cameras, but it appears a blank display when Standby mode you are activating the monitoring mode on either of indoor units, to completely solve this accident, please pull out all power supply of indoor unit and then plug in power supply back...

  • Page 10: System Settings For Indoor Monitor

    2. System Settings For Indoor Monitor 2.2 AP Mode Note: 1. No menus on the indoor monitor can be operated, so users should set up parameters What is AP Mode? for the indoor monitor via Web browser. 2. User can connect the device through web browser or mobile phone/tablet, and if 2.1 Mouse Control AP mode is the process of waiting for the WiFi to be set.
  • Page 11 Home Security Begins at the uCareHome Your new security products are start of uCareHome around your entire property. Now, you’ll always be connected to your home, so you can watch over your property and answer it from anywhere. Contents 1) Download uCareHome app............19 2) WiFi setting................19 3) Set up New Indoor Monitor............20-23 4) Set up Existing Indoor Monitor..........24...
  • Page 12 3. Set up IP Indoor Monitor 1.Download uCareHome app Step 1. Login the uCareHome app The uCareHome will walk you through setting up and managing your all security products. Search for “uCareHome” in one of the app stores, android in “Play Store”, and IOS in “App Store”. 2.WiFI setting Note: 1).
  • Page 13 Step 4. Connect to indoor monitor hotspot Step 6. Add the indoor monitor a. For android, it can be connected to the indoor monitor hotspot automatically. Name b. For IOS, you need connect manually. is the device name for your IP indoor monitor. Password is the device password for login your IP indoor monitor.
  • Page 14 3.1 The icons on live view 3.2 Add Existing Device Quality switch:HD/SD Name is the device name for your IP indoor monitor. Snapshot Password is the device password for login your IP indoor monitor. The default password is "888888". Record/Stop record Adjust volume of speaker/Microphone Video full screen display Connect/disconnect view...

  • Page 15: Reset

    3.5 Push Mode 3.3 System Setting Home mode is turn off all devices push function. Away Mode is turn on all devices push function. app system default is away mode. Custom Mode to optional control device push function. 3.6 Account Media Lock Time local storage.

  • Page 16: Web Browser Operation

    Press “LAN Search”: 3. Web Browser Operation 3.1 Running Environment Install the software through the Internet browser of OS to conveniently operate the network from a remote location. This device supports C/S, B/S, and access in LAN and WAN. It also supports IP and domain name visiting.

  • Page 17: System Login

    3.3 System Login 1) Open the web browser, and enter IP address “http://XXX.XXX.XXX.XXX”which can be searched by the app “uCareHome”. Note: If the device is connected to the WAN, the IP address should be a public IP address. The system will automatically enter the GUI as follows. After installing player on the PC, input the authorized user name and password, the default user name is “Admin”...

  • Page 18: Port Forwarding

    Note: Different router has different settings for port forwarding; please kindly follow your 4) After login, it will enter into “Home” interface of the live view as follows. router guide to do the port-forwarding. After the port-forwarding is done, you could view the indoor unit from WAN now. IPDoor 2015-03-25 11:20:08 5.

  • Page 19: Media

    4） Bit Rate Type: There are three modes for bit rate control, CBR, VBR and FixQp. If user : Adjust brightness of image. Values can be set from 0~100.By default, the choose CBR mode, the video encoder will encode according to the bit rate you have selected. value is set at 50.

  • Page 20: Network--Ddns

    A. LAN Settings [IP Type]: There are two options: “Fixed IP Address” and “dynamic IP Address”. After selecting an Internet connection setting - such as fixed IP address (static) or dynamic IP address (DHCP) – and allocating a port, users can access the indoor unit remotely via the Internet.
  • Page 21 Click “Parameters—Event—Motion Detect” to access the “Motion Detect” menu and the dialog window where Enable Switch, MD Area, Sensibility, E-Mail, Alarm Output and motion detection schedule settings can be set will be appear. 1) Status: “ ”indicates that the motion detection alarm of the login channel is enabled. 2) Sensibility: There are four levels: “very high”, “high”, “Normal”...

  • Page 22: Event--Press Doorbell Capture

    If users select “Work Mode”, click “ ” to access the interface as follows. Users can set 5.4.1 System-User up three different time period on workday and weekend, the max number of time span is 24. Click “System—user” to access user setting menu, the default username and password of administrator is “Admin”...

  • Page 23: System-Initialize

    5.4.4 System-Device Info 4) “Sync with NTP” will choose a same time zone with the NTP server automatically. Server name is the NTP server host, and the interval of refresh time includes 1 hour, 2 hours, 12 hours Click “System—Device Info” to enter the “Device Information” menu as follows. The information and 24hous.

  • Page 24: System-System Log

    Appendix 1. Accessing the indoor monitor via Mozilla Firefox 1.F irst, install Firefox on Windows(This document will use Firefox 28.0 as an example). 2. After installing Firefox, please search for the “IE Tab” add-on for Firefox, which can be downloaded from Firefox browser. 3.

  • Page 25: Appendix 3 How To Ensure Reliable Remote Viewing Of The Indoor Monitor Through Ie Browser On Win 7/Win 8 64Bit Os

    4. During installation, the following figure will appear, click “Add” to confirm to install “IE Tab” Appendix 3 How to ensure reliable remote viewing of the add-on. indoor monitor through IE browser on Win 7/Win 8 64bit OS 1. Run 32bit IE on Windows OS (64bit) Note: On a 64-bit version of a Windows operating system, there are two versions of the Internet Explorer files: * The 64-bit version is “C:\Program Files\ Internet Explorer \iexplore.exe”.
  • Page 28 NO Lock connection As for 2 pin cable, one cable connect to the Power DC+, another cable connect to one cable of the lock. The Power GND - connect to another cable of the lock. The Lock: DC 12V, it is supplied from an extra power supply or your power unit.

  • Page 29: Contact Us

    Video GND(-) DC(+) No matter how you connect the lock, the door lock has to be independently powered. Contact us Manufacturer:Zhuhai Tmezon Technology Co.,Limited ADD: No.6.Pingbei 2nd.Rd,Nanping Science and Technology Industrial Community, Zhuhai City,Guangdong,China Official Website: http://www.tmezon.com Technical Support: support@tmezon.com...
