Statement
* If there is any doubt or disputable regarding information in this manual, you can
call our company for clarification.
* There maybe some difference between the description provided here and the
actual devices, as our products are constantly developing and upgrading. We
apologize if this manual does not contain all of the latest updates. Thanks
OPERATION INSTRUCTION

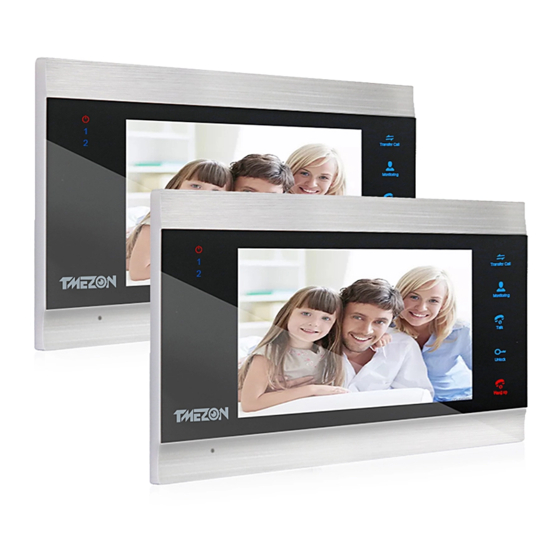

4-Wire Villa Video Intercom System
Indoor Monitor
User Manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TMEZON MZ-VDP-739EM
Summary of Contents for TMEZON MZ-VDP-739EM
-
Page 1: Operation Instruction
OPERATION INSTRUCTION 4-Wire Villa Video Intercom System Indoor Monitor User Manual Statement * If there is any doubt or disputable regarding information in this manual, you can call our company for clarification. * There maybe some difference between the description provided here and the actual devices, as our products are constantly developing and upgrading. - Page 2 ※ The doorbell/camera units should be fitted with an approved weather shield if the chosen LIMITATION OF LIABILITY position is in direct sunlight, or in contact with rain, snow or irrigation sprinkler systems. ※ Do not use strong or abrasive detergents when cleaning the appliance body. When the dirt is ※...
-
Page 3: Specification
Accessories Note: Please be far from the devices with intense radiation: TV, DVR, etc. Do not disassemble privately to avoid the electric shock. Do not drop, shake or knock the device, otherwise will damage the elements. Monitoring Talk Choose the best position to install, the horizontal view is 150cm. Unlock Hang up Please power down before installation. - Page 4 Note The indoor monitor with built-in power supply can be connected directly to the plug If your 4 core cable doesn’t built with the white terminal, or connected to the power box via the 2-pin cable we provided. you can connect with the 4 pin connector we provided The doorbell is supplied from Indoor Monitor.
- Page 5 Wiring connection according to the following to avoid interference: Power+ Video Power+ Video TV-out DC-IN AC/DC power Audio Audio AUDIO adapter for AUDIO External switching power supply DATA camera VIDEO VIDEO VIDEO WIRING DIAGRAM (DC 12V)--optional (not included) DOOR1 CAM 1 AUDIO AUDIO Slave...
-
Page 6: Operation Introduction
DESCRIPTION ON INDOOR MONITOR Descriptions Name Speaker Sound from outdoor camera. For the models with TF card, insert the TF card for video records, and photographs, supports up to 32GB. Video recoding files will be stored in Monitoring the TF card, photographs will be stored in the TF card of the indoor TF card slot Talk monitor firstly. - Page 7 Both the visitor's voice and image will not be switched off within 20s of time span when the 转呼功能 CALL TRANSFER TO OTHER EXTENSION unlock button is pressed, this individualized function allow you to make sure whether the visitor already come in. Internal communication function requires at least two indoor and one outdoor units to be connected.
-
Page 8: Set System Parameters
MENU OPERATIONS NOTICE The button “ ” is a three-in-one key, but also composite keys: In standby mode, press the button “ ” once to enter the main menu settings. In main English menu settings, scroll the button “ ” upwards or downwards to select sub-menu, then press “... - Page 9 [Format flash]: This option is to format built-in storage of the indoor monitor. [Ring Vol1]: the volume level of Ring Vol1: 00-10. [Backup pictures]: For the models with SD card, to backup the photos on the built-in [Ring Vol2]: the volume level of Ring Vol2: 00-10. storage device to SD card manually, and the photos stored on [Ring Vol3]: the volume level of Ring Vol3: 00-10.
- Page 10 [CAM 2 ring time]: The alarm ring time of camera 2 if camera 2 has been triggered by [Return]: Exit the current menu. activity detected by the sensor, values can be set from 0~30 4. Set the alarm parameters seconds. On main menu, move the cursor to the option “Alarm”, then press “...
- Page 11 6. Playback Options include “Record” and “Snapshot”. “Record” indicates that when [Store mode]: On main menu, move the cursor to the option “Files”, then press “ ” to enter the a motion detect alarm is triggered, it will activate the corresponding channel to start recording.
-
Page 12: Connection Diagram
The indoor monitor only supports the analog surveillance camera 960H, of which the resolution is 700 lines, 800 lines, 1000 lines. If you have any questions, please feel free to contact us, we will try our best to help you. Email: support@tmezon.com... - Page 15 NO Lock connection As for 2 pin cable, one cable connect to the Power DC+, another cable connect to one cable of the lock. The Power GND - connect to another cable of the lock. The Lock: DC 12V, it is supplied from an extra power supply or your power unit.
- Page 16 Audio Video GND(-) DC(+) No matter how you connect the lock, the door lock has to be independently powered. Contact us Manufacturer:Zhuhai Tmezon Technology Co.,Limited ADD: No.6.Pingbei 2nd.Rd,Nanping Science and Technology Industrial Community, Zhuhai City,Guangdong,China Official Website:www.tmezon.com Technical Support: support@tmezon.com...
