Summary of Contents for Siebert XC695 Series
- Page 1 Series XC695 Digital displays for work safety Operating instructions...
-
Page 2: Table Of Contents
Table of contents 1 Safety instructions Qualified staff..............................5 Grounding ................................5 EMV measures ..............................5 Disposal ................................6 2 Important information Copyright ................................7 Disclaimer ................................7 Liability ................................7 Cleaning ................................7 Display accuracy ..............................7 3 Overview Network settings in delivery state and network integration ................ - Page 3 12 Network resources 13 Technical data 14 Dimensions Series XC695/1 ..............................19 Series XC695/2 ..............................20 Series XC695/3 ..............................21 Special equipment weather protection hood ....................22 BAL XC695 1.00 3/22...
-
Page 4: Safety Instructions
Safety instructions Important information Read these operating instructions before starting the unit. They provide you with important information on the use, safety and maintenance of the units. This helps you to protect yourself and prevent damage to the unit. During the lifetime of the unit keep the operating instructions in an accessible place at all times. Hand over the operating instructions to any future owner of the unit. -
Page 5: Qualified Staff
Qualified staff The operating instructions are intended for trained professional electricians, familiar with the safety standards of electrical technology and industrial electronics. Components inside the unit are voltage-carrying during operation. For this reason mounting and maintenance work may only be performed by professionally trained personnel while observing the corresponding safety regulations. -
Page 6: Disposal
The cable shielding is to be connected at both cable ends. If equipotential bonding currents are expected due to the cable arrangement, electrical isolation is to be performed on one side. In this case, capacitive connection (approx. 0.1μF/600 V AC) of the shielding on the isolated side must occur. Disposal The unit is made of low-emission materials and is therefore recyclable. -
Page 7: Important Information
Copyright This documentation is protected by copyright. All rights are reserved. No part of this documentation may be translated without written permission by Siebert Industrieelektronik GmbH. No part of this documentation may be reproduced in any form by print, photocopy or other methods, or processed by using electronic systems, duplicated or disseminated. -
Page 8: Overview
Overview Network settings in delivery state and network integration To configure the display you need a PC with network card or an already configured network. Consult a member of your IT department for the integration of the display into your network, if possible. -
Page 9: Pc Software Xcplus Device Search
PC Software XCplus Device Search Siebert displays with XCplus Technology can be found in local networks using the XCplus Device Search PC software. For Windows computers, this method is the easiest in most cases. Access web page via XCplus Device Search First download the software 'XCplus Device Search' free of charge from the Siebert Homepage: https://www.siebert-group.com/de/product-xc50-downloads.php... -
Page 10: Call Via The Display Name
The service IP address can be changed by the user. However, it must always be one of the five alternatives mentioned. Thus, a display can always be found by trying out the five possible addresses. The service IP address can only be used if there is only one Siebert display in the network. -
Page 11: Log On To The Display
Log on to the display Now the start page of the display can be called via one of the described possibilities. The admin password in delivery state is: xc-admin If the website does not work, the reason could be that the display and the laptop have IP addresses in different networks. - Page 12 You can change the default IP address of the display under 'Settings/System'. BAL XC695 1.00 12/22...
-
Page 13: Data Input
Data input The data input is done via the web interface and can be reached via the menu 'Layout'. The menu items and the data input depend on the rights of the respective user. Simple data input: Layout / Input Under 'Layout / Input' you will find a preview of your display. -
Page 14: Meaning Of The Fields
Meaning of the fields ® Siebert XC-Boards are manufactured according to customer specifications. The following overview of the displayable fields may differ from your display. Click in the field of the display whose data you want to change. On the right side the properties of the field are listed and can be changed. -
Page 15: Paging Element
Paging element A paging element contains further elements that are displayed 'scrolled through' one after the other. The scrolling time can be changed in both, the simple and the extended input. You can change the properties of the elements that make up the paging element only in Advanced Input. -
Page 16: Factory Settings
Factory settings The displays are delivered with the following settings: Property Value Changeable Password for user See section user management IP addresse DHCP IP address without 169.254.6.90 DHCP Name of unit xc-display Service IP addresses 169.254.213.90/16 One out of five possible addresses As service IP address one of the five alternatives can be chosen: 10.20.6.90/24, 192.168.132.90/24, 192.128.20.10/24, 169.254.11.90/16, 169.254.213.90/16 Network resources... -
Page 17: Technical Data
Technical data Display Technology Brilliantly luminous LED dot matrix in SMD technology LED color scale Red, green, blue, yellow, cyan, magenta, weiss, turquoise, orange Equidistant fonts Metric 7 Regular, Metric 14 Regular Proportional fonts Aryana 7 Regular, Aryana 7 Bold, Aryana 14 Regular, Aryana 14 Bold, Aryana 14 Condensed Brightness adjustment Stepless via Web interface... - Page 18 Ambient conditions -25…50 °C Operating temperature -25…70 °C Storage temperaturer Relative humidity < 90 %, non-condensing BAL XC695 1.00 18/22...
-
Page 19: Dimensions
Dimensions The following figures show the dimensions of the displays (dimensions in mm). Series XC695/1 Numerical display for the number of accident-free days Text display for individual information Individual graphic design XC695/1 - Housing sheet steel powder-coated Housing stainless steel powder-coated Ethernet control Control WLAN Coding of the graphic (done in the factory) -
Page 20: Series Xc695/2
Series XC695/2 Numerical display for the number of accident-free days Additional numerical display for another key figure of your choice from the accident statistics Text display for individual information Individual graphic design XC695/2 - Housing sheet steel powder-coated Housing stainless steel powder-coated Ethernet control Control WLAN Coding of the graphic (done in the factory) -
Page 21: Series Xc695/3

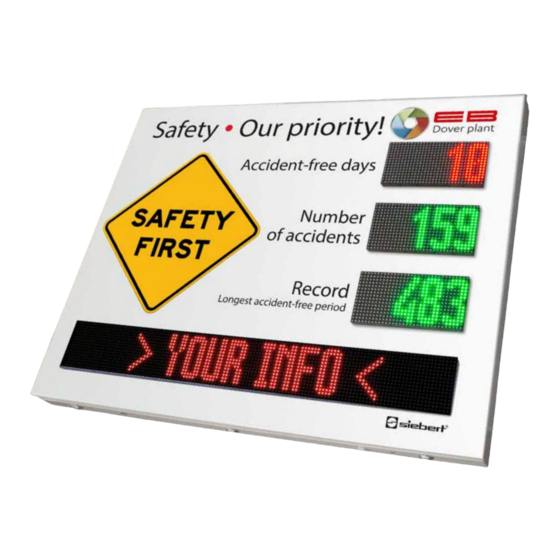

Series XC695/3 Numerical display for the number of accident-free days Two additional numerical displays for further key figures of your choice from the accident statistics Text display for individual information Individual graphic design XC695/3 - Housing sheet steel powder-coated Housing stainless steel powder-coated Ethernet control Control WLAN Coding of the graphic (done in the factory) -
Page 22: Special Equipment Weather Protection Hood
Special equipment weather protection hood The following figure shows a display with weather protection hood (dimensions in mm, weight of weather protection hood approx. 5 kg). BAL XC695 1.00 22/22...
