- Page 1 User Manual LSUM 086R4C 0093F EA www.lsmaterials.co.kr www.lsmaterials.co.kr...
- Page 2 User Manual LSUM 086R4C 0093F EA History Version Date Change Description Author SW Son 29 . Aug . 2016 First version SW Son 07 . Aug . 2018 Temp. monitoring (NTC Thermistor->PT100) SH Kim 26 . Nov . 2021 New format www.lsmaterials.co.kr...
-
Page 3: Table Of Contents
User Manual LSUM 086R4C 0093F EA CONTENTS …………………………………… 1. Overview ……………………… 2. Identification of features ……………………………………. 3. Unpacking ……………………………………. 4. Safety 5. Module to module connection …………………….. 6. Output terminal connection ……………………….. ……………………… 7. Output connector …………………………………..8. Mounting …….……………………….. -
Page 4: Overview

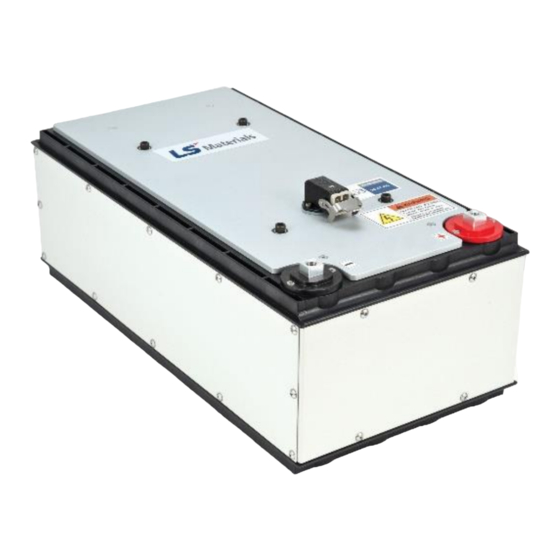

LSUM 086R4C 0093F EA 1. Overview The LS 86.4V / 93F Ultracapacitor Module has high energy and low ESR to meet energy storage and power delivery requirements. The cells used in the module have 2.7 V maximum voltage rating and are connected in series to get higher operating voltage of modules. -
Page 5: Unpacking
User Manual LSUM 086R4C 0093F EA 3. Unpacking Inspect the shipping carton for signs of damage prior to unpacking the module. Damage to the shipping carton or module should be reported to the carrier immediately. Remove the module from the shipping carton and retain the shipping materials until the unit has been inspected and is determined to be operational. -
Page 6: Module To Module Connection
User Manual LSUM 086R4C 0093F EA 5. Module to module connection - There are series and parallel connection for High power <Fig. 2> Series Connection of Modules <Fig. 3> Parallel Connection of Modules. www.lsmaterials.co.kr www.lsmaterials.co.kr... -
Page 7: Output Terminal Connection
LSUM 086R4C 0093F EA 6. Output terminal connection The LS 86.4V / 93F Ultracapacitor Modules are designed to connect directly to a ring or a bus bar. The positive and negative terminals have each hole for the screw. The positive terminal threaded size is M8 and negative terminal is M10. Wave washers are required to ensure long term, reliable connections. - Page 8 - Pin 3-4 is connected with a PT100 sensor for temperature monitoring. According to temperature variation in the module, the resistance of the thermistor is determined. - The mating monitoring connector is not supplied by LS. For recommendation, please refer to following table below, and the web page..
-
Page 9: Mounting
User Manual LSUM 086R4C 0093F EA 8. Mounting The modules should not be mounted in locations where they are directly exposed to the environment. (1) Fixing the module with mechanical pressure. - Impose mechanical pressure on the top, bottom and each side into designated space to fix the module. - Page 10 User Manual LSUM 086R4C 0093F EA Bolt(M6 length over 200mm) This picture is for reference only and the bolt is not included. Spring Washer Flat Washer <Fig. 6> Step 2 <Fig. 7> Mounting Positions www.lsmaterials.co.kr www.lsmaterials.co.kr...
-
Page 11: Maintenance
User Manual LSUM 086R4C 0093F EA 9. Maintenance Power Rating If the applied voltage is over rated voltage, charging the module should be stopped. And the allowable low voltage level of the module depends on the user’s requirements, but full discharging to 0V does not affect the module performance. -
Page 12: Appendix Ⅰ
User Manual LSUM 086R4C 0093F EA Appendix Ⅰ www.lsmaterials.co.kr www.lsmaterials.co.kr... - Page 13 User Manual LSUM 086R4C 0093F EA Appendix Ⅰ www.lsmaterials.co.kr www.lsmaterials.co.kr...
-
Page 14: Appendix Ⅱ
User Manual LSUM 086R4C 0093F EA Appendix Ⅱ www.lsmaterials.co.kr www.lsmaterials.co.kr...
