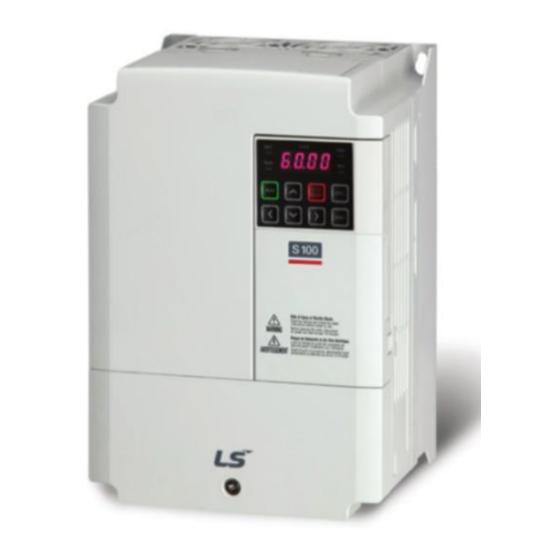

Thank you for using our S100 Profibus-DP Communication module
 Always follow safety instructions to prevent accidents and potential hazards
from occurring.
 Safety precautions are classified into "WARNING" and "CAUTION" and their
meanings are as follows:
WARNING
CAUTION
 The indicated illustrations on the product and in the manual have the
following meanings.
Danger may be present. Read the message and follow the instructions
carefully.
Particular attention should be paid because danger of an electric shock
may be present.
 Keep operating instructions handy for quick reference.
 Read the operating instructions carefully to fully understand the functions of
the S100 series and to use it properly.
 Be cautious, when handling the CMOS components of the
communication module.
Static may lead to malfunctioning of the product.
 Turn off the inverter power, when changing the communication cable.
Otherwise, you may damage the module or a communication error may occur.
 Make sure to insert the Communication module connector to the
inverter precisely.
Otherwise, you may damage the module or a communication error may occur.
 Check the parameter unit before setting up the parameter.
Otherwise, a communication error may occur.
Safety PRECAUTIONS
Improper operation may result in serious personal injury
or death.
Improper operation may result in slight to medium
personal injury or property damage
CAUTION
SAFETY PRECAUTIONS
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S100 and is the answer not in the manual?

Questions and answers

Summary of Contents for LS S100

  • Page 1 SAFETY PRECAUTIONS Thank you for using our S100 Profibus-DP Communication module Safety PRECAUTIONS  Always follow safety instructions to prevent accidents and potential hazards from occurring.  Safety precautions are classified into “WARNING” and “CAUTION” and their meanings are as follows:...
  • Page 2: Table Of Contents

    Table of Contents Table of Contents Chapter 1. Introduction ....................1 What is Profibus-DP Communication Module? ............. 1 Components ........................1 Chapter 2. Profibus-DP Communication Module ............2 2.1 Technical Specification of Profibus-DP Communication ..........2 2.2 Layout of Profibus-DP Communication Module ..............3 2.3 General Specification of Profibus-DP Connector ..............
  • Page 3: Chapter 1. Introduction

    Chapter1. Introduction Chapter 1. Introduction This Profibus-DP communication module allows the LSLV-S100 inverter to be connected to Profibus network. This module does not support IP66 products. 1.1 What is Profibus-DP Communication Module? A controlling and monitoring of inverter can be controlled by PLC sequence program or a Profibus Master Module.
  • Page 4: Chapter 2. Profibus-Dp Communication Module

    Chapter2. Profibus-DP Communication Module Chapter 2. Profibus-DP Communication Module 2.1 Technical Specification of Profibus-DP Communication Device Type Profibus DP Slave Auto Baud rate Supported Detect Synchronization Supported Mode Freeze Mode Supported Max. Input Length 8 words Max. Output 8 words Length 9.6K, 19.2K, 93.75K, 187.5K, 500K, 1.5M, 3M, Baud rate Support...
  • Page 5: Layout Of Profibus-Dp Communication Module

    Chapter2. Profibus-DP Communication Module 2.2 Layout of Profibus-DP Communication Module Figure 1 Profibus-DP Communication Module...
  • Page 6: General Specification Of Profibus-Dp Connector

    Chapter2. Profibus-DP Communication Module 2.3 General Specification of Profibus-DP Connector Figure 2 Profibus Connector PROFIBUS Signal Description Connector None None 24V output GND Transmitter/Receiver data RxD/TxD-P Plus CTRL-P Control signal for a repeater DGND Signal GND 5V for terminating resistance 24V output Plus Transmitter/Receiver data RxD/TxD-N...
  • Page 7: Installation

    If Profibus-DP communication module is removed or installed, the power supply should be switched off. Otherwise, the S100 inverter will be damaged entirely. Take off Profibus-DP communication module from the product after the power supply is totally discharged.
  • Page 8 Chapter2. Profibus-DP Communication Module ■ Mount Profibus-DP communication Module and fasten the removed screw(6) and the included screw(7). ■ Install the keypad (8) at first and the communication module cover(9) in order. ■ Install the front cover(10) again And installation is completed. (10)
  • Page 9: Network Cable Specifications

    Chapter2. Profibus-DP Communication Module 2.5 Network Cable Specifications Classification Description Conductor BC-Bare Copper Material Insulation PE-Polyethylene Material Insulation 0.035 inch Tension Inner Shield Aluminum Foil-Polyester, Material Tape/Braid Shield Electrostatic 8500pF/ft Capacity Specific 150Ω Impedance Total number 2 Core of Conductors Table 3 Network Cable Specifications...
  • Page 10: Maximum Distance According To The Baud Rate

    Chapter2. Profibus-DP Communication Module 2.6 Maximum Distance according to the Baud rate The total BUS length of a network configuration is differed according to the baud rate. The communication quality is not guaranteed when the total distance exceeds the total BUS length limit as below.
  • Page 11: Chapter 3. Status Diagnosis And Led Indication

    Chapter3. Status Diagnostic and LED Indication Chapter 3. Status Diagnosis and LED Indication 3.1 LED display feature The profibus DP Module has 3 kinds of LEDs, referring to the below table colored by LEDs for troubleshooting and diagnostics. ERROR ONLINE Figure 3 LED display Color Description...
  • Page 12: Led Information & Troubleshooting

    Chapter3. Status Diagnostic and LED Indication 3.2 LED information & Troubleshooting LED Status Module Status Cause Troubleshooting Check power supply. Check the Power supply inverter’s unplugged or malfunction. contact failure Failure in Check the between the power supply connection inverter and between Profibus-DP Profibus-DP...
  • Page 13 Chapter3. Status Diagnostic and LED Indication Check the Master’s configuration configuration Blinking every data set on Data is second CONFIG Master and different from (contrary to ERROR the internal Profibus-DP CPU LED) configuration module’s data at the configuration. inverter. Master doesn’t Start the work for communication...
  • Page 14 Chapter3. Status Diagnostic and LED Indication n module is the same as the station ID set from the keypad of inverter in Configuration tool and station ID is unique in the network. Check if it exceeds the length limit of segment.
  • Page 15: Chapter 4. Inverter Parameter

    Chapter4. Inverter Parameter Chapter 4. Inverter Parameter 4.1 Profibus-DP Communication Parameter List Code The name of Initial Range Definition Number Parameter Value Indicate the version of Profibus-DP CM-06 FBus S/W Ver communication module. Set up the station of CM-07 FBus ID 1 ~ 125 Profibus-DP module.
  • Page 16: Description Of Profibus-Dp Communication Parameters

    Chapter4. Inverter Parameter Code The name of Initial Range Definition Number Parameter Value CM-58 Para Control-8 0x0000 0~0xFFFF Update keypad 0:NO CM-94 Comm Update parameters relating to 1:YES communication. Table 7 Inverter Parameters 4.2 Description of Profibus-DP Communication Parameters 4.2.1 Version of Communication module It displays the version of Profibus-DP module installed on the inverter.
  • Page 17: Led Indication For Communication Status

    Chapter4. Inverter Parameter 4.2.3 LED indication for communication status Profibus-DP communication module has 3 LEDs, ONLINE, ERR, and CPU on the keypad in order from left to right. It indicates communication status by LED’s On/Off. (CM-05 Status Example) (ON) (OFF) Reserved ON-LINE ERR ON-LINE...
  • Page 18: The Number Of Para Status Setting

    Chapter4. Inverter Parameter 4.2.4 The number of Para Status setting CM-30 The number of Para Status setting CM-31 Para Status1~Status8 setting CM-38 CM-94 Comm Update This parameter determines how much status information will be sent to Master by an inverter through Profibus-DP communication. It can be set from 0 to 8.
  • Page 19: Para Status 1~8

    Chapter4. Inverter Parameter 4.2.5 Para Status 1~8 CM-30 Number of Para Status setting CM-31 Para Status1~Status8 setting CM-38 It determines that what status information will be sent to Master through Profibus-DP communication. Para Status 1~8 are set in the form of inverter address. They set up the address for the common inverter area and the inverter keypad parameter.
  • Page 20: Number Of Para Control Setting

    Chapter4. Inverter Parameter 4.2.6 Number of Para Control setting CM-50 Number of Para Control setting CM-51 Para Control 1 ~ Control 8 setting CM-58 CM-94 Comm Update It determines that how much control information will be sent to inverter by Master through Profibus-DP communication. It can be set up within the range of 0 to 8.
  • Page 21: Para Control 1~8

    Chapter4. Inverter Parameter 4.2.7 Para Control 1~8 CM-50 Number of Para Control setting CM-51 Para Control 1~Control 8 setting CM-58 It determines that what control information will be sent to inverter through Profibus-DP communication. Para Control 1 ~ 8 are set in the form of inverter address. They set up the address for the common inverter area and the inverter keypad parameter.
  • Page 22: Comm Update

    Chapter4. Inverter Parameter 4.2.8 Comm Update CM-07 Station ID setting CM-30 The number of Para Status setting CM-50 The number of Para Control setting CM-94 Comm Update After changing Station ID, the number of Para Status and the number of Para Control, set the Comm Update to ‘1’. The changed values will be applied to Profibus-DP communication module after setting Comm Update to ‘1’.
  • Page 23: Chapter 5. Gsd File (Electronic Data Sheets)

    Chapter 5. GSD File (Electronic Data Sheets) Chapter 5. GSD File (Electronic Data Sheets) GSD file contains the information of Profibus-DP communication module. The profibus configuration software needs GSD file. You can download GSD file from technical support on LSIS website. (http://www.lsis.com)
  • Page 25 IN-WARRANTY service information If the defective part has been identified under normal and proper use within the guarantee term, contact your local authorized LS distributor or LS Service center. OUT-OF WARRANTY service information The guarantee will not apply in the following cases, even if the guarantee term has not expired.
