Gill 7010 Quick Start Manual

Liquid level sensor

Hide thumbs Also See for 7010:

Table of Contents

Download this manual

Liquid Level

Sensor

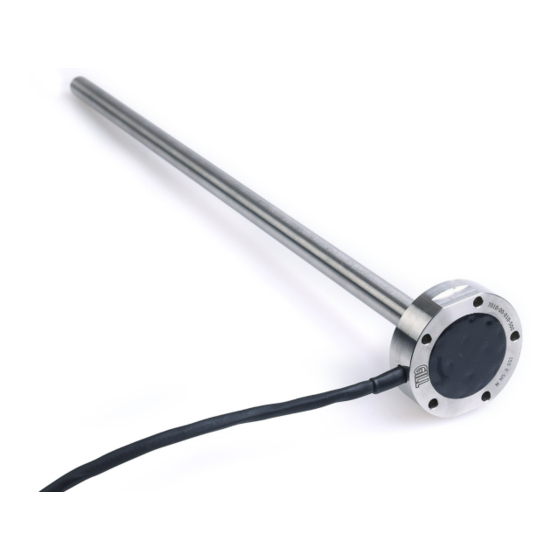

7010 Liquid Level Sensor

Quickstart guide

7010 – All Variants

Thank you

May we take this opportunity to thank you for purchasing this sensor.

The 7010 liquid level sensor is a precision measurement device designed to give accurate data over many

years of continuous operation. Observing a few simple steps will not only get the sensor up and running in

short time, but will ensure you get the best from the sensor.

We also highly recommend a visit to the Gill website www.gillsc.com/support where you can view or

download a full instruction manual and also download the GSlevel software application specifically designed

to optimise operation of the sensor.

gillsc.com

7010-30-083 Issue 2

Table of Contents

Need help?

Do you have a question about the 7010 and is the answer not in the manual?

Page 1 May we take this opportunity to thank you for purchasing this sensor. The 7010 liquid level sensor is a precision measurement device designed to give accurate data over many years of continuous operation. Observing a few simple steps will not only get the sensor up and running in short time, but will ensure you get the best from the sensor.
Page 2 1.125” UNF threaded mounting with either the gasket or O-ring • 1.25” BSP threaded mounting with either the gasket or O-ring • 2” NPT threaded fitting with either PTFE or pipe sealant. gillsc.com 7010-30-083 Issue 2 Copyright © Gill Sensors & Controls...
Page 3 Fit the O-ring over the mounting thread so that it is sitting in the groove on the underside of the sensor flange (see Fig 5). Tighten the flange using a adjustable spanner to a torque of 50Nm. Fig 5 Fig 4 gillsc.com 7010-30-083 Issue 2 Copyright © Gill Sensors & Controls...
Page 4 Fig 6 Optimising Sensor Operation For further adjustment over the set up, download the GSlevel software from the Gill website, www.gillsc.com/support and connect using an R232 to USB cable (available separately from Gill Sensors & Controls Ltd). gillsc.com 7010-30-083 Issue 2 Copyright ©...
