Page 1
Here is a quick guide to getting your sensor up and running. The Gill 7014 Waste Liquid Level Sensor is a sealed unit and any damage to the black sleeving on the probe will result in failure of the sensor.
Page 2
7014 WASTE LIQUID LEVEL SENSOR To use the O-ring seal, the mounting hole requires a 3mm x 45° bevel around the upper edge of the hole. Fit the sensor into a 1.25” BSP threaded hole using a 46mm A/F spanner. Tighten to 50Nm torque ensuring the flange face is flush to the top of the tank.
Page 3

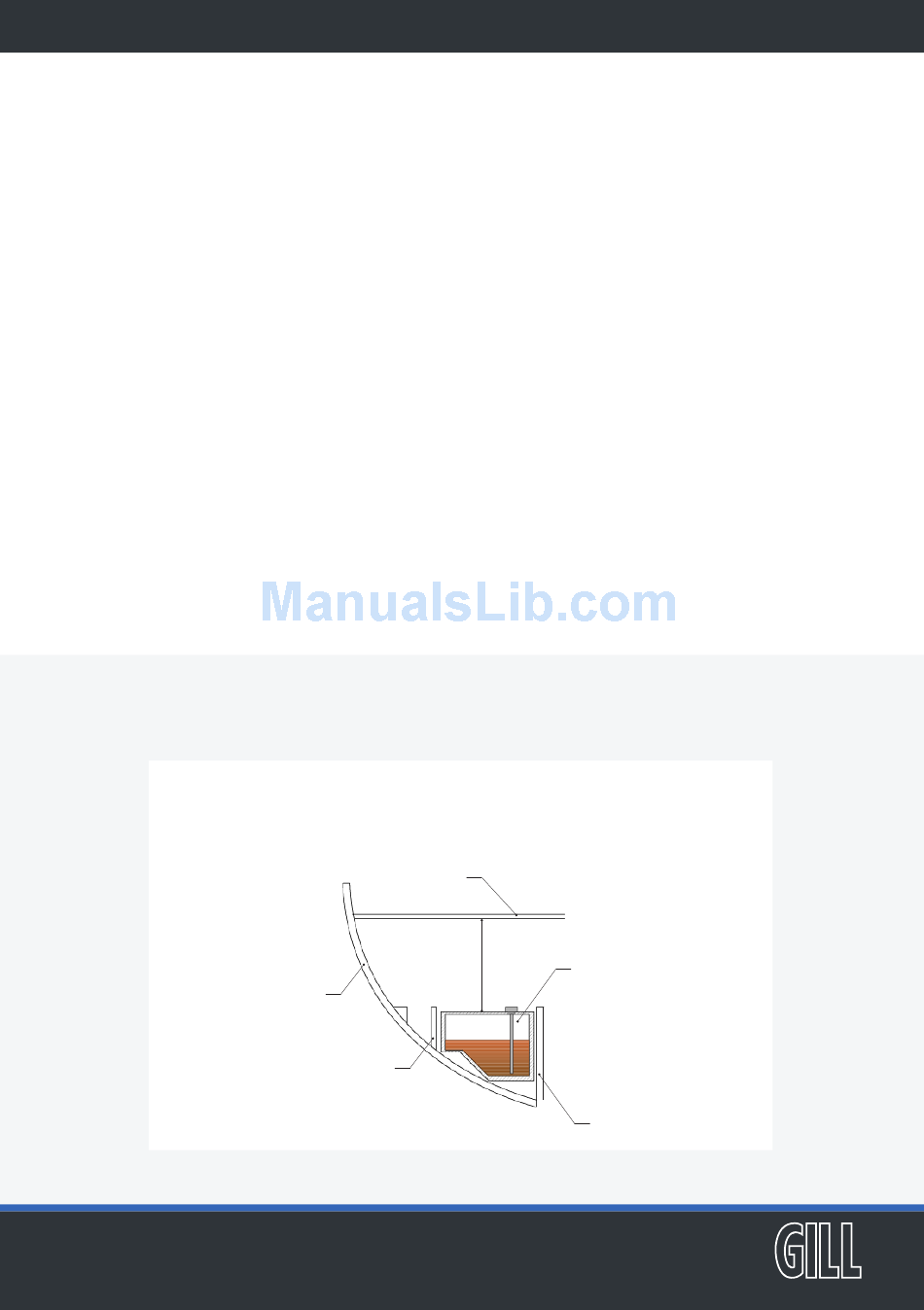

The sensor can be installed at any angle from vertical to a maximum recommended angle of 45°. Even at its maximum supplied length of 2 metres the sensor does not require any supports inside the tank. 45° max ELECTRICAL CONNECTIONS The sensor requires a DC power supply between 6V and 32V.
Page 4
When replacing the cover please ensure that a good seal is re-established. Go to the Gill website gillsc.com/support to download the configuration software. The User Manual covers sensor set-up and configuration. More information at gillsc.com E support@gillsc.com...
