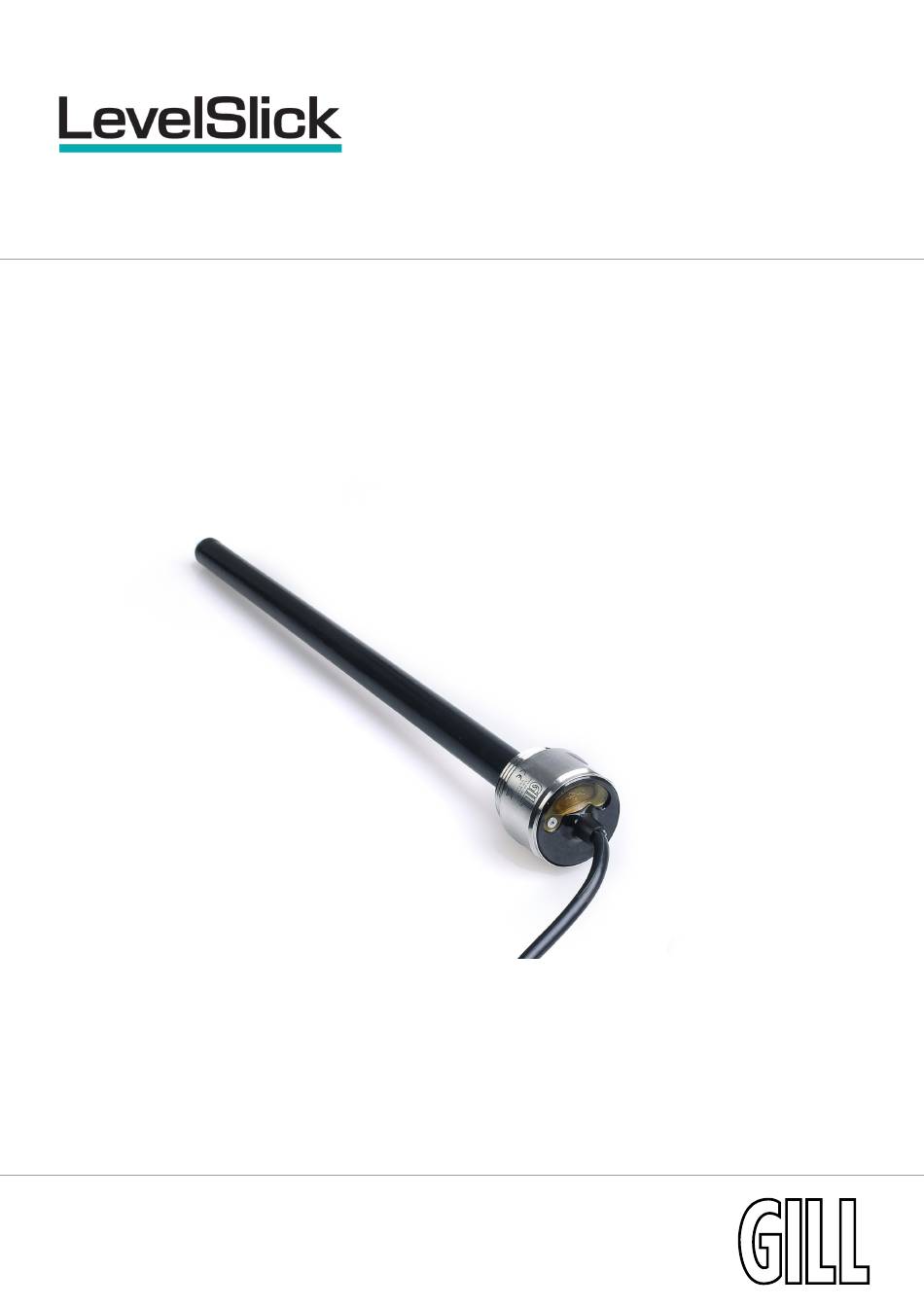

- Page 1 Specialist Liquid Level Sensor Manual gillsc.com 7014-30-055 Iss 7 © 2021 Gill Sensors & Controls Limited...
-
Page 2: Table Of Contents
Specialist Liquid Level Sensors Contents Thank you for purchasing this LevelSlick sensor manufactured by Gill Sensors & Controls Limited. The unit has no customer serviceable parts. To achieve optimum performance we recommend that you read the whole of this manual before proceeding with installation and use. -
Page 3: Installation
50Nm +/-10%, approximately 4.5 turns. When choosing where to position the sensor on the tank, please note that LevelSlick is a rigid sensor and requires sufficient clearance above and to the side to allow the sensor to be fitted and when inspection is... - Page 4 1 to 10 kOhms Resistive: The resistive meter requires its own d.c. power supply. Important: LevelSlick sensor must not be used in a tank that is not adequately vented. fig 6 Please note; See section 10 for further connection details.
-
Page 5: Commisioning & Setup
7.Tank profiling LevelSlick is capable of sensing liquid level in tanks that are regular in shape where the sensor output is linear To setup and commission the sensor you will require a standard USB lead - Type A to Mini B. -
Page 6: Fault Indications & Returns
Firmware not running Red (Solid) If any of these faults arise, please contact Gill Sensors and Controls. Contact details can be found at the end of this document. LevelSlick has no moving parts and requires inimal maintenance in use. Faults in operation are most likely to occur if the sensor is incorrectly configured during installaton. - Page 7 Specialist Liquid Level Sensors Specialist Liquid Level Sensors 10. Environmental specifications gillsc.com gillsc.com 7014-30-055 Iss 7 7014-30-055 Iss 7 © 2021 Gill Sensors & Controls Limited © 2021 Gill Sensors & Controls Limited...
- Page 8 LevelSlick Liquid Level Sensor O-ring and gasket Quick Start Guide Access to GSlevel User Software & manuals (via www.gillsc.com/support webpage gillsc.com gillsc.com 7014-30-055 Iss 7 7014-30-055 Iss 7 © 2021 Gill Sensors & Controls Limited © 2021 Gill Sensors & Controls Limited...
