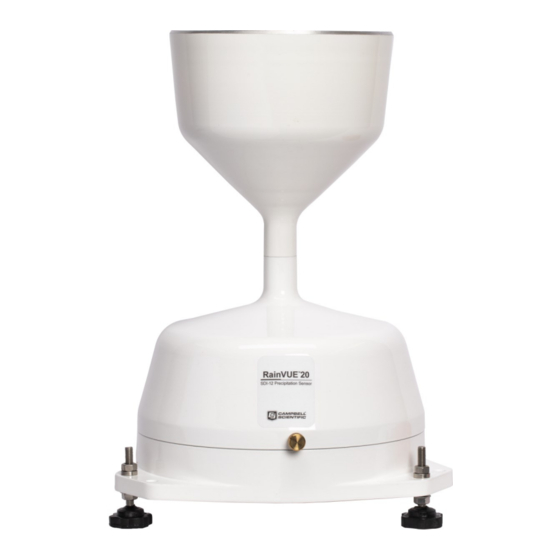

Campbell RainVUE Series Product Manual

Sdi-12 precipitation sensors
Hide thumbs Also See for RainVUE Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Revision: 11/2022
Copyright © 2020 – 2022
Campbell Scientific, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RainVUE Series and is the answer not in the manual?

Questions and answers

Related Manuals for Campbell RainVUE Series

Summary of Contents for Campbell RainVUE Series

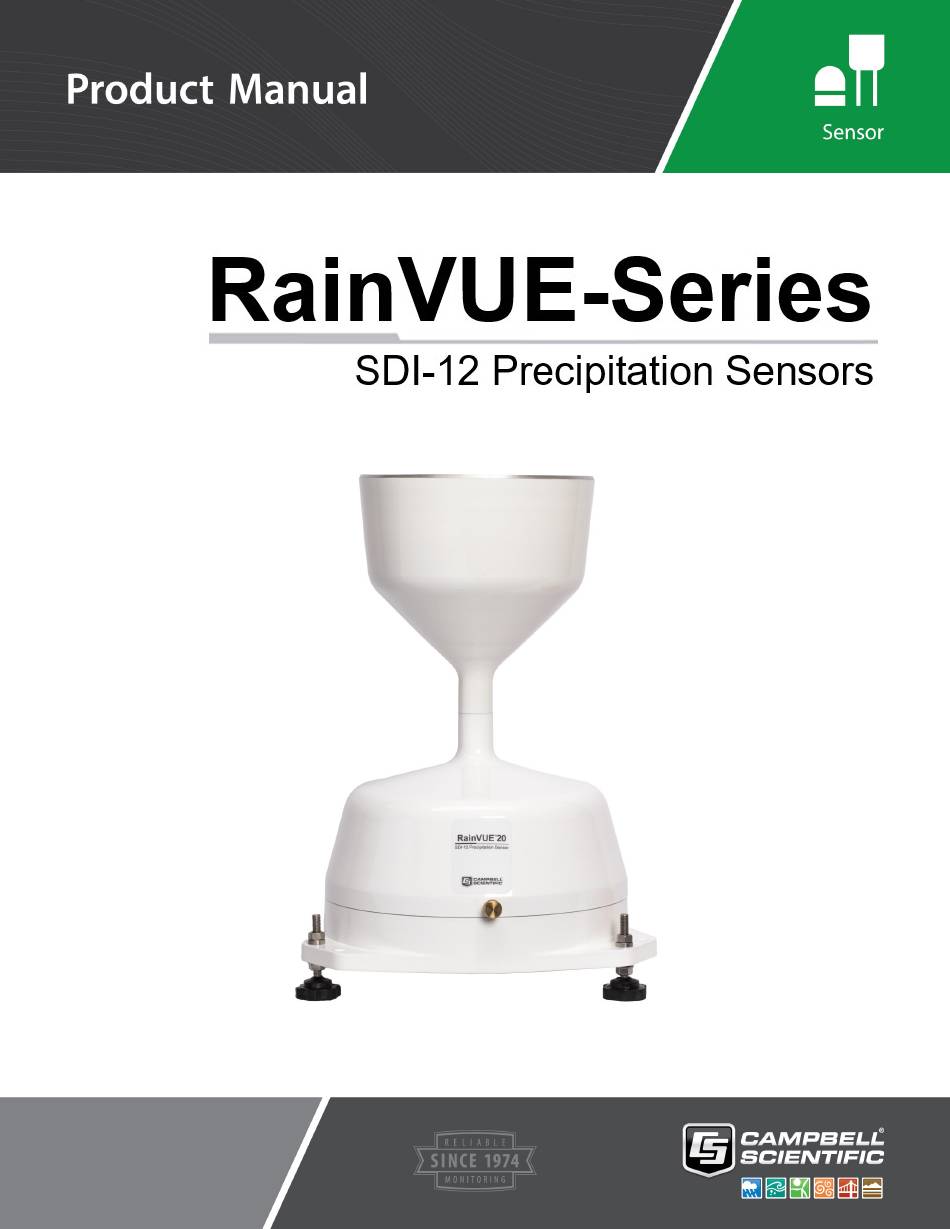

  • Page 1 Revision: 11/2022 Copyright © 2020 – 2022 Campbell Scientific, Inc.

  • Page 2: Table Of Contents

    Table of contents 1. Introduction 2. Precautions 3. Initial inspection 4. QuickStart 5. Overview 6. Specifications 7. Installation 7.1 Wiring 7.2 Data logger programming 7.2.1 CRBasic programming 7.3 Siting 7.4 Mounting 8. Operation 8.1 SDI-12 measurements 8.2 SDI-12 extended commands 8.3 SDI-12 version 1.4 identify measurement commands and responses 8.4 Calculations 8.5 Device Configuration Utility...
  • Page 3 Appendix A. Importing Short Cut code into CRBasic Editor Appendix B. Calibration validation Appendix C. SDI-12 sensor support C.1 SDI-12 command basics C.1.1 Acknowledge active command (a!) C.1.2 Send identification command (al!) C.1.3 Start verification command (aV!) C.1.4 Address query command (?!) C.1.5 Change address command (aAb!) C.1.6 Start measurement commands (aM!) C.1.7 Start concurrent measurement commands (aC!)

  • Page 4: Introduction

    3. Initial inspection Check the packaging and contents of the shipment. If damage occurred during transport, immediately file a claim with the carrier. Contact Campbell Scientific to facilitate repair or replacement. Check model information against the shipping documents to ensure the expected products and the correct lengths of cable are received.

  • Page 5: Quickstart

    On cables and cabled items, the model number is usually found at the connection end of the cable. Report any discrepancies immediately to Campbell Scientific. 4. QuickStart A video that describes data logger programming using Short Cut is available at: www.campbellsci.com/videos/cr1000x-data logger-getting-started-program-part-3...
  • Page 6 4. Click the Wiring tab, wire the sensor, then click OK. 5. Repeat steps three and four for other sensors you want to measure. Click Next. 6. In Output Setup, type the scan rate, a Table Name, and Data Output Storage Interval. Click Next.

  • Page 7: Overview

    7. Select the output options. 8. Click Finish and save the program. Send the program to the data logger if the data logger is connected to the computer. 9. If the sensor is connected to the data logger, check the output of the sensor in the data display in LoggerNet, RTDAQ, or PC400 to make sure it is making reasonable measurements.

  • Page 8: Specifications

    This correction adjusts the rainfall rate based on the time between bucket tips. An electronic timer precisely measures the time between tips. Features: Suitable for nonfreezing precipitation and high intensity rain events Digital processing to correct for high intensity precipitation errors (see Specifications [p.
  • Page 9 Temperature uncertainty: ±0.25 °C (±0.45 °F) Supply voltage uncertainty: ±0.5 V Operating temperature: 1 to 70 °C (34 to 158 °F); –40 to 70 °C (–40 to 158 °F) including melting snow Funnel diameter: 20.0 cm (7.87 in) Height: 43.5 to 46.5 cm (17.1 to 18.3 in) with feet adjustment Power: 6 to 18 VDC Compliance:...

  • Page 10: Installation

    Table 6-1: RainVUE-series comparison Specification RainVUE 10 RainVUE 20 0.01 inch option: ±1% at 0 to 1200 mm/hr (0 to 48 in/hr) 0.01 inch option: ±1% at 0 to intensity 500 mm/hr (0 to 20 in/hr) 0.1 mm option: The larger of intensity Precipitation amount 0.1 mm or 4% error at 0 to measurement uncertainty 0.1 mm option: ±3.08% at 0 to...

  • Page 11: Wiring

    U and C terminals are automatically configured by the instruction. If multiple SDI-12 sensors are connected to a data logger, Campbell Scientific recommends using separate terminals when possible. However, multiple SDI-12 sensors can connect to the same data logger control or U terminal. Each must have a unique SDI-12 address. Valid addresses are 0 through 9, a through z, and A through Z.

  • Page 12: Crbasic Programming

    RainVUE-series should not be installed over a large paved or concrete surface. 7.4 Mounting The RainVUE-series has three equally spaced leveling feet. Next to each leveling foot is a hole for securing the sensor to a flat surface. The CM241 mounting bracket offered by Campbell Scientific RainVUE-Series SDI-12 Precipitation Sensors...
  • Page 13 allows the RainVUE-series to be mounted on a CM300-series mounting pole or to a user- supplied 1.5-inch IPS (1.9-inch OD) unthreaded pipe. Mounting poles may be placed directly into a concrete foundation, attached to a concrete foundation with J-bolts, or self supported with three legs (see Figure 7-1 [p.
  • Page 14 The procedure for mounting to a CM241 bracket and leveling the sensor is as follows: 1. Attach the feet to the sensor using the nuts and washers provided. The hardware used to mount the feet are shipped in a bag with the feet. Figure 7-2.
  • Page 15 3. Remove the wing nuts and washers from the CM241 mounting bracket. Figure 7-4. CM241 mounting bracket 4. Line up the RainVUE-series mounting holes over the CM241 mounting bolts and place the sensor on the bracket. Figure 7-5. Exploded view of RainVUE-series and CM241 bracket; wing nuts and pole not shown 5.
  • Page 16 7. Adjust the three leveling feet to level the RainVUE-series. The RainVUE 10 has a bubble level next to a leveling foot; the RainVUE 20 bubble level is visible after removing the funnel. See Figure 7-6 (p. 13). Figure 7-6. Bubble level locations on the RainVUE-series 8.
  • Page 17 11. Pull and remove the insulator tab used to prevent draining of the backup coin cell battery during shipping and storage. The tab extends from the bottom of the RainVUE-series interface to inside the RainVUE-series. Figure 7-7. RainVUE-series interface and insulator tab 12.

  • Page 18: Operation

    8. Operation This section discusses the following: 8.1 SDI-12 measurements 8.2 SDI-12 extended commands 8.3 SDI-12 version 1.4 identify measurement commands and responses 8.4 Calculations 8.5 Device Configuration Utility 8.1 SDI-12 measurements The RainVUE-series responds to the SDI-12 measurement commands shown in Table 8-1 (p.
  • Page 19 Table 8-1: SDI-12 measurement commands SDI-12 Values returned Units Comments command 1. Intensity corrected accumulation (ICA) since last measurement accumulator reset 2. Number of raw bucket tips Each tip event adds to since last measurement the tip counter (#2) and 1.
  • Page 20 SDI-12 address: a SDI-12 version: 14 Vendor: Campbell Model: RainVU Model version: vvv Not applicable (NA) RainVUE 10 (0.01 in) = 10i RainVUE 10 (0.1 mm) = 10m RainVUE 10 (0.2 mm) = 10n RainVUE 20 (0.01 in) = 20i...

  • Page 21: Sdi-12 Extended Commands

    (p. 18) using the transparent mode while the computer is communicating with the data logger through a terminal emulator program. It is accessed through Campbell Scientific Device Configuration Utility software or other terminal emulator programs. Data logger keyboards and displays cannot be used. Refer to...
  • Page 22 Table 8-2: SDI-12 extended commands SDI-12 Values returned or function Comments command Resets the total adjusted rain to a current value and returns the number aXWA+xx.xx! Used when replacing the of values. RainVUE-series midway (where xx.xx = current rain Follow this command with the aD0! through a water year.

  • Page 23: Sdi-12 Version 1.4 Identify Measurement Commands And Responses

    Table 8-2: SDI-12 extended commands SDI-12 Values returned or function Comments command aXRCAL! Returns bucket calibration setting. aXWCAL+x.xxxx! Writes bucket calibration setting; (where x.xxxx = returns 01 if it worked correctly. calibration factor) a is the sensor address. 8.3 SDI-12 version 1.4 identify measurement commands and responses Version 1.4 compliant sensors must respond to identify commands for each type of measurement command and each parameter with a command.

  • Page 24: Calculations

    Table 8-3: Identify commands for the RainVUE-series Type of command Command Sensor response Comment AdjRain: adjusted or Identify intensity-corrected aAdjRain,Inches measurement precipitation since last aIM_001! or aAdjRain,mm parameter 001 of measurement M command Units: inches or mm RawTips: number of raw Identify bucket tips since last measurement...
  • Page 25 3. Total accumulation since last reset (inches) 4. Average precipitation intensity since last measurement accumulator reset (in/hr) 5. Max intensity since last measurement accumulator reset (in/hr) The aM!, aMC!, aMC1!, aC!, aC1!, aCC!, aCC1!, and aRC1! commands reset the measurement accumulator. The total intensity accumulator is reset using the aXWARA!, aXWA+xx.xx!, or aXWRESET! commands.

  • Page 26: Device Configuration Utility

    5. Max intensity calculation: This is the largest of the calculated intensity values observed since last measurement request (aM!, aMC!, aMC1!, aC!, aC1!, aCC!, aCC1!, or aRC1! command). 8.5 Device Configuration Utility Use Device Configuration Utility to change the SDI-12 address, view sensor measurements, collect data, and update an operating system (see Updating the operating system [p.
  • Page 27 5. Type RainVUE in the Device Type box and click RainVUE. The model and tip option is selected in step 10. 6. If this is the first time connecting the RainVUE-series to the computer, click install the USB device driver before connecting the cable to the computer. 7.
  • Page 28 10. Select the Model. To change the SDI-12 address, click the SDI-12 Address box and select a different value. Type the calibration in the Bucket Calibration box. 11. Click the Status tab to view tip counts, accumulation, and intensity information. 12.
  • Page 29 13. Click the Data Monitor tab to view real-time data. From the list, select the table you want to display. 14. Click the Data Collection tab to manually collect data. Check the Destination Directory and File Format to make sure the files are where you want them and in the right format. Select Collect Mode, tables, then click Start.

  • Page 30: Maintenance And Troubleshooting

    The following shows data collected from an hourly rain table: 9. Maintenance and troubleshooting NOTE: All factory repairs and recalibrations require a returned material authorization (RMA) and completion of the “Statement of Product Cleanliness and Decontamination” form. Refer to Assistance page near the end of this manual for more information.

  • Page 31: Maintenance

    9.1 Maintenance To ensure reliable and accurate measurements, Campbell Scientific recommends doing the following every month: 1. Check the integrity of the cable and data logger connections. Replace cable if damaged. 2. Inspect the funnel for any damage or blockage. To clear a blockage, detach the funnel from the base, remove debris, then reattach the funnel.
  • Page 32 Figure 9-2. Stainless-steel mesh screen filter Filter cleaning and replacement procedure: 1. Unscrew the end cap from the filter tube. 2. Remove the funnel filter. RainVUE-Series SDI-12 Precipitation Sensors...

  • Page 33: Internal Lithium Battery

    Table 8-3 [p. 20]). Replace the battery when voltage is approximately 2.7 VDC. Campbell Scientific recommends replacing the battery every two to three years and after each loss of power event. High temperatures can reduce the battery life, and low temperatures can decrease battery capacity, lowering available power and sensor runtime.

  • Page 34: Updating The Operating System

    Battery replacement procedure: 1. Loosen and remove the three base thumb screws, then lift the funnel upward. 2. Use a Phillips screwdriver to remove the four screws on the RainVUE-series interface. 3. Remove the interface cover. 4. Replace the old lithium battery with the new battery (3 V coin cell CR2032). 5.

  • Page 35: Troubleshooting

    7. Click OK. 9.2 Troubleshooting Symptom: On a CRBasic data logger, data values report NAN, or on a non-Campbell Scientific data logger, data values do not change when the tipping mechanism is activated and new measurement commands are issued. Solution: 1.
  • Page 36 Symptom: Reported data values are lower than expected. Solution: 1. Ensure that the filter is clean and allows water to flow through it. 2. Check that the tipping mechanism can move freely. 3. Use a voltmeter on the switch to verify that the switch is activated as expected while transitioning from one side to the other.

  • Page 37: Appendix A. Importing Short Cut Code Into Crbasic Editor

    Appendix A. Importing Short Cut code into CRBasic Editor Short Cut creates a .DEF file that contains wiring information and a program file that can be imported into CRBasic Editor. By default, these files reside in the C:\campbellsci\SCWin folder. Import Short Cut program file and wiring information into CRBasic Editor: 1.

  • Page 38: Appendix B. Calibration Validation

    Appendix B. Calibration validation Use the XTEST! SDI-12 command to validate the calibration. Enter this command in the transparent mode while the computer is communicating with the data logger through a terminal emulator program. This command displays simulated rain fall data that does not affect rain accumulators used for the normal operation.
  • Page 39 Corrected Total Rain Fall Rain Fall Balance 0.000 0.000 0.000 0.000 0.010 0.010 0.011 0.021 0.011 0.032 0.012 0.044 0.010 0.054 0.011 0.065 0.023 0.088 0.011 1.180 0.011 1.191 0.011 1.202 0.012 1.214 0.010 1.224 0.000 1.224 0.000 1.224 The corrected rain fall and total rain fall values include intensity correction. When the simulated rain is run through the gage at a fast rate, the number of tips may be lower than expected, but the corrected rain fall should be close to the actual amount of simulated rain.

  • Page 40: Appendix C. Sdi-12 Sensor Support

    Serial Data Interface at 1200 baud (SDI-12) is a protocol developed to simplify sensor and data logger compatibility. Only three wires are necessary—serial data, ground, and 12 V. With unique addresses, multiple SDI-12 sensors can connect to a single SDI-12 terminal on a Campbell Scientific data logger.

  • Page 41: Acknowledge Active Command (A!)

    Table C-1: Campbell Scientific sensor SDI-12 command and response set Command Name Response Address query a<CR><LF> aAb! Change address b<CR><LF> Start measurement atttn<CR><LF> aM1!...aM9! Start measurement aMC! atttn<CR><LF> aMC1!...aMC9! and request CRC Start concurrent measurement atttnn<CR><LF> aC1!...aC9! aCC! Start doncurrent measurement atttnn<CR><LF>...

  • Page 42: Start Verification Command (Av!)

    Where a = sensor address ll = SDI-12 version number (indicates compatibility) cccccccc = eight-character vendor identification mmmmmm = six characters specifying the sensor model vvv = three characters specifying the sensor version (operating system) xxx…xx = up to 13 optional characters used for a serial number or other specific sensor information that is not relevant for operation of the data logger <CR><LF>...

  • Page 43: Start Measurement Commands (Am!)

    NOTE: Only one sensor should be connected to a particular terminal at a time when changing addresses. C.1.6 Start measurement commands (aM!) A measurement is initiated with the M! command. The response to each command has the form atttn<CR><LF>, where a = sensor address ttt = time, in seconds, until measurement data is available;...
  • Page 44 To use this command, the scan interval should be 10 seconds or less. The response to each command has the form atttn<CR><LF>, where a = sensor address ttt = time, in seconds, until measurement data is available nn = number of values to be returned when one or more subsequent D commands are issued See the example in Table C-3 (p.

  • Page 45: Start Measurement Commands With Cyclic Redundancy Check (Amc! And Acc!)

    Table C-3: Example aC! sequence The sensor immediately responds with the sensor X+1+2+3+4+5<CR><LF> address and the five values. 10 seconds later, after a total of 40 seconds has passed, the data logger starts the process of YD0! collecting data from sensor Y by issuing the first D command.

  • Page 46: Continuous Measurement Command (Ar0

    (no service request will be sent by the sensor). In transparent mode (see SDI-12 transparent mode [p. 44]), the user asserts this command to obtain data. Depending on the type of data returned and the number of values a sensor returns, the data logger may need to issue aD0! up to aD9! to retrieve all data.

  • Page 47: Sdi-12 Transparent Mode

    Transparent mode is entered while the computer is communicating with the data logger through a terminal emulator program. It is accessed through Campbell Scientific data logger support software or other terminal emulator programs. Data logger keyboards and displays cannot be used.
  • Page 48 4. Select the correct Communication Port and click Connect. 5. Click the Terminal tab. 6. Select All Caps Mode. 7. Press Enter until the data logger responds with the data logger (CR1000X>) prompt. 8. Type SDI12 and press Enter. 9. At the Select SDI12 Port prompt, type the number corresponding to the control port where the sensor is connected and press Enter.

  • Page 49: References

    response Entering SDI12 Terminal indicates that the sensor is ready to accept SDI-12 commands. 10. To query the sensor for its current SDI-12 address, type ?! and press Enter. The sensor responds with its SDI-12 address. If no characters are typed within 60 seconds, the mode is exited.
  • Page 50 See Product Details on the Ordering Information pages at www.campbellsci.com . Other manufacturer's products, that are resold by Campbell Scientific, are warranted only to the limits extended by the original manufacturer. Refer to www.campbellsci.com/terms#warranty for more information.
  • Page 51 To obtain a Returned Materials Authorization or Repair Reference number, contact your CAMPBELL SCIENTIFIC regional office. Please write the issued number clearly on the outside of the shipping container and ship as directed. For all returns, the customer must provide a “Statement of Product Cleanliness and Decontamination”...
  • Page 52 Do not recharge, disassemble, heat above 100 °C (212 °F), solder directly to the cell, incinerate, or expose contents to water. Dispose of spent batteries properly. WHILE EVERY ATTEMPT IS MADE TO EMBODY THE HIGHEST DEGREE OF SAFETY IN ALL CAMPBELL SCIENTIFIC PRODUCTS, THE CUSTOMER ASSUMES ALL RISK FROM ANY INJURY RESULTING FROM IMPROPER INSTALLATION, USE, OR MAINTENANCE OF TRIPODS, TOWERS, OR...
  • Page 53 Campbell Scientific Regional Offices Australia France Thailand Location: Garbutt, QLD Australia Location: Vincennes, France Location: Bangkok, Thailand Phone: 61.7.4401.7700 Phone: 0033.0.1.56.45.15.20 Phone: 66.2.719.3399 Email: info@campbellsci.com.au Email: info@campbellsci.fr Email: info@campbellsci.asia Website: www.campbellsci.com.au Website: www.campbellsci.fr Website: www.campbellsci.asia Brazil Germany Location: São Paulo, SP Brazil...
