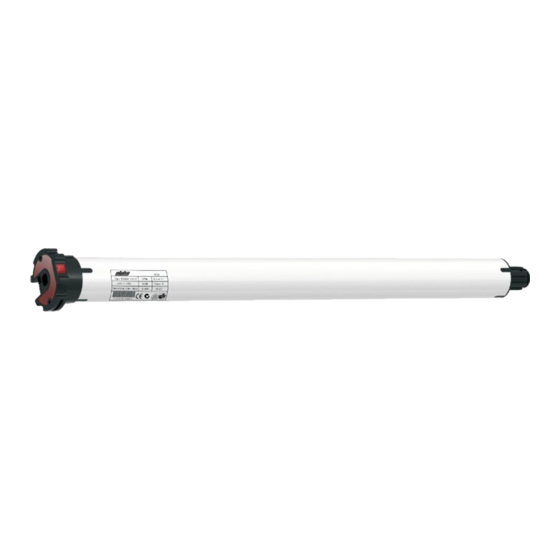

Alpha WSER UNIVERSAL MOTOR User Manual

1. TECHNICAL SPECIFICATIONS
Power: 240V/50Hz
Protection Index: IP44
2. WIRE CONNECTIONS
up
stop
down
3. ASSIGNING A REMOTE TO A MOTOR (you have 10 seconds to complete the task)
M ETHOD A .
Only works for the first remote
assigned to the motor
AC Power
1
Turn power on, the motor
will vibrate.
M ETHOD B.
Can be used at any time.
1
Press the red button on the
motor for 1 second.
METHOD C. (Use Method C, if Method A or B do not work) C
seconds before restoring power each time and you must allow the motor to vibrate properly each time. After the third cycle, you may assign the remote.
4. CHANGING THE MOTOR'S DIRECTION
Method A
Hold the red button on the motor down for 3 seconds, The motor will vibrate.
Method B
1
Press the UP and DOWN buttons
simultaneously, then release.
5. TURN ON "STEP BY STEP" MODE
1
Pr ss the UP and DOWN buttons e
simultaneously, then release.
WSER UNIVERSAL MOTOR GUIDE p1
ALPHA SUPPORT PHONE (02) 4355 4775
Up to 15 remotes (or channels) may be assigned to each motor
Thermal protection will engage after 4 minutes of continuous running
AC Power
240V
1
Press the UP and DOWN buttons
simultaneously, then release.
1
Press the UP and DOWN buttons
simultaneously, then release.
an only be used if you cut and restore power to the motor 3 times. You must allow
1
6
Pr ss the STOP button 6 e
times.
(motor moves a few millimeters at a time unless button held down for 3 secs)
1
Pr ss the STOP button once. e
neutral wire ( blue )
ground wire ( green )
live wire (b rown )
1
1
Press the STOP button once,
the motor will vibrate.
1
1
Press the STOP button once,
the motor will vibrate.
1
1
Press the DOWN button
once, the motor will vibrate.
1
1
Press the P button once, U
the mo tor will vibrate.
antenna
You can now use the remote
to control the motor.
You can now use the remote
to control the motor.
3
The UP and Down directions of the
motor have been reversed.
The UP and DOWN directions of
the motor have been reversed.
The mo tor is now in "step by
step" m ode.
