Alpha WSS Series Instructions

for mechanical limit switch standard motor WSS series
and manual override motor WSM series
Before assembling and using the tubular motor, please carefully read the specification, in order
Each of these products has a rigorous testing before leaving factory so you can assemble it as a
whole and use safely. Prohibiting opening it and changing the inner parts without authorization
(except adjusting limited replacement stroke), if not, we do not bear the sequent.
1. TUBULAR MOTOR GENERAL DESCRIPTION
Our tubular motor, adopting advanced technology, is developed by our own company. There are four
main parts of the motor: motor, break, gearbox, and limit switch. The motor can be widely used in
awning, roller blinds, garage door, projection screen, etc.
Features:
1. Small, light and low noise, hidden.
2. Stable and durable limit switch makes sure the motor has excellent performance for long.
3. Thermal Protector can make the tubular motor stop automatically when working temperature is
℃
over 130 . When the temperature goes down (about 15 minutes), the motor can work again.
4. Perfect shape, simple operation, convenient to assemble.
5. The rate of insulation is F. 2.
2. NAME AND STRUCTURE OF MODEL NUMBER
NAME
W S S
Outside diameter (mm)
S = Standard type
M = Manual type
C = Clutch type
WSS/WSM SERIES MOTOR GUIDE p1
ALPHA SUPPORT PHONE (909) 307-2320
TUBULAR MOTOR INSTRUCTION
to avoid the damage of the motor or injury of person.
Torque (Nm)
WARNING

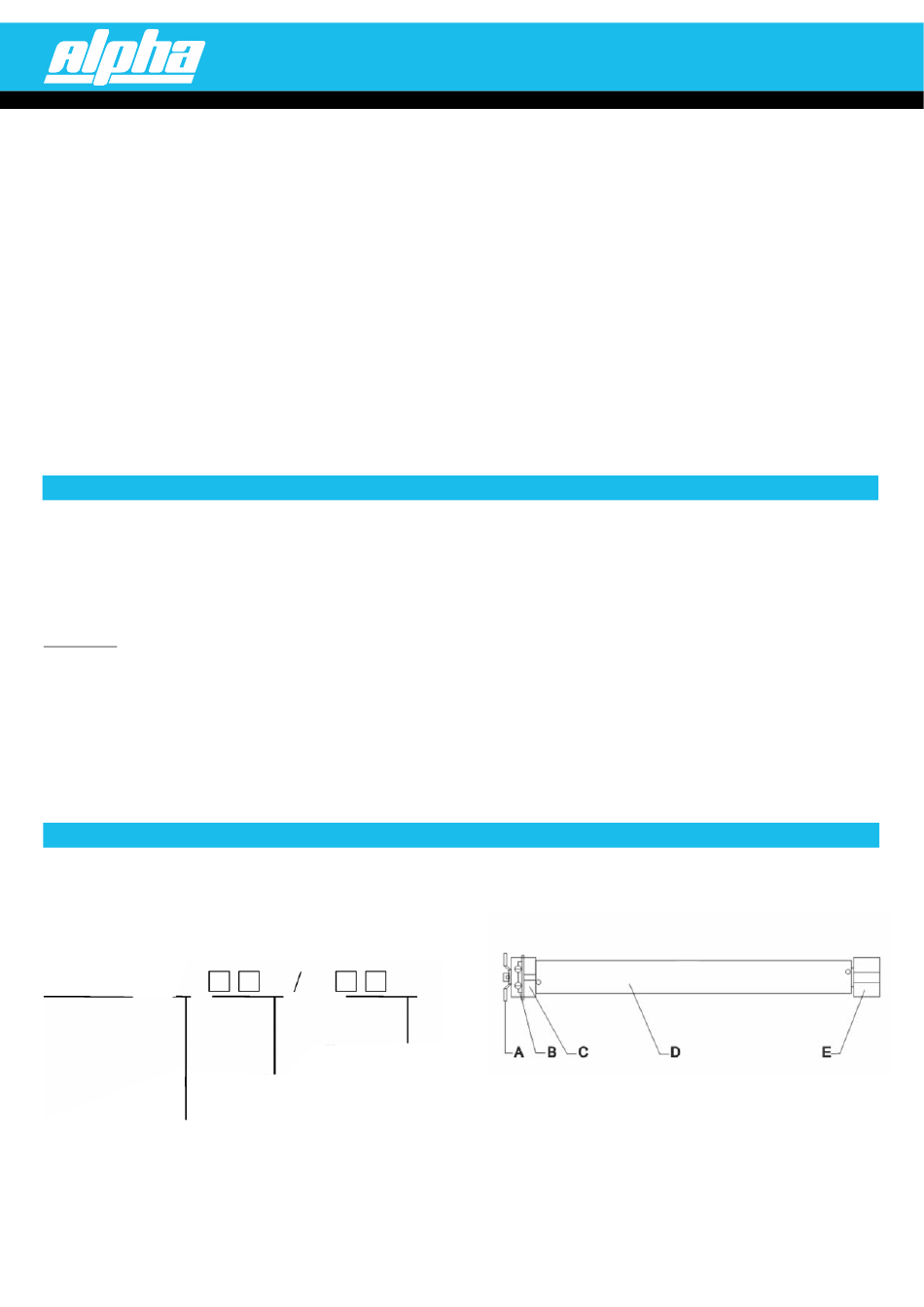

STRUCTURE
A = Bracket
B = Limit Switch
C = Crown
D = Shell
E = Drive Adapter
