No: 24983 – 10/16 rev. 1
Catalog Number • Numéro de Catalogue • Número de Catálogo: AS-100
Country of Origin: Made in China • Pays d'origine: Fabriqué en Chine • País de origen: Hecho en China
DESCRIPTION AND OPERATION
The Wattstopper InteliSwitch
operates as both a manual and automatic control device.
Manually, it allows users to control loads ON and OFF. Automatically, the
AS-100 receives signals to turn loads ON and OFF from Wattstopper
lighting control panels, or other lighting control systems.
Lighting control panels not only automatically turn lights ON and OFF,
but can also send a shut-OFF signal to warn users that the switch will
shut OFF lighting in five minutes. The LED on the AS-100 will blink, and
an audible beep (if enabled, see SETUP section) warns users of the
impending shut-OFF.
The display has three (3) LEDs that indicate activity and Setup Mode
options (or current choices). The center (red) LED blinks during the
shut-OFF time delay, indicating that lights will soon turn OFF.
A Setup Mode allows selection of options for operation with a lighting
control panel.
1. Connect wires as shown in the WIRING section that follows.
#12 to #16 AWG
Strip Gauge
Cu Wire Only
2. Attach the switch to the wall by mounting it in the wall box with the two (2) mounting screws
provided.
3. Install the cover plate.
4. Turn ON power to the switch and, if necessary, put it into Setup Mode to select options.
®
AS-100 is an automatic control switch that
WARNING: TURN THE POWER OFF AT THE
CIRCUIT BREAKER BEFORE WIRING.
Wattstopper
®
InteliSwitch
Automatic Control Switch 120/277VAC

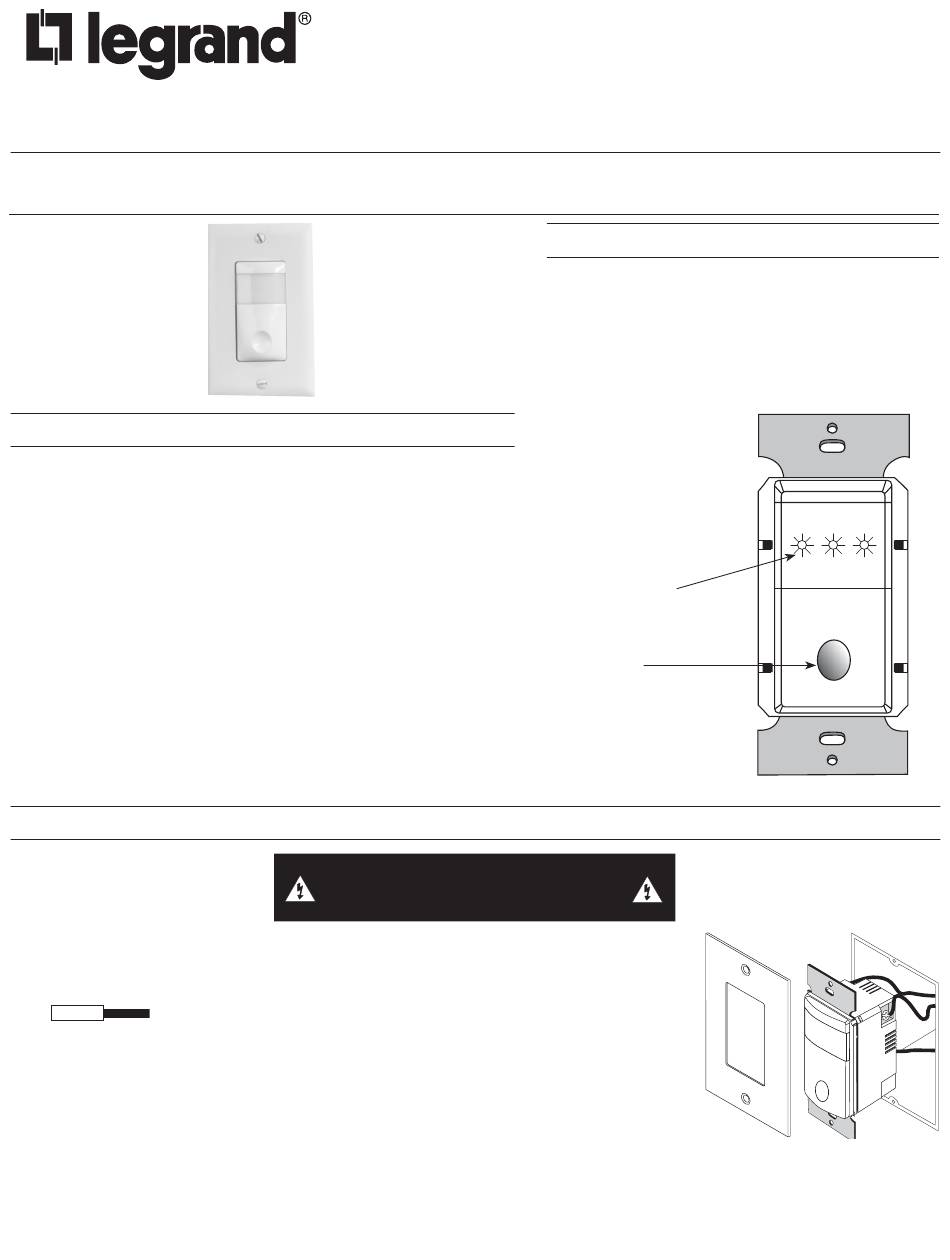

Installation Instructions • Instructions d'Installation • Instrucciones de Instalación
Voltages ...........................................120 or 277VAC, 50/60Hz
Load Requirements
LED Display behind
translucent window
(3 LEDs: Green – Red –Green)
ON/OFF button
INSTALLATION
®
SPECIFICATIONS
@120VAC, 50/60Hz ....0-1300W ballast & incandescent
@277VAC, 50/60Hz ..............................0-3000W ballast
Advertisement
Related Manuals for LEGRAND Wattstopper AS-100-A
Summary of Contents for LEGRAND Wattstopper AS-100-A
- Page 1 Wattstopper ® ® InteliSwitch Automatic Control Switch 120/277VAC No: 24983 – 10/16 rev. 1 Installation Instructions • Instructions d’Installation • Instrucciones de Instalación Catalog Number • Numéro de Catalogue • Número de Catálogo: AS-100 Country of Origin: Made in China • Pays d’origine: Fabriqué en Chine • País de origen: Hecho en China SPECIFICATIONS Voltages ...........120 or 277VAC, 50/60Hz Load Requirements...
- Page 2 WIRING The ground terminal must be connected to ground for the AS-100 to function. Never connect the AS-100 to a power pack; always connect the AS-100 to a lighting control panel. * Never connect line voltage to the 3-Way terminal. Doing so will damage the AS-100 and void the warranty. Remote Switch Master Switch Signal Only...
- Page 3 OPERATION Manual ON and OFF control is always available by pressing the ON/OFF button. Automatic-OFF and Automatic Delayed-OFF are always enabled regardless of other Setup Mode options. When set for Automatic-ON mode (see SETUP section), the AS-100 turns ON the load when it receives the Automatic-ON signal from a Wattstopper lighting control panel or other lighting control system.
- Page 4 No. 24983 – 10/16 rev. 1 © Copyright 2016 Legrand All Rights Reserved. 800.879.8585 © Copyright 2016 Tous droits réservés Legrand. www.legrand.us/wattstopper © Copyright 2016 Legrand Todos los derechos reservados.
