9 Troubleshooting
c) Click on Properties opening
d) Double-clicking on "Internet Protocol Version 4 (TCP/IPv4)" will open the dialog
41
where the IP address can be set. Select "Use the following IP address", enter
192.168.254.1 as "IP address", 255.255.255.0 as "Subnet mask" and 192.168.254.254 as
"Default gateway".
4. Restart the ModGate Plus. The configuration webinterface is now reachable under http://192.168.254.254.
5. Now some questions have to be answered. You may need to ask the local network adminis-
trator.
June 2018
40

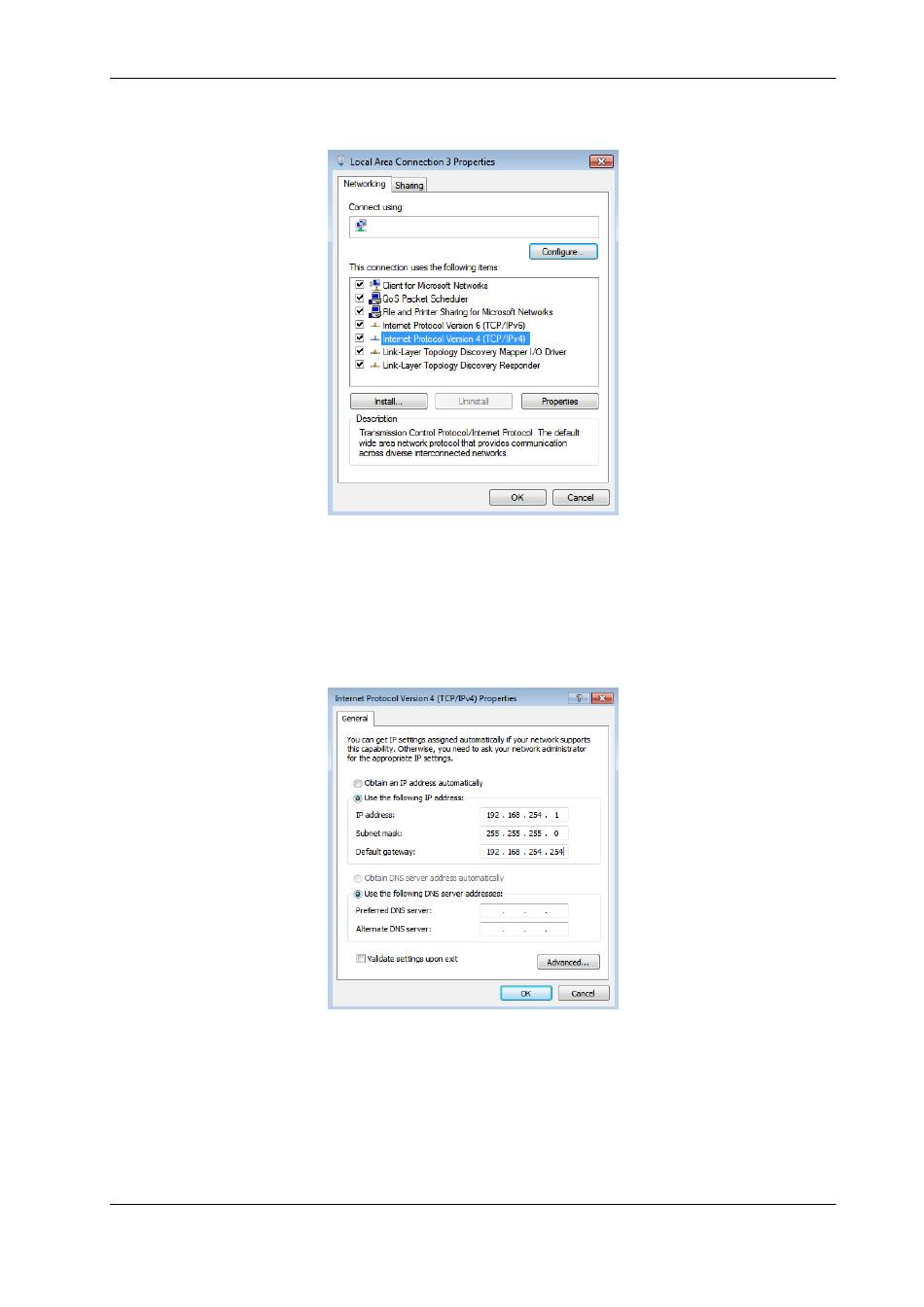

Figure 40: Local Area Connection Properties
Figure 41: IPv4 Properties
ModGate Plus User Manual
