8 Example Configurations
IP:192.168.1.150
IP:192.168.1.123
Slave
ID:10
Alternatives: It's possible to have the remote Gateway R as a multi-port ModGate Plus. This is
especially required to attach Modbus devices communicating via RS232; in such a situation only
a single device per serial port is possible. For example a ModGate Plus 413 can connect to four
devices RS232, or fewer plus several other devices via RS485 on one port.
June 2018
Gateway L
Modbus/TCP
Modbus/RTU
Modbus/ASCII
Slave
ID:11

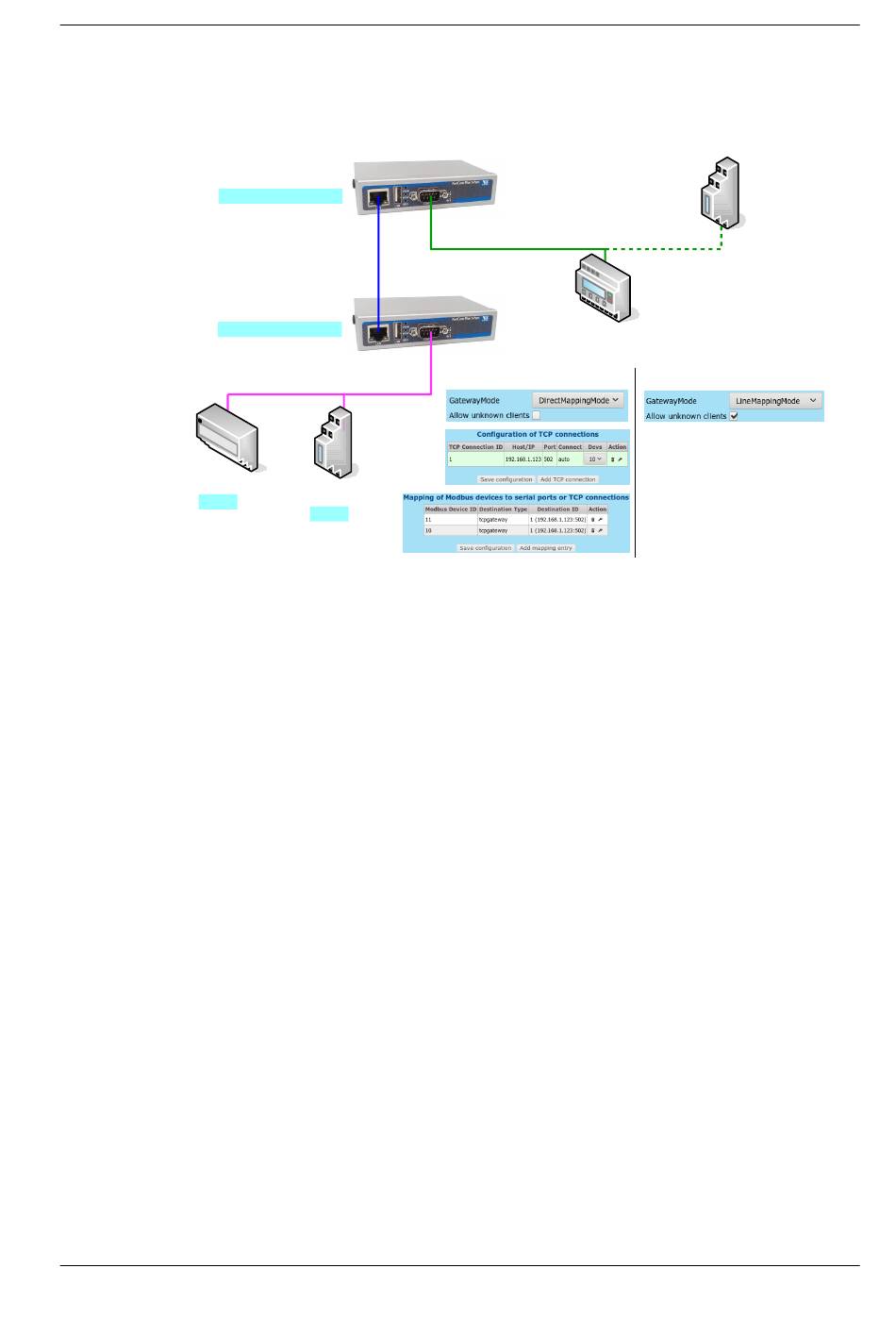

Figure 36: Tunnel setup
ModGate Plus User Manual
Modbus/RTU Modbus/RTU
Modbus/ASCII Modbus/ASCII
Gateway R
Master
Gateway L
Slave
Gateway R
46
