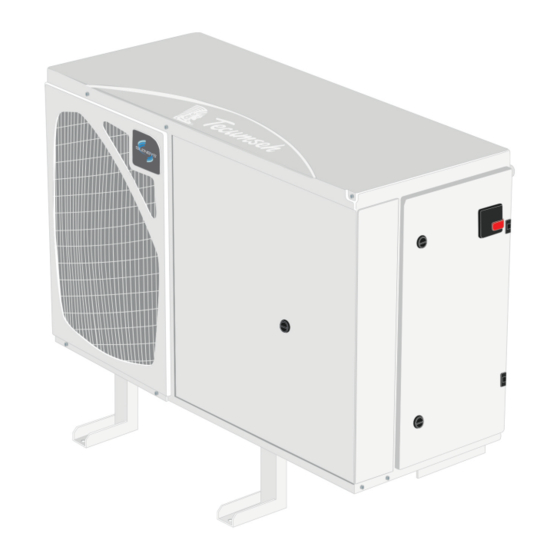

- Page 1 Silensys Installation instruction...
-
Page 2: Technical Data
The installation of the unit, including refrigeration and electrical connection, is subject to the norms and technical standards in the respective country. TECUMSEH EUROPE S.A. declines all responsibility if installation and maintenance are not carried out in accordance with these instructions. - Page 3 Units 2.1.1 Range Pressostat H.P. L.P. L.P. models – R-404A B08Z 650 800 300 12.7 3/8 1000 29 – 25 1 - 3 B09Z 650 800 300 12.7 3/8 1000 29 – 25 1 - 3 B10Z 650 800 300 12.7 3/8 1000 29 –...
-
Page 4: Installation
2.1.2 Safety devices All units are supplied with an adjustable H.P. / L.P. pressostat, which shuts off at 16A. 2.1.3 Versions The following unit versions exist: With fused plug – H.P. / L.P. pressostat with manual reset – Contactor and isolating switch. 2.1.4 Refrigeration diagrams Refer to annexe 1... - Page 5 Handling The packaging allows the use of a forklift truck or a pallet loader. It must be retained until the unit arrives at its location of installation. The unpacked unit can be handled and lifted with a forklift truck or belts. Location Refer to annexe 3 The unit should not block or obstruct thoroughfares, persons, doors or shutters.
- Page 6 In order to always ensure the highest quality for our products, the refrigeration circuit of the unit is supplied dry and filled with nitrogen. ADVICES To maintain the quality of a TECUMSEH EUROPE S.A. unit and to ensure its smooth operation it is recommended to: Braze under nitrogen, Insulate the suction line up to the compressor inlet to avoid condensation.
- Page 7 To maintain the quality of a TECUMSEH EUROPE S.A. unit and to ensure its smooth operation it is recommended to: Never wire the unit under voltage. Verify that the power supply voltage to the installation is compatible with that of the unit (refer to name plate) Verify that the circuit diagram of the unit is compatible with that of the installation.
-
Page 8: Putting Into Operation
220-240V – 1Ph 15.4 H49Z 400 V – 3Ph 220-240V – 1Ph 18.1 H54Z 400 V – 3Ph 220V – 3 Ph 220-240V – 1Ph 26.3 H71 Z 400 V – 3Ph 8.18 220V – 3 Ph 13.4 220-240V – 1Ph H84Z 400 V –... - Page 9 Leak tightness of the circuit All connections must be systematically checked for leaks with an electronic leakage detector. Evacuation Evacuate the installation to about 200 micrometer Hg, to ensure a good quality vacuum. It is recommended to evacuate simultaneously on both sides (HP and LP) to accelerate the operation and to obtain an identical vacuum in the entire circuit.
-
Page 10: Service And Maintenance
5 SERVICE AND MAINTENANCE The condenser Clean the heat exchanger and the unit at least once per year. The unit can be accessed by removing the fan sheet. Leak check Carry out a leak check once per year or according to local regulations. Verify regularly: §... -
Page 11: Declaration Of Compliance
Replacement of the fan Disconnect the fan cable from the junction box. Remove the 4 fixation screws of the grill. Extract the fan / grill combination. Replace the fan condenser. Condenser Replacement of the compressor A L’UNITE HERMETIQUE valve compressor can be mounted as a replacement of the original tube compressor, with few adaptations of the piping. - Page 12 Thus, this product is not subjected to the directive 89/392/CE. In order to continuously improve its products, TECUMSEH EUROPE S.A. preserves the right to change these instructions without prior notification.
