2.3 microINR EXPERT ON / OFF
The microINR Expert meter can be turned on by pressing the ON button located on the upper right side of
the meter or by inserting a microINR Chip into the insertion slot.
2.4 CHARGING THE microINR Expert METER
The meter uses a lithium-ion battery that can be recharged through the USB-C connection on the left side
of the unit with the power source provided in the kit.
The recommended charging time is approximately 3.5 hours.

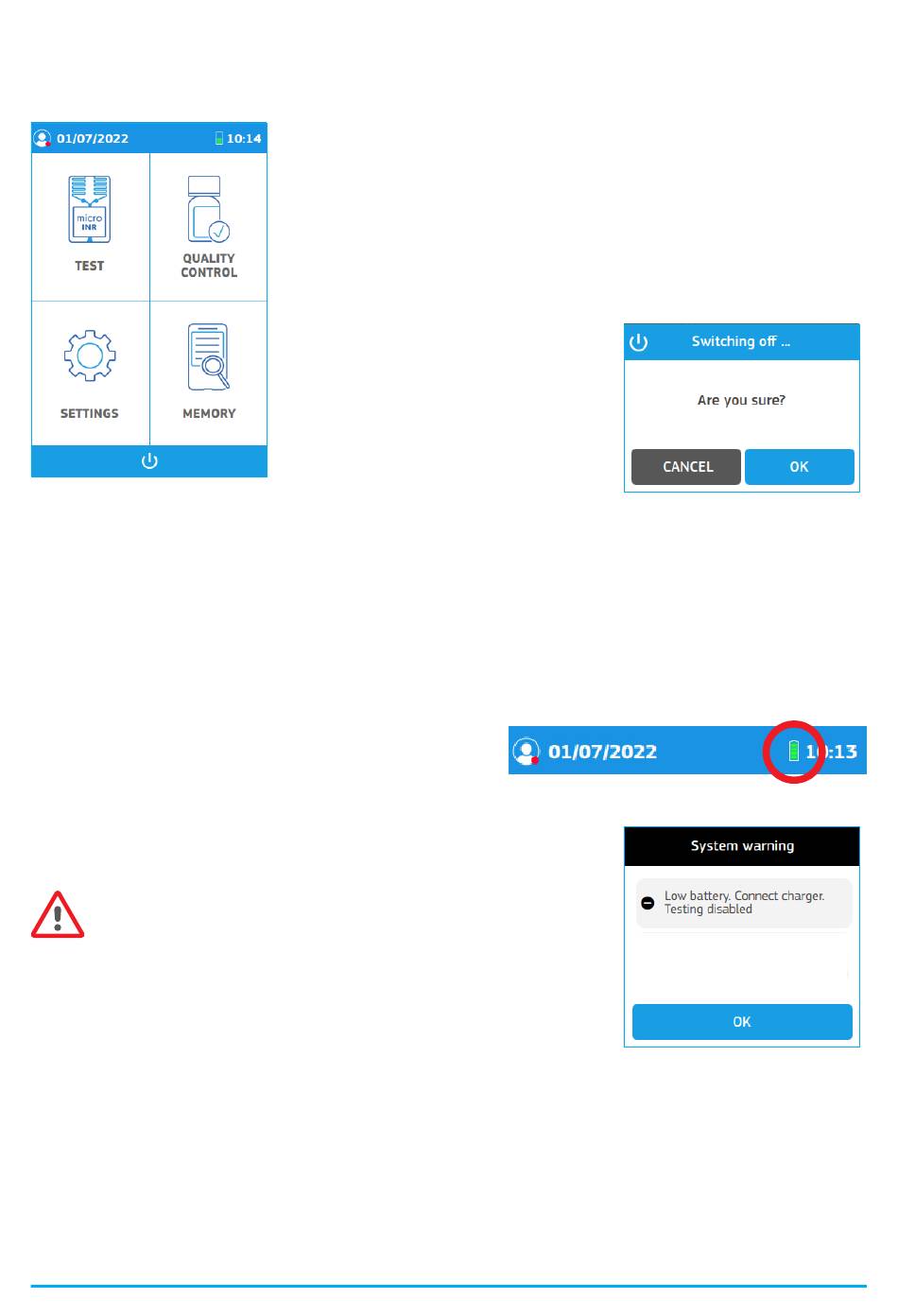

The battery level is displayed in the battery icon on the
status bar located at the top of the screen. This icon has
four segments, each representing approximately 1/4 of
the total battery capacity.
The following message will appear on the display when the battery is
depleted.
Do not use cables, chargers and plug adapters different from
those provided by the manufacturer. If you do not follow this
requirement, you may damage the meter or yourself. Do not use
loose power sockets or damaged power source units or cables.
The battery charging icon is displayed in the status bar while charging.
Disconnect the meter from the charger and the charger from the socket
once the battery is fully charged.
It is not recommended to charge the meter by connecting it to a
computer.
The meter can also be switched on by connecting it to the power source,
ethernet adaptor or a computer through the USB-C cable.
The loading screen appears temporarily when the meter is turned on
and the main menu is displayed a few seconds later.
Tap the OFF bar located at the bottom of the main menu to turn
the meter off after use. A message will be shown to confirm or
cancel shutdown.
The meter will be turned off if the
On/Off button is pressed for a
longer-than-usual time
(10-15 seconds).
07
