Redlion RL Series Owner's Manual

OWNER'S MANUAL

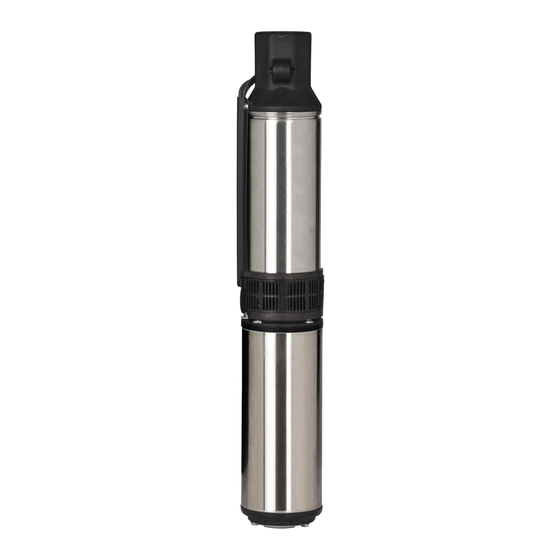

4-inch Deep Well Submersible Pump
This deep well submersible pump is ideal for the supply of fresh water to rural
homes, farms, and cabins that have 4-inch diameter and greater drilled wells to
depths of 250 feet. The RL-series offers 12 and 22 GPM models. The RS-series
includes 5, 12, and 22 GPM models. All RL-series 3-wire ½, ¾, and 1 hp models
include a control box.
This product is covered by a Limited Warranty for a period of 3 years from the
date of original purchase by the consumer. For complete warranty information,
refer to www.redlionproducts.com, or call Technical Support for a printed copy.
Specifications
RL-series Thermoplastic Discharge
Item
Model
Number
RL12G05-2W1V 14942401
RL12G05-2W2V 14942402
RL12G07-2W2V 14942403
RL12G10-2W2V 14942404
RL12G05-3W2V* 14942405
RL12G07-3W2V* 14942406
RL12G10-3W2V* 14942407
RL12G15-3W2V 14942408
RL22G10-3W2V* 14942409
*Includes control box
RS-series Stainless Steel Discharge
Item
Model
Number
RS5G05-3W2V 14942373
RS5G07-3W2V 14942374
RS12G05-3W2V 14942377
RS12G07-3W2V 14942378
RS12G10-3W2V 14942379
RS12G15-3W2V 14942380
RS22G07-3W2V 14942381
RS22G10-3W2V 14942382
RS22G15-3W2V 14942383
Control Boxes
Item
Model
Number
RLCB05-230 640189
RLCB07-230 640190
RLCB10-230 640191
RLCB15-230 640222
Discharge
HP
(FNPT)
½
½
¾
1
1¼ ½
¾
1
1.5
1
Discharge
HP
(FNPT)
½
¾
½
¾
1¼ 1
1.5
¾
1
1.5
HP
½
¾
1
1.5
Wire Volts Amps
115 12
6
2
8
10.4
6
230
8
3 10.4
11.5
10.4
Wire Volts Amps
6.0
8.0
6.0
8.0
3 230 10.4
11.5
8.0
10.4
11.5
EN EN
English English English English
RL-series RS-series
Shut Off Max Flow
(ft / m) (GPM / LPM)
212 / 64.6
212 / 64.6
333 / 101.5
434 / 132.3
12 / 45.4
212 / 64.6
333 / 101.2
434 / 132.3
548 / 167.0
260 / 79.2 22 / 83.3
Shut Off Max Flow
(ft / m) (GPM / LPM)
305 / 92.9
7.5 / 28.3
465 / 141.7
215 / 65.5
285 / 86.8
18 / 68.1
400 / 121.9
520 / 153.4
175 / 53.3
225 / 68.5 32.5 / 123.0
282 / 85.9
