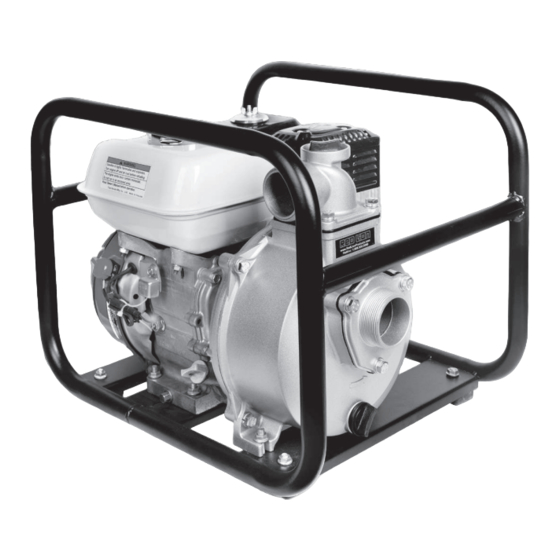

4RLAG-2H 617056
Owner's Manual
Table Of Contents
Safety Instructions ............................................................................... 2
Introduction ..........................................................................................4
Application ...........................................................................................4
Specifications .......................................................................................4
Pump Placement ................................................................................. 5
Operation .............................................................................................. 5
Maintenance ......................................................................................... 7
Cleaning ................................................................................................ 7
Draining the Pump .............................................................................. 8
Transporting the Pump ....................................................................... 8
Storage ................................................................................................. 8
Troubleshooting ...................................................................................9
Replacement Parts .............................................................................10
redlionproducts.com
Limited Warranty .................................................................................11
Advertisement
Table of Contents
Related Manuals for Redlion 4RLAG-2H
Summary of Contents for Redlion 4RLAG-2H
-
Page 1: Table Of Contents
ENGLISH ENGINE-DRIVEN ALUMINUM WATER PUMP 4RLAG-2H 617056 Owner's Manual Table Of Contents Safety Instructions ................2 Introduction ..................4 Application ...................4 Specifications ..................4 Pump Placement ................. 5 Operation ....................5 Maintenance ..................7 Cleaning ....................7 Draining the Pump ................8 Transporting the Pump ............... -
Page 2: Safety Instructions
SAFETY INSTRUCTIONS Hazard Messages Failure to follow installation/operation procedures and all applicable codes may result in the following hazards: This manual includes safety precautions and other important information in the following formats: Risk of death, personal injury, or property damage. Indicates an imminently hazardous situation •... - Page 3 Product Specific Precautions Rental companies and private owners who rent or lend this pump to others: All persons to whom you rent or lend this pump must have access Risk of bodily injury or equipment damage. to and read the product’s owner's manuals. Keep the manuals with the •...
-
Page 4: Introduction
Total head is the sum of the suction head and the discharge head. The elevation above sea level and friction losses must be taken into consideration. SPECIFICATIONS Model 4RLAG-2H Engine Honda™ GX120, Air Cooled, 4 Stroke, OHV, 118 cm Performance 4.0 HP @ 3600 rpm... -
Page 5: Pump Placement
PUMP PLACEMENT Risk of injury or property damage from fire. • The pump must be at least 5 feet from structures having combustible walls and/or other combustible materials such as leaves, grass, and brush. • Reflective exhaust heat may damage the fuel tank, causing fire. Keep at least 3 feet of clearance on all sides of the pump for adequate cooling, maintenance, and servicing. - Page 6 Priming the Pump Risk of damage to equipment. • Do not operate the pump without priming it. Water is required to lubricate the pump seal. Operating the pump dry will permanently damage the pump seal. Be sure pump housing is completely filled with water before starting the engine. 1.
-
Page 7: Maintenance
MAINTENANCE Risk of severe injury or property damage from fire or projectiles. • Never start or operate a pump known or suspected to be damaged, defective or malfunctioning. • Do not make adjustments or repairs to the pump or engine while engine is operating. •... -
Page 8: Draining The Pump
DRAINING THE PUMP Risk of injury or damage to equipment. • Do not remove priming plug, drain plug, pump housing or inlet or discharge hose fittings when pump is hot. Hot water and/or vapor inside could be pressurized. If the pump is subject to freezing temperatures, pump housing must be thoroughly drained of any water to prevent damage from freezing. 1. -
Page 9: Troubleshooting
Troubleshooting Problems Causes Solutions Make sure suction hose is double clamped at joints, clamps are tight, fittings have Air leak in suction hose thread compound and are tight, with no nicks or cuts in hose The suction and/or discharge hose(s) may be blocked, Check to see that the hoses and valves are in good working order Pump will not pump or the valve(s) are closed, faulty and/or blocked... -
Page 10: Replacement Parts
REPLACEMENT PARTS 13C,D 12C,D 13C,D 12C,D 6B,F 3B,F 2A,B,F REPLACEMENT PARTS ITEM GROUP DESCRIPTION PART # Adapter 617326 O-ring, 218mm NBR 617326 617305 617315 Mechanical seal 617305 617315 Impeller 617315 Volute casing 617315 Volute packing 617305 617315 Pump casing 617326 Gasket 617345 Discharge flange... -
Page 11: Limited Warranty
LIMITED WARRANTY THIS WARRANTY SETS FORTH THE BRAND’S SOLE OBLIGATION AND PURCHASER’S EXCLUSIVE REMEDY FOR DEFECTIVE PRODUCT. Engine and Emissions Control System (ECS): The Red Lion brand (hereafter “the Brand”) is not liable for the ECS or related components. Please refer to the engine manufacturer’s owner’s manual for details regarding the engine and emissions control system (ECS) warranties. - Page 12 THE BRAND SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES SUCH AS, BUT NOT LIMITED TO: DAMAGE TO OR LOSS OF OTHER PROPERTY OR EQUIPMENT, LOSS OF USE OF EQUIPMENT, FACILITIES OR SERVICE, LOSS OF PROFIT OR SALES, COST OF PURCHASES OR REPLACEMENT GOODS, CLAIMS OF CUSTOMERS OF THE PURCHASER, FAILURE TO WARN AND/OR INSTRUCT, LOSS OF OTHER PRODUCTS, OR COSTS OF ENVIRONMENTAL REMEDIATION, OR DIMINUTION IN PROPERTY VALUE.
