Redlion RL-SWJ Series Owner's Manual

OWNER'S MANUAL
R R R R RL-SWJ Series Shallow Well Jet Pump L L L - - S S W W J J S S e e r r i i

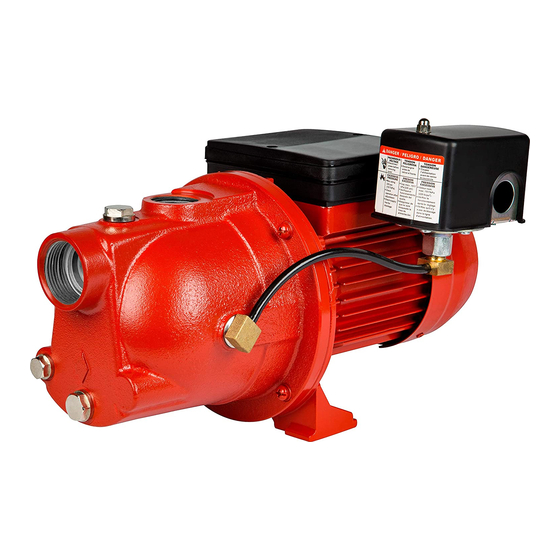

The shallow well jet pump is ideal for the supply of
fresh water to rural homes, farms, and cabins. This
pump is suitable for installations where the vertical
distance from the pump to the water level does not
exceed 25 ft (7.6 m), including draw-down (less at
high altitudes). The intake is 1-1/4" FNPT while the
discharge is 1" FNPT. The pressure gauge port is
1/8" NPT.
This product is covered by a Limited Warranty for a
period of 2 years from the date of original purchase
by the consumer. For complete warranty information, refer to www.redlionproducts.com, or call Technical
Support for a printed copy.
Specifications
Model
RL-SWJ50
RL-SWJ75
RL-SWJ100
e e s s S h S h allow Well
Item Number
97080502
97080701
97081001
Jet Pump
HP Volts
1/2 115/ 230
3/4 115/ 230
1 115/ 230

Table of Contents

INSTALLATION - - - - - - - - - - - - - - - - - - - - - - - - - 3
Typical Installations - - - - - - - - - - - - - - - - - - 3
Pump Location - - - - - - - - - - - - - - - - - - - - - 4
Physical Installation - - - - - - - - - - - - - - - - - - 4
Electrical Connections- - - - - - - - - - - - - - - - - 5
OPERATION - - - - - - - - - - - - - - - - - - - - - - - - - - - 6
Priming with an In-line Check Valve - - - - - - - 6
Priming with a Foot Valve - - - - - - - - - - - - - - 6
MAINTENANCE - - - - - - - - - - - - - - - - - - - - - - - - - 7
Periodic Maintenance - - - - - - - - - - - - - - - - - 7
Draining- - - - - - - - - - - - - - - - - - - - - - - - - - 7
Replacing Mechanical Seals - - - - - - - - - - - - - 7
Troubleshooting - - - - - - - - - - - - - - - - - - - - 9
Replacement Parts- - - - - - - - - - - - - - - - - - - 10
EN EN
English English English English
Amps
8.4 / 4.2
9 / 4.5
13.2 / 6.6
