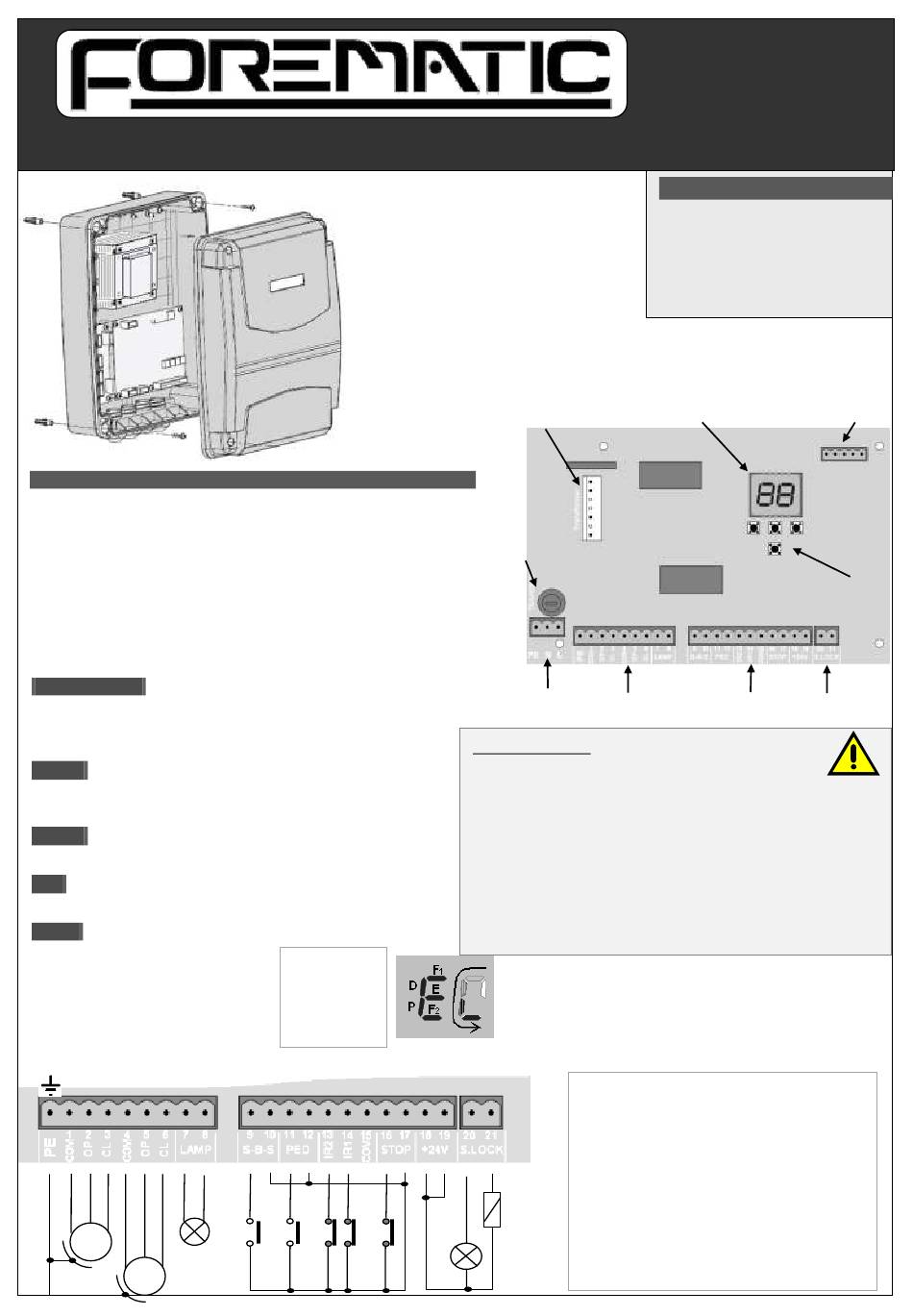

Forematic RIO-R Installation Manual

Rio-R
RIO-R installation manual

1.0 Description

RIO-R control panel is for induction motors with limit switches. For single
or double leaf gates with a electro-lock or locking magnet. Programmed
via navigation buttons and an LCD display (see page 2).
RIO-R supports two command and two safety inputs. Inputs have +5V pull
ups. Command inputs are active low. Safety inputs are N/C normally low.
A solid state lock output may be a 1 sec pulse (electro-lock) or a normally
'on' mag-lock. The 24V motion light output flashes at 1Hz. An optional
accessory plug gives power and SBS input for a keypad, loop detector etc.
SBS & Ped inputs Open – stop-close-stop function for double or
single leaf (Ped) opening. When activated during opening, the gate
stops, then re-closes after auto-close delay. When stopped during
closing, the gate stops, then waits for the next input.

Safety 1

Interrupt the beam while closing causes gate to re-open.
Gate closes when beam is restored. Delays gate closing if
broken while open. No change while gate is opening.

Safety 2

If activated during opening, the gate stops, then waits
until the next command. No response while closing.
Stop If interrupted during opening, the gate stops, then re-closes
after an auto-close delay. Stops during closing.

Display

The left digit shows the state
of the 5 inputs. Black is active. You
should have three black horizontal bars.
Right digit segments rotate anti-
clockwise during normal running.
W U V W X Y W L
M
motors include
1
capacitors &
M
limit switches
2
Installation manual
Double leaf gate panel
✓ Soft start, soft stop
✓ Self-learning limit setting
✓ Pressure sensitive reversal
✓ Autoclose & interleaf delay
✓ Force setting
✓ Electro-lock or mag-lock
F1 = IR1
E = Stop
F2 = IR2
D = Door
P = Ped
D C P C F F C E C A A L
a
2 1

Features

Transformer
Main Fuse
230Vac
supply

Safety warnings

Automatic gates can be hazardous. It is the operators responsibility
beam
of an automatic gate to be aware of, and provide adequate warning
of hazards. All users should be given a hazard awareness briefing and user
training for the automatic gate.
This manual is written for automation engineers aware of the constru cti on a n d
accident prevention rules in force. Only qualified persons may do installati on o r
maintenance work on this installation. Keep the gate in good working order wi th
regular checks on the safety devices fitted.
Operators should ensure people are clear of the gate during operation. Children
must not be allowed to play on or near the gate, or be allowed to operate the
gate. We recommended signs both sides of the gate to warning of risk of i n j ury
to pedestrians. Do not permit public access to the gate area.
K
d
- 1 -
doc.
doc.

Specifications

Supply
Motors
Aux supply
Housing
Dimensions
Remotes
Display
+
motor
plug

Motor 1

1 2
neutral, open live,

Motor 2

4 neutral, 5 open live, 6 close live
AC lamp
7 8
neutral, lamp live (during motion)
Open button
9 input, 10

Pedestrian

11 12
input,
Safety 2
13 15
input,
Safety 1
14 input, 15

Stop button

16 17
input,
DC lamp
18 (+24v),
DC lock
19
(+24v),
R12
R12
iss V1.3
230Vac @ 5A
2x 100W ACIM's
24Vdc @ 1A
ABS IP44, 1.8kg
227 x 277 x 108mm
50 max
Accessory plug
-- P
Code
Buttons
control lock
plug plug
3
close live
com (-ve)
com (-ve)
com (-ve)
com (-ve)
com (-ve)
20 switch to gnd
21
switch to gnd
