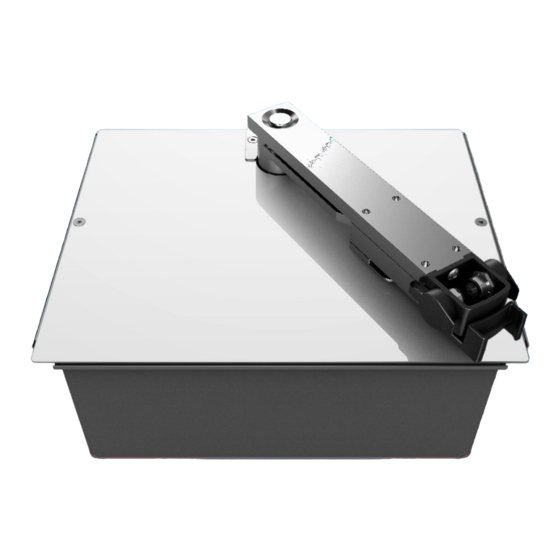

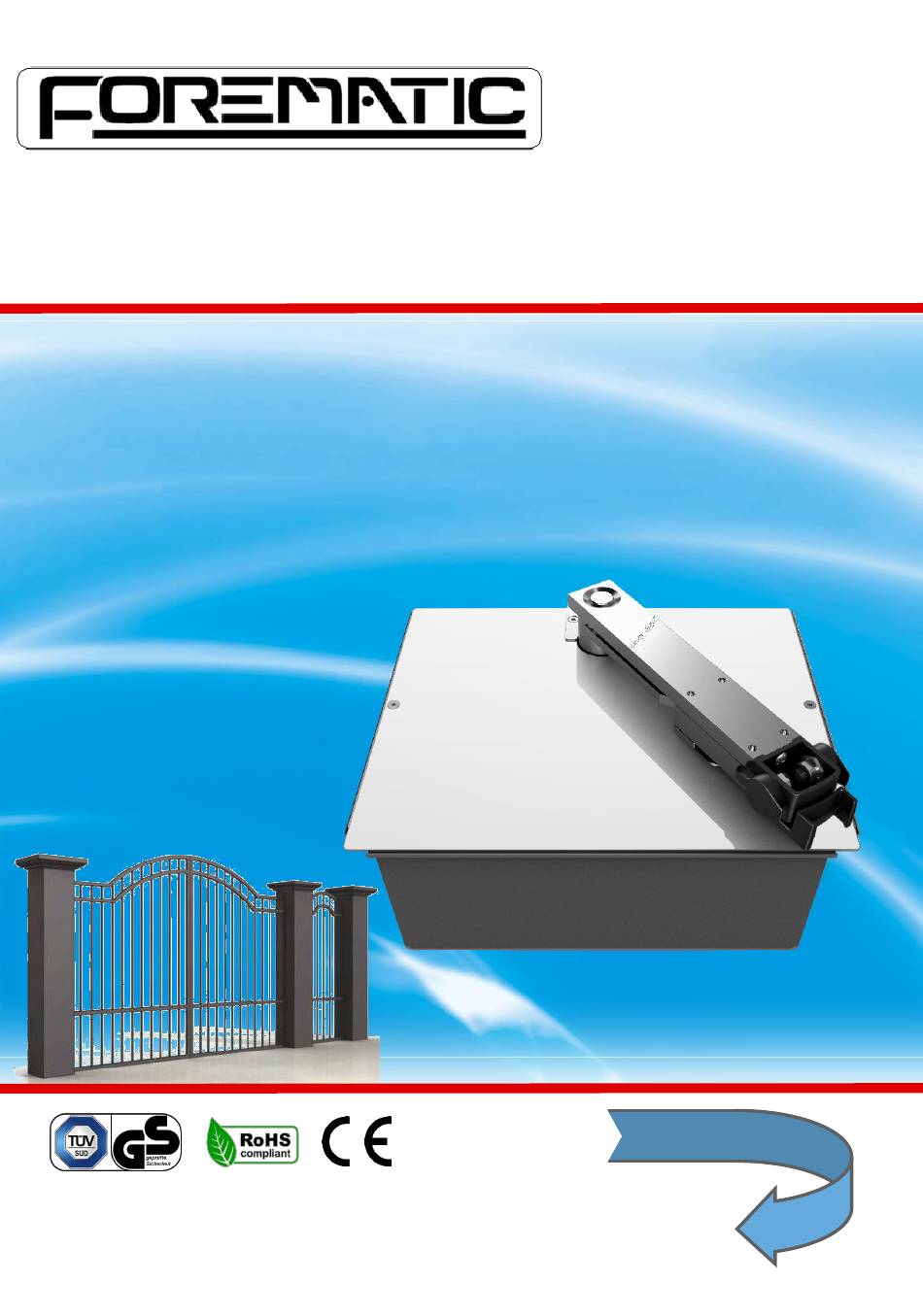

- Page 1 AXEL Underground gate opener F730 installation AXEL www.forematic.com...
-
Page 2: Table Of Contents
AXEL installation Set contents Contents Page Description & specifications AK-424 The standard set is for double leaf Responsibilities & consideration boarded gates, and heavy domestic gates. The Gate mounting set includes two underground openers, control Driveway layout panel, two remotes and a photo-beam. RIO-X Groundwork &... - Page 3 AXEL Double leaf set 2x motor casings Safety considerations 2x motor gearboxes Control panel with remote receiver European standards specify safety measures to 2x IR safety photo-beams be used on applications with perceived risk. The 2x remote controls highest rating calls for photobeams and sensitive edges, in addition to control panel PSR.
-
Page 4: Gate Mounting
Gate mounting [A] is frequently requested, but requires extra safety edges because of the crush risk between the gate and the pier. [B] recommended for safety and has a good opening angle. [C] casement must be turned through 90° and mounted on the back face of pier. -
Page 5: Driveway Layout
AXEL Driveway layout Layout, like gate mounting, can minimise extra Fig 5 safety devices without compromising safety. Sets contain one photobeam, normally wired to the re-open [F] input. The beam is fixed to the gate pier or post. A second pause photobeam on [E] input is placed outside the swing of the gate. -
Page 6: Groundwork & Cable Ducts
Groundwork & cable ducts Piers can be constructed hollow, infilled, or with steel post reinforcement. That is a decision beyond the scope of this manual. Two concrete bases are required for the piers, Foundation depth depends on the ground and set at precisely the same level. -
Page 7: Pier Design & Fitting
AXEL Pier design This is a good point to consider any other ducts or cables that may be needed. See the accessory page for more options, such as an intercom, a keypad, or a vehicle sensor. The nearside pier normally has a power supply cable and the control panel. - Page 8 Fitting the motors The 2 casement orientations are shown in Fig.12 with the motor positions. Place the motors over the casement studs, then bolt Fig 12a them down. Gate fixing levers will not be fitted until later, though they are shown on the diagram.
- Page 9 Running cables We recommend star wiring. A five core 0,6mm cable (DC519) is run from the control panel to most devices. Exceptions are the motor cables which are 3 core 1mm, and AK sets mains supply cable (3 core 5A). Lock and lamp cables may also differ, so check their cable specifications.
-
Page 10: Control Panel Wiring
RIO-X panel RIO-X is the mains panel with a 24Vac transformer. The only other main wiring is the warning lamp. RIO-XL is a low power version with batteries charged is remotely. Batteries a can also be fitted to RIO-X giving about 10hrs off grid service. - Page 11 Activation device wiring VY805 Accessories below have NO contacts. FORESEE’s wireless button button & keypad work on the remote channel so require no wiring. Exit button keyswitch is normally in the property. A FA61 on either side, or for use by authorised persons only (eg teachers) Keyswitch Vehicle sensors are normally used for leaving the property,...
- Page 12 Further wiring plans Fig 20 There are 2 safety inputs. [F] stops the gate closing (Fig24). [E] pauses the gate in either direction (Fig25). More safety devices may be added as required. Refer to the safety page for guidance on the risks. Multiple safety contacts must be wired in a chain (series) on the same input.
- Page 13 AXEL Photobeam wiring standard The first photobeam on F (yellow) is Optional FA31 on compulsory. The E input (brown) is FA31 on input F optional. Inputs can take multiple input E safety devices when their volt free contacts are wired in series. Note jumper position ! Fig 24 Fig 25...
- Page 14 Static settings Open & close delays - DIP1 to 4 The first leaf needs to start to open a few secs before the second leaf. There is a similar delay for closing. If your drive is straight the delays can be set to minimum, so set all 4 DIPs off.
- Page 15 Run time setting LED1 Programming indicator Fine adjustment LED2 Flashes while closing. On when closed Fine adjustments set the safe LED3 running of the gate. Follow the Flashes while opening. On when open order below. Extra activation and LED4 Indicator for input [F]. On when safe. safety devices can be wired in LED5 Indicator for input [E].
-
Page 16: User Instructions
User Instructions Deleting You can save up to 50 remotes. There are two remote channels. remotes Pedestrian channel opens one gate only. Main opens both. You will need to open the control panel to find the ‘CODE’ button. The You cannot delete remotes one at a control panel will not accept coding while the gate is moving. - Page 17 AXEL Fault finding There are 8 LED’s on RIO-X that show the states of inputs and the gate position. Gate runs slowly This happens when there LED1 indicates a correct remote is being received, has been a loss of power. The controller needs or that you are in limit or remote learning mode.
- Page 18 Gate Safety Code of Practice Overview Safety device applications The gate installer builds a machine on site. The Safety devices such as sensitive edges and photo machine must be declared safe by the builder and beams are to stop, and if necessary, reverse the comply with the EU Machinery Directive.
- Page 19 AXEL This guide is a helpful reference to identify risk. It is not a directive. It does not suggest solutions. Crush hazards ‘Draw in’ or Shear Gaps where a body marked C1 to C3 part could be drawn in are not allowed. Limbs have Crushing is between a moving part and a stationary different nominal sizes.
-
Page 20: Warranty
Complete your home security with a Foresee gate automation set PICO sliding gate motors for confined spac- es, sloping drives, and sharp corners RETRO AVANTI PRIMO Garage door opener Warranty The warranty period for Radio Equipment is 24 months. The period for replacement parts is 6 months or to the end of the Warranty covers defects to the Foresee product proven current warranty period, which ever is longer.
