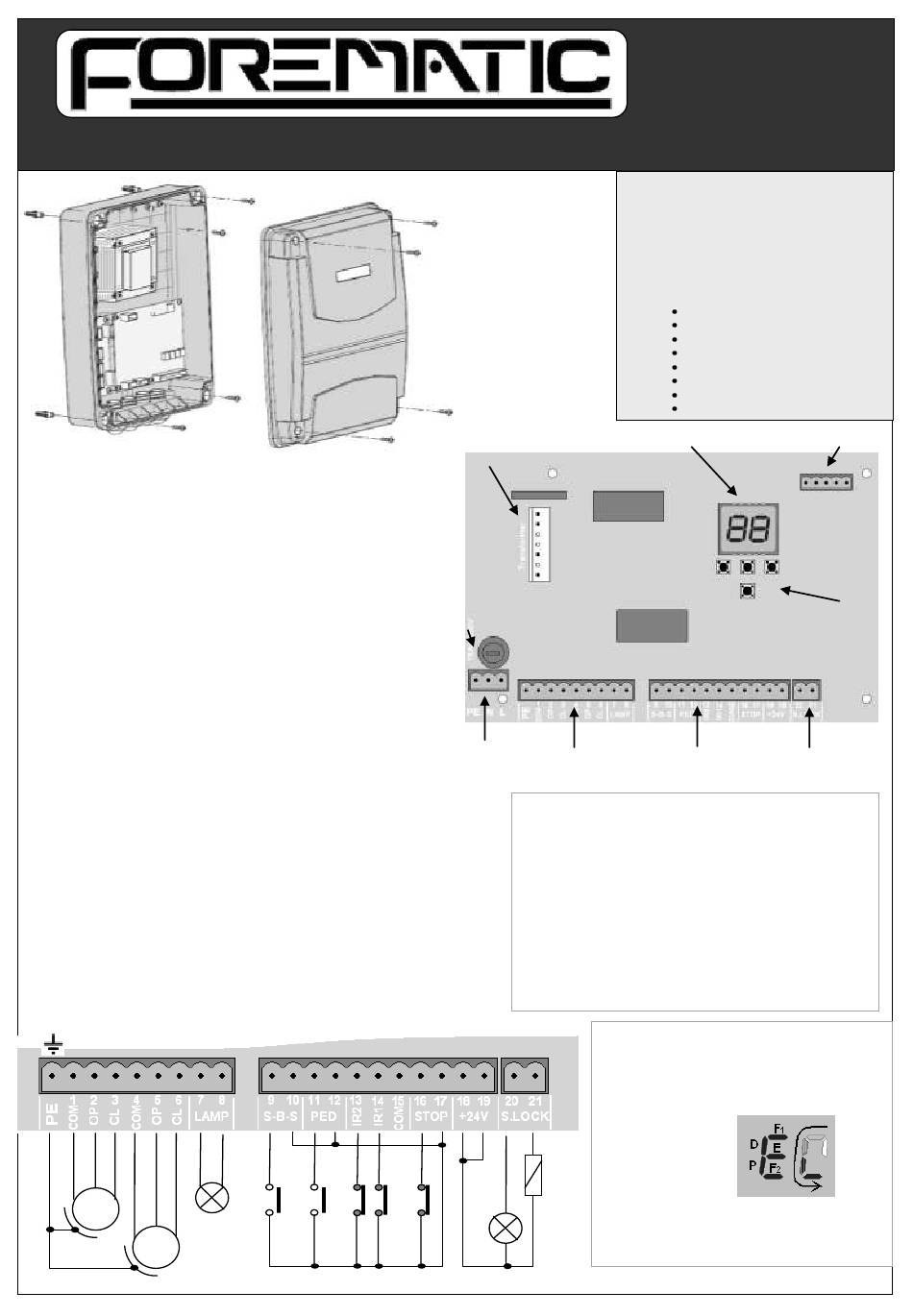

Forematic RIO-R Installation Manual

Rio-R
RIO-R installation manual

1.0 Description

RIO-R panel is for AC induction motors with limit switches.
For single or double leaf gates / doors. Programming is
with navigation buttons and an LCD display.
1.1 Inputs & outputs
RIO-R supports two command inputs and two safety inputs.
Inputs have +5V pull ups, switching to ground. Command
inputs are active low. Safety inputs are N/C normally low.
Solid state switching outputs are provided for an electric
lock that operates for 1sec on opening. A solid state 24Vdc
flashing light output switches at 1Hz. An accessory header
is provided for powered external trigger devices such as a
keypad, loop detector, exit device, or access control device.

1.2 Input functions

SBS input Open – stop-close-stop function. When stopped
during open the gate re-closes after auto-close delay. When
stopped during closing, gate waits for next command.
Ped input Same function as SBS input, but on one gate.
Safety 1 Re-opens the gate during closure. Assuming the
danger is removed, the gate re-closes after normal delay.
No action during opening. Delays close if active while open.
Safety 2 If activated during opening, the gate stops dead.
Stays still until next command. No response while closing.
Stop During opening, stops, then re-closes after
normal auto-close delay. Stops during closing.
W U V W X Y W L
M1
M2
Wiring assumes motors include capacitors & limit switches
Installation manual
D C P C F F C E C A A L
a 2 1
Double leaf
gate control
panel
Transformer
connector
Main
Fuse
230Vac supply motor wiring
Motor 1
Motor 2
AC lamp
Open button
Pedestrian
Safety 2
Safety 1
Stop button
DC lamp
DC lock
K
d
DC lamp does not need a flasher
- 1 -
doc.
doc.

Specifications

Supply 230Vac 50/60Hz @ 5A
2x 100W ACIM's
Motors
Aux supply 24Vdc @ 1A
Housing ABS IP44, 1.8kg
Dimensions 227 x 277 x 108mm
Receiver 433MHz rolling code
60 rolling code remote capacity
Auto-close 10s to 7mins
Single or double leaf
Soft stop, optional soft start
Interleaf delay 0 – 9s
4 force settings
Pressure sensitive reversal
Auto run time setting

Display

Accessory header
+ - P
Code
control wiring
-
1-2-3
1 neutral, 2 open live, 3 close live
-
4-5-6
4 neutral, 5 open live, 6 close live
-
7-8
7 neutral, 8 lamp live during motion
-
9-10
9 input, 10 com (-ve)
-
11-12
11 input, 12 com (-ve)
-
13-15
11 input, 12 com (-ve)
-
14-15
11 input, 12 com (-ve)
-
16-17
16 input, 17 com (-ve)
-
18-20
18 (+24v), 20 switch to gnd
-
19-21
19 (+24v), 21 switch to gnd
Display
In normal running, the left digit shows the
state of inputs. Black is active. You should
have three black horizontal bars.
F1 = IR1
E = Stop
F2 = IR2
D = Door
P = Ped
Right digit segments rotate anti-clockwise
During normal running. Both digits show
alpha numeric digits during programming.
R12
R12
iss V1.2
Buttons
lock wiring
