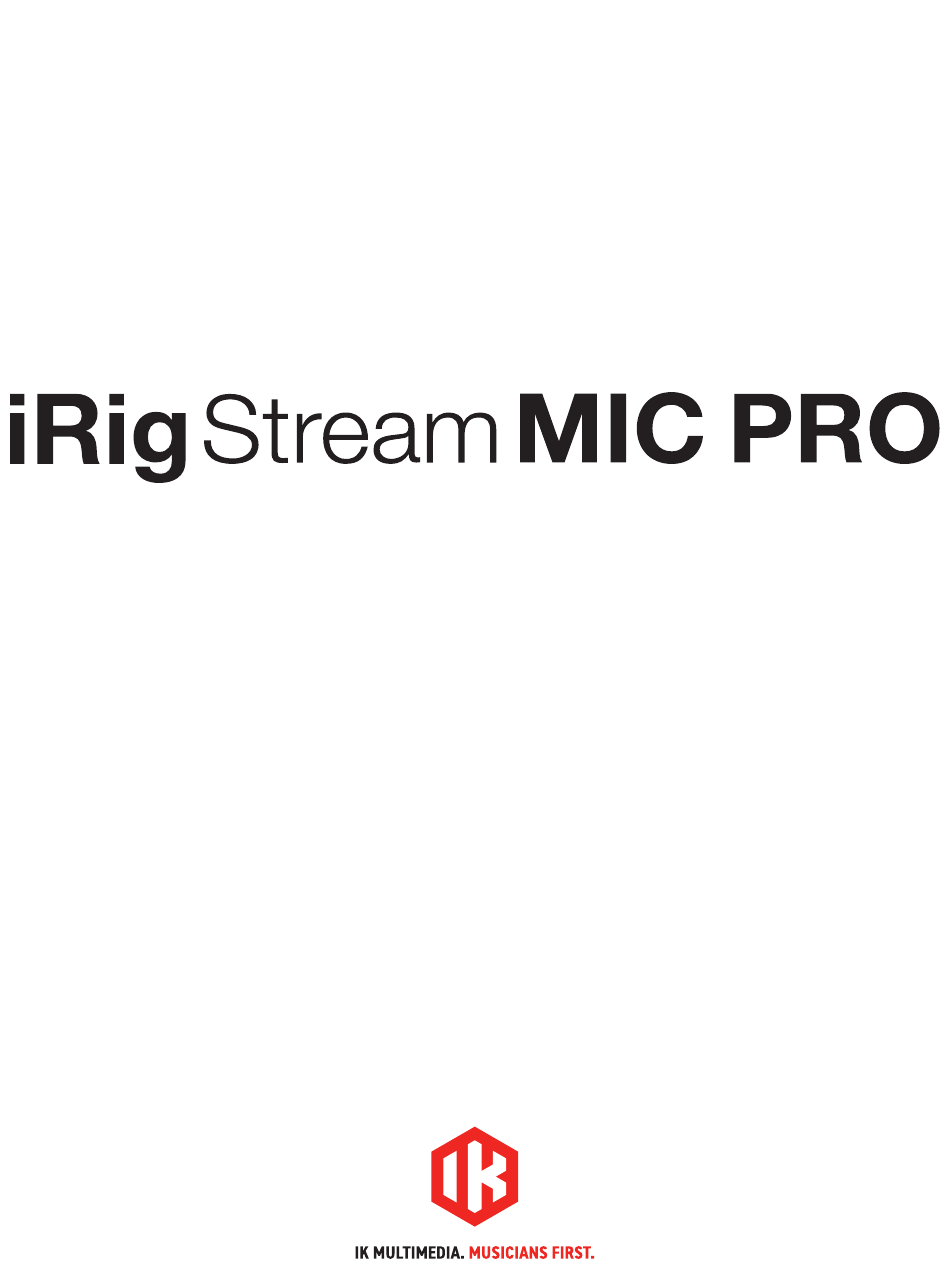

- Page 1 Professional multipattern condenser microphone USER MANUAL...
-
Page 2: Table Of Contents
Contents Table of Contents Contents English iRig Stream Mic Pro Register your iRig Stream Mic Pro 1. iRig Stream Mic Pro overview 2. Installation and setup 3. Multi-function knob and LED ring 3.1 Microphone gain control 3.2 Headphone volume control 3.3 Streaming level control... -
Page 3: English
Stream Mic Pro from your host via USB is returned to the host. The iRig Stream Mic Pro is MFi compatible and provides a mini-DIN socket to connect to an iOS device and a DC input that will allow you to charge the connected iOS device. -
Page 4: Irig Stream Mic Pro Overview
English 1. iRig Stream Mic Pro overview 1 - Dual capsule The dual capsule array delivers four pickup patterns: cardioid, omni, fig-8, stereo. 2 - Multi-function knob This single knob allows you to control all the features of the microphone including microphone gain, mute, headphone volume, overall streaming level, loopback, monitor mix, patterns and HPF. -
Page 5: Installation And Setup
6 - 1/4”-20 female thread Use this 1/4”-20 female thread to attach the iRig Stream Mic Pro to its desktop stand or use the included 1/4” to 5/8” thread adapter to attach the iRig Stream Mic Pro to any mic stand. -
Page 6: Multi-Function Knob And Led Ring
English 3. Multi-function knob and LED ring This single knob allows you to control all the features of the microphone including microphone gain, mute, headphone volume, overall streaming level, loopback, monitor blend mix, patterns and HPF. Important Note: each time the knob is pressed, the capsule signal will be temporarily muted for about 500 ms in order to minimize the vibration noise transmitted to the audio stream. -
Page 7: Headphone Volume Control
English 3.2 Headphone volume control When the headphone symbol is lit green, the knob will control the level of the headphone output and the LED ring will show the peak level of the overall streamed signal. When you move the knob to increase or decrease the headphone volume, the LED ring will temporarily show you the current level. -
Page 8: Loopback
After 2 seconds the LED ring will return showing the peak level. With the loopback function turned on, the audio that is input to the iRig Stream Mic Pro from your host via USB is returned back to the host. The Streaming level controls the overall level that is recorded/streamed. -
Page 9: Polar Pattern Control
English 3.6 Polar pattern control When one of the pattern symbols is blinking blue, you can select the polar patterns by rotating the knob and the LED ring will show the peak level of the overall streamed signal. It is possible to selected between 4 different polar patterns: cardioid, omnidirectional, figure-8 and stereo. For detailed information about the polar patterns please refer to the Polar patterns section on this manual. -
Page 10: Operation Mode Control
Hint: make sure that you change the operation mode before opening your recording/ streaming App. This because each time you change operation mode, the iRig Stream Mic Pro will restart itself. • When in 2 channel mode (Default) only two LEDs are lit on. In this configuration, the microphone acts as a 2in-2out interface. - Page 11 For example, Apps like Facebook for iOS/Android, will only support channel 1 as input of the audio streaming: this prevents from stereo or multichannel streaming. In this case, we suggest to use the iRig Stream Mic Pro as a 2 channel interface.
-
Page 12: How To Stream A Processed Signal
In order to stream a processed signal to your audience (e.g., an effected voice), follow these steps: 1. Set the iRig Stream Mic Pro to operate in multichannel mode as described above. 2. Open a DAW or an App, on the connected host, that supports multitrack recording. -
Page 13: Polar Patterns
English 5. Polar patterns iRig Stream Mic Pro has four different polar patterns to adapt to any recording situation. A polar pattern defines how much of the signal will be picked up by the microphone from different directions. Cardioid Omnidirectional... -
Page 14: Stereo
This meant that they were very sensitive to sound from the front and rear, but almost completely deaf on the sides. On iRig Stream Mic Pro this is obtained combining together the two cardioid capsules. -
Page 15: Specifications
English Specifications Common Interface type: 2 in/2 out or 4 in/2 out Conversion: 24-bit A/D, 24-bit D/A Sampling rate: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz Power: USB bus powered. When connected to an external PSU (iRig PSU 3A, not included), iRig Stream Mic Pro charges the connected iOS lightning device. -
Page 16: Warranty
English Warranty Please visit: www.ikmultimedia.com/warranty for the complete warranty policy. Support and more info www.ikmultimedia.com/support https://www.ikmultimedia.com/products/irigstreammicpro... - Page 17 Sunrise, FL 33325 4-11-1 Shiba Italy Minato-ku, Tokyo 108-0014 Japan iRig® Stream Mic Pro is a trademark or registered trademark property of IK Multimedia Production Srl. All other product names and images, trademarks and artists names are the property of their respective owners, which are in no way associated or affiliated with IK Multimedia.
