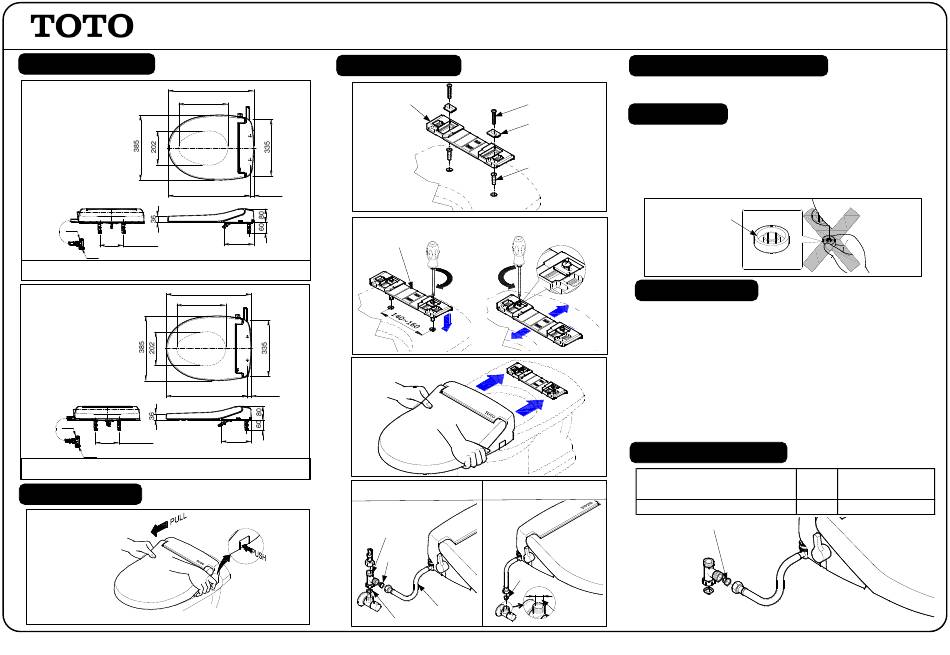

Toto TCW07S Quick Start Manual

SPECIFICATIONS

290
481
G ½
140~160
G ½
TCW07S
Eco-Washer (Soft Closing Model)
290
481
G ½
140~160
G ½
TCW08S
Eco-Washer w/ Bidet Function (Soft Closing Model)

MAINTENANCE

You can remove the eco-washer when cleaning the closet
S060100S

INSTALLATION

1
504
0 +30
23
-30 0
2
177
Base
plate
504
3
0 +30
23
-30 0
177
4
Base
Bolt
Plate
Washer
Rubber
Bushing
Adjustment back and front.
With Joint
Without Joint
Joint
Strainer
Strainer
Ø13
Hose
Valve Hole
Packing
ECO-WASHER TCW07S / TCW08S

OPERATING CONDITIONS

1. Water supply pressure : 0.05 ~ 0.5 MPa.
2. Ensure that water supply is clean ( No Sand, Dirt, Etc )
ATTENTION
Don't use abrasive cleaners or solvents on faucets and fittings.
1.
2. As the product model is constantly updated, the actual product
may not look the same as it shown in the diagram, but the basic
installation principles are the same.
Don't remove the flow regulator because it will damaged the
3.
system.
Flow regulator

DAILY CARE

Cleaning the main unit, toilet seat and lid.
■
Wipe the components with a soft damp cloth.
* Wet and wring out a soft cloth for wiping the surface of the
component
■
Cleaning very dirty components.
* Wet a soft cloth with diluted dish detergent and wipe down
the component surfaces.
* Then wipe off the detergent solution with a damp cloth.
■
If toilet bowl cleaner gets on the plastic components.
* Wipe down the component surface with a wet cloth and wipe
dry

TROUBLESHOOTING

PROBLEM
Spray unsatisfactory
1. STRAINER
CHECK
SOLUTION
POINT
1 Remove and clean
R8
