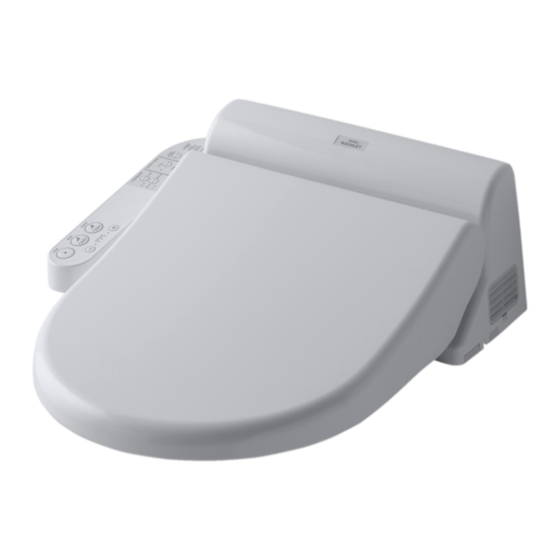

Washlet EK
TCF6402G/GE
„ Thank you very much for purchasing this Washlet. Please read
this instruction manual carefully to ensure proper use.
„ The speci¿ cations, model number, etc. are subject to change
without prior notice.
„ "Washlet" is a registered trademark of TOTO.
Instruction Manual
Cautions and warnings . . . . . . . . . . 2
Precautions for use . . . . . . . . . . . . . 6
Ef¿ cient use . . . . . . . . . . . . . . . . . . . 7
Overview of features . . . . . . . . . . . . 8
Initial settings list . . . . . . . . . . . . . . . 8
Names of parts . . . . . . . . . . . . . . . . . 9
Before use . . . . . . . . . . . . . . . . . . . . 10
How to use the Washlet . . . . . . . . . 12
Convenient functions . . . . . . . . . . . 14
Energy saver functions . . . . . . . . . 16
Smart Energy Saver . . . . . . . . . . . 17
Maintenance . . . . . . . . . . . . . . . . . . . 20
Before cleaning . . . . . . . . . . . . . . 20
Daily cleaning . . . . . . . . . . . . . . . . 21
seat and lid . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Thorough cleaning . . . . . . . . . . . . 22
and lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Washlet unit and the toilet . . . . . . . . . . . . . . .23
Periodic cleaning . . . . . . . . . . . . . 24
• Cleaning the mains plug . . . . . . . . . . . . . . . .24
• Cleaning the wand . . . . . . . . . . . . . . . . . . . . .24
Troubleshooting . . . . . . . . . . . . . . . 32
Speci¿ cations . . . . . . . . . . . . . . . . . 37
Warranty . . . . . . . . . . . . . . . . . . . . . . 38
