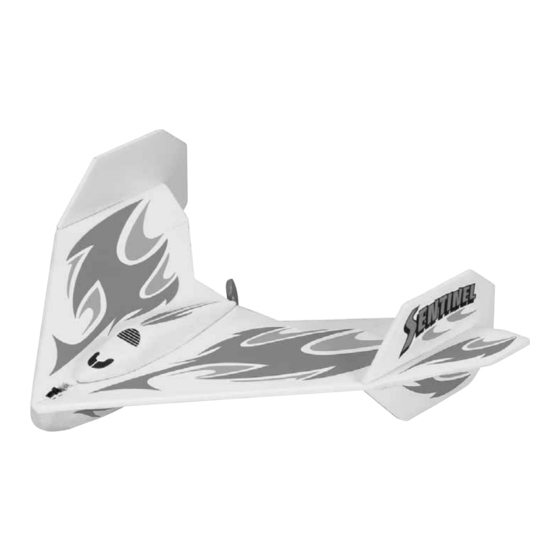

Hobbico Flyzone Sentinel HCAA0310 Instructions

ASSEMBLY OF YOUR ELECTRIC FREE-FLIGHT SENTINEL
WARNING: Read instructions carefully! Improper use of this product may result in personal injury or damage to the public.
WARNING: Choking hazard - Small parts. Not for children under 3 years. Use with adult supervision.
1. Remove the back cover of the charger
by removing the screw and install 4 "AA"
batteries according to the diagram in the
charger. Put the cover back on the
charger and re-install
CAUTION: Do not use rechargeable
(nickel cadmium) batteries. Do not mix
old and new batteries. Do not mix
alkaline, standard (carbon zinc), or
rechargeable (nickel cadmium) batteries.
2. Before charging your free-flight
Sentinel, make sure the "on-off" switch is
in the "off" position. The "off" position is
towards the front of the plane.
3. Insert the charger into the charge
socket on the top of the Sentinel. The
charger will only fit one way so match the
tab on the charger with the notch on the
charge socket.
Hobbico, Inc. guarantees this kit to be free of defects in both material and workmanship at the date of purchase. This warranty does
not cover any component parts damaged by use or modification. In no case shall Hobbico's liability exceed the original cost of the
purchased kit. Further, Hobbico reserves the right to change or modify this warranty without notice. In that Hobbico has no control
over the final assembly, no liability shall be assumed nor accepted for any damage resulting from the use of the final user-
assembled product. By the act of using the user-assembled product the user accepts all resulting liability. If the buyer is not
prepared to accept the liability associated with the use of this product, the buyer is advised to immediately return this kit
in new and unused condition to the place of purchase.
Entire Contents © Copyright 2004
™
™
Requires 4AA Alkaline batteries (Not included)
the screw.
4. Push and hold the charge button on the
charger. On the first charge, only charge
the Sentinel for 15 seconds. For longer
flights, you may increase the charge time
up to 60 seconds.
5. Never charge the Sentinel for more
than 60 seconds. If you do, you may
overheat the batteries in the Sentinel or
the charger and damage them.
CHARGING
WARRANTY
™
Replacement Parts
HCAP0129 Charger
HCAQ3304 Propeller (2)
6. When charging is complete, remove the
charger from the Sentinel.
CAUTION: Keep fingers, face, clothing
and other objects away from the propeller
when running.
HCAZ3046 for HCAA0310
HCAA0310
