  • Page 1 NV-WA40W Installation and User Guide...

  • Page 2: Table Of Contents

    Introduction The NV-WA40W-AMP is a versatile 40-watt in wall zone amplifier perfectly suited to a variety of tasks. Its design allows two line level sources to be permanently wired into the back panel as a switchable input A or B, and two optional front panel stereo mini inputs allows any local source to be easily amplified to dedicated speakers.

  • Page 3: Wiring Diagram

    NV-WA40W Wiring Diagram WA40W-AMP Front 16VDC 2.81A A / B WA40W-AMP Back INPUT A INPUT B...

  • Page 4: Nv-Wa40W-Amp Front Panel Features

    3. IR Sensor: The WA40W-AMP is capable of receiving IR (Infrared) light signals from the NuVo wireless remote control. This enables the power, volume and A/B source selection to be done wirelessly. 4. Audio Inputs: Two stereo inputs are available for front panel use with any device that provides a stereo line level signal.

  • Page 5: Nv-Wa40W-Amp Back Panel Features

    16VDC 2.81A NV-WA40W-AMP Back Panel Features 1. DC Input: This 16V DC, 2.81A input connects to the included power supply. Once connected, the power supply can plug into any AC power source. 2. Speaker Output: The speaker output section terminates with standard audio wire.

  • Page 6: Nv-Wa40W-Rc Remote Control

    A / B NV-WA40W-RC Remote Control (sold separately) 1. Volume: These buttons increase and decrease the signal output of the amplifer. 2. A/B: This button toggles between the A and B hardwired inputs on the back panel or the individual front panel inputs. Use of the front panel inputs will override those on the back panel.

  • Page 7: Installing The Nv-Wa40W-Amp

    Installing the NV-WA40W-AMP Step 1: Choose the desired location of the WA40W-AMP. It is designed to fit into a standard 35mm deep UK back box. The WA40W-AMP dimensions are a standard 50 x 50mm UK size, and has a screwless trim plate kit included in the package. Make the appropriate cutout for the mounting back box.
  • Page 8 Step 3: Along with the speaker wire, route the power supply to the same cutout and terminate the positive and negative leads at the back of the WA40W-AMP, as shown in fig. 2. Fig. 2 16VDC 2.81A...
  • Page 9 Step 4: Connect the optional back panel audio inputs. There are two hardwired audio inputs on the back of the WA40W-AMP. They are labeled Input A and Input B. Two individual audio sources can be wired to these inputs simultaneously. The actual source for playback is selected from the front Panel A/B button, or from the A/B button on the wireless remote control.

  • Page 10: The Nv-Wa40W-Spk Speakers

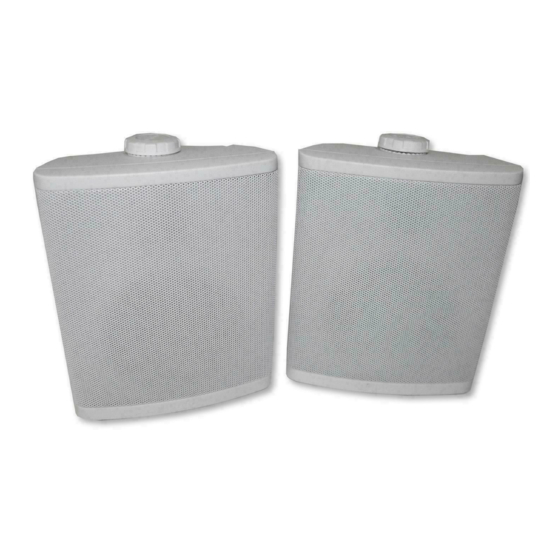

    The WA40W-SPK Speakers The NV-WA40W package includes a pair of 0n-wall speakers. These are easily mounted to any wall using the included brackets, as shown in fig. 3. Fig. 3 To properly terminate the speaker, strip about 5 to 6mm of insulation, exposing the inner copper wire.

  • Page 11: Nv-Wa40W Specifications

    WA40W-AMP Approvals Unit Size 110mm x 42mm x 14mm CE-EMC (EU), FCC (USA and Canada) 4.33” x 1.65” x 0.55” Shipping Size 296mm x 245mm x 280mm 11.65” x 9.65” x 11” NuVo reserves the right to change specifications without notice.

  • Page 12: Nv-Wa40W Line Drawing

    28.8 NV-WA40W-AMP-UK 123.8 79.4 28.8 NV-WA40W-AMP-DC...
  • Page 13 EC Declaration of Conformity We: NuVo Technologies, LLC. 3015 Kustom Drive Hebron, KY USA 41048 Declare that the Product model numbers: NVWA40W-UK/ NVWA40W-AMP-UK/NVWA40W-DC/NVWA40W-AMP- DC/NVWA40W-SPK/NVWA40W-RC Power adaptor: NVWA40W-PS-UK/NVWA40W-PS-NA/NVWA40W-PS-EU/NVWA40W-PS-AU to which this declaration relates is in conformity with the following standards: EN55013: 2001+/A1: 2003+/A2: 2006: Limits and methods of measurement of radio disturbance characteristics of broadcast receivers and associated equipment.

  • Page 14: Fcc Compliance Statement

    FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, it may cause harmful interference to radio communications.
  • Page 15 Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. ® ENERGY STAR Compliance ® As an ENERGY STAR partner, NuVo has determined that product meets the ® ® ENERGY STAR guidelines for energy efficiency. The ENERGY STAR program is a partnership with electronic equipment manufacturers to promote energy-efficient products.
  • Page 16 WA40W 1215...
