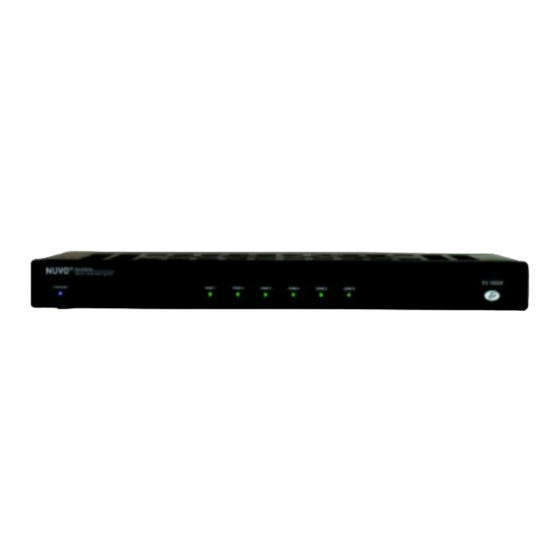

Nuvo NV-E6GMS Specifications

Nuvo NV-E6GMS Specifications

Six-source, six-zone audio distribution system
Hide thumbs Also See for NV-E6GMS:

Advertisement

Zone/Room 1
Zone/Room 2
Zone/Room 3
Zone/Room 4
2 OF 2-Follow th...
M3A
M3A
2 OF 2-Follow th...
2 OF 2-Follow th...
M3A
M3A
2 OF 2-Follow th...
drift-Edge of Tom
drift-Edge of Tom
drift-Edge of Tom
drift-Edge of Tom
1:19
3:48
1:19
3:48
1:19
3:48
1:19
MENU
MENU
MENU
MENU
OK
OK
OK
Diagram shown with NuVo P2100
Diagram shown with NuVo NV-P2100
audio amplifier powering zone 1.
audio amplifiers powering zone 1.
5
6
FIXED
VAR
TRIG
ZONE
1
1
2
ZONE
2
ALLPORT CONNECTION
Source 1
Source 3
Source 5
Audio
Audio
Tuner 1
Tuner 3
CD 2
Out
Out
Source 2
Source 4
Audio
Audio
Tuner 2
CD 1
Out
Out
Zones 1-6 Power Amplifier Outputs
Continuous Average Output Power
40W (20W x 2)
Two channels driven 30-20kHz @1% THD
Rated Distortion (1/2 power)
0.40%
Rated Impedance
6 Ohms
Damping Factor
50+
Frequency Response (20-20kHz)
±2dB
Zones 1-6 Preamplifier Outputs
Variable output
0-2.4V
Fixed output
2.4V
Impedance
1k Ohms
Source Inputs 1-6
Input Impedance
20K
Input Sensitivity for rated power
300mV RMS
Input Overload
2.4V RMS
Emitter Outputs
Source Outputs
6
Sum Outputs
1
Output Drive Current
20mA
Output Drive Voltage
5V
Compatible with single and dual emitters
Essentia system package ships complete with the following:
- The Essentia six-source, six-zone amplifier
- Six sleek single gang Control Pads
(each with white, ivory, almond, and black trim plates)
- Six IR emitters
- Allport connection hub, Allport cable, and Network cable
- One remote with batteries
- Rack ear mounts
- Power cable
Zone/Room 5
Zone/Room 6
Allport
speaker and Control Pad
M3A
2 OF 2-Follow th...
M3A
2 OF 2-Follow th...
drift-Edge of Tom
drift-Edge of Tom
3:48
1:19
3:48
1:19
3:48
connection
MENU
MENU
OK
OK
OK
HIGH EFFICIENCY 200 WATT
MODEL NV-P2100
STEREO AMPLIFIER
120V
60HZ
250
WATTS
NuVo Technologies Cincinnati Ohio. USA
AUDIO
CONTROL
SPEAKER
USE ONLY WITH 250V FUSE
SENSITIVITY
POWER
VOLTAGE
UNIT
OUTPUT POWER
OdBV = 1.0RMS
MODE
TRIGGER
ON
8 OHM: 70W X 2
INPUT
LEFT
RIGHT
ON/OFF SWITCH
3-30 VOLTS
+12VDC
4 OHM: 100W X 2
0
0
AUDIO
AC/DC
AC OR DC
100mA
2
+6
-12
+6
-12
INPUT
OUTPUT
30 33 118
N1839
30 33 118
N1839
18 07
IR OUTPUTS
STATUS
MUTE
MO DE L NV-E6 GM
AU DI O DI ST RI BU TI ON S YS TE M
SI X SO UR CE S IX Z ON E
Nu Vo Techn ol og ie s LL C • He br on , Ke nt uc ky U SA
ww w.nu vo te ch no lo gi es .c om
3
4
5
6
SUM
NuVoNet
LINK
RS232
RoHS
CO NF OR MS TO UL
ST D. 60 06 5 CE RT IF IE D
TO CAN /C SA ST D.
C2 2. 2 No .6 00 65 :0 3
100~ 240V
50~60Hz 130W
30 33 118
N1839
MADE IN CHINA
Essentia
Audio
Wiring Diagram
Out
Source 6
Audio
Sat.
Out
System
System On Output
5V @ 20mA
External Mute Output
3.3-10V DC
Zone Trigger Outputs
Output Power
5V @ 20mA
Outputs
2 (zones 1, 2)
Power Requirements
Power Supply
85-265VAC 50/60Hz
Power Consumption all channels
150VA (150W)
at maximum available output
Power Consumption average
70VA (70W)
operating conditions
Power Consumption no signal
18VA (12W)
Standby Power Consumption
0.8W
USA Safety Listing (UL 6500)
Canada Safety Listing (CAN/CSA E60065.00)
CE Listing/SEMKO (EN60065, EN55013,
EN55020, EN6100-3-2, EN6100-3-3/A1)
Australia C-Tick
Physical Specifications
Unit Size Millimeters
44H x 430W x 250D
Unit Size Inches
1 3/4H x 17W x 9 7/8D
Shipping Size Millimeters
265H x 558W x 375D
Shipping Size Inches
10 1/2H x 22W x 14 3/4D
Unit Weight Pounds
6.65 (3.0kg)
Shipping Weight Pounds
16.5 (7.5kg)
Keypad Size Millimeters
66H x 33W x 30D
Keypad Size Inches
2 5/8H x 1 1/4W x 1 1/8D
NuVo reserves the right to change specifications without notice.
www.nuvotechnologies.com
3015 Kustom Drive, Hebron, KY 41048
Phone: 859-817-7200 Toll Free: 866-796-4904
Essentia
®
Six-Source, Six-Zone Audio Distribution System
