Summary of Contents for Ignition 2Bright Expo 575 WW

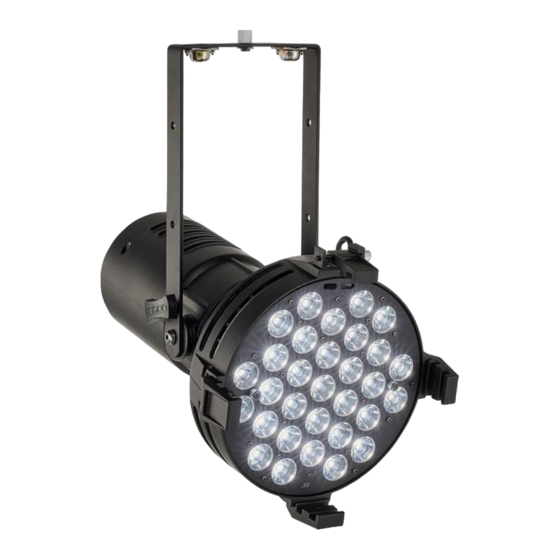

- Page 1 2Bright Expo 575 WW, 2Bright Expo 575 CW LED Spotlight...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 03.03.2023, ID: 542631, 542633...
-
Page 3: Table Of Contents
7.1 Main menu............................21 7.2 Menu overview..........................25 7.3 Functions in DMX mode........................ 26 Technical specifications........................27 Plug and connection assignments....................30 Troubleshooting............................31 Cleaning............................... 33 Protecting the environment......................34 2Bright Expo 575 WW, 2Bright Expo 575 CW LED Spotlight... - Page 4 2Bright Expo 575 WW, 2Bright Expo 575 CW LED Spotlight...
-
Page 5: General Information
Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. 2Bright Expo 575 WW, 2Bright Expo 575 CW LED Spotlight... -
Page 6: Further Information
Personal consultation For personal consultation please contact our technical hotline. If you have any problems with the device the customer service will Service gladly assist you. 1.2 Notational conventions This manual uses the following notational conventions: 2Bright Expo 575 WW, 2Bright Expo 575 CW LED Spotlight... -
Page 7: Symbols And Signal Words
NOTICE! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided. 2Bright Expo 575 WW, 2Bright Expo 575 CW LED Spotlight... - Page 8 General information Warning signs Type of danger Warning – high-voltage. Warning – dangerous optical radiation. Warning – suspended load. Warning – danger zone. 2Bright Expo 575 WW, 2Bright Expo 575 CW LED Spotlight...
-
Page 9: Safety Instructions
Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and choke! Never let children unattended use electrical devices. 2Bright Expo 575 WW, 2Bright Expo 575 CW LED Spotlight... - Page 10 Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights. NOTICE! Risk of fire Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked flames. 2Bright Expo 575 WW, 2Bright Expo 575 CW LED Spotlight...
- Page 11 When operated in harmful ambient conditions (dust, smoke, nicotine, fog, etc.), the unit should be maintained by qualified service personnel at regular intervals to prevent overheating and other malfunction. 2Bright Expo 575 WW, 2Bright Expo 575 CW LED Spotlight...
- Page 12 Only connect so many identical devices that the maximum current consumption is not exceeded. Ensure the sufficient dimensioning (wire cross section) of the power cables used for all devices connected in series. 2Bright Expo 575 WW, 2Bright Expo 575 CW LED Spotlight...
-
Page 13: Features
Features Features Powerful and flexible LED spotlight for showrooms, studios, exhibition booths, etc. LED configuration 2Bright Expo 575 WW: 31 warm white LEDs – 2Bright Expo 575 CW: 31 cold white LEDs – Replacement for 575 W daylight lamps Control via DMX (2 channels) as well as via buttons and display on the unit... -
Page 14: Installation
The distance between light output and the illuminated surface must be more than 1.5 m (19.7in). Provide sufficient ventilation. The ambient temperature must always be below 40 °C (104 °F). 2Bright Expo 575 WW, 2Bright Expo 575 CW LED Spotlight... - Page 15 Always work from a stable platform whenever installing, moving or servicing the unit. In doing so, the area underneath the unit must be cordoned off. The safety cable must be attached to the safety cable eyelet on the back of the device. 2Bright Expo 575 WW, 2Bright Expo 575 CW LED Spotlight...
- Page 16 Installation Please note that this device must not be connected to a dimmer. 2Bright Expo 575 WW, 2Bright Expo 575 CW LED Spotlight...
-
Page 17: Starting Up
Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain. Always ensure that the output of the last DMX device in the daisy chain is terminated with a resistor (110 Ω, ¼ W). 2Bright Expo 575 WW, 2Bright Expo 575 CW LED Spotlight... - Page 18 DMX input of the first slave device. Then connect the DMX output of the first slave device to the DMX input of the second slave device and so on. Connect the device to the power supply to start operation. 2Bright Expo 575 WW, 2Bright Expo 575 CW LED Spotlight...
-
Page 19: Connections And Controls
Connections and controls Connections and controls ö 2bright Expo 575 & DOWN ENTER MENU 100-240V~50/60Hz 2Bright Expo 575 WW, 2Bright Expo 575 CW LED Spotlight... - Page 20 6 [Power In] | lockable input socket (Power Twist) for the power supply of the device 7 [Power Out] | lockable output socket (Power Twist) for powering a connected device 2Bright Expo 575 WW, 2Bright Expo 575 CW LED Spotlight...
-
Page 21: Operating
Make sure that this number matches the configuration of your DMX controller. This set‐ ting is only relevant when the device is controlled via DMX. To return to the previous menu level without changes, press [MENU]. 2Bright Expo 575 WW, 2Bright Expo 575 CW LED Spotlight... - Page 22 Use [UP] or [DOWN] to select a value between ‘Hz: 01’ and ‘Hz: 30’ to adjust the flash frequency from slow to fast and confirm with [ENTER]. To return to the previous menu level without changes, press [MENU]. 2Bright Expo 575 WW, 2Bright Expo 575 CW LED Spotlight...
- Page 23 For resetting the values for the menu item ‘Resetable’ , press and hold simultaneously [MENU] and [ENTER] for five seconds. To return to the previous menu level without changes, press [MENU]. 2Bright Expo 575 WW, 2Bright Expo 575 CW LED Spotlight...
- Page 24 Use [UP] or [DOWN] until the display shows ‘Firmware Version’ and confirm with [ENTER]. ð The display shows the firmware version of the device. To return to the previous menu level, press [MENU]. 2Bright Expo 575 WW, 2Bright Expo 575 CW LED Spotlight...
-
Page 25: Menu Overview
Hz: 01 Power On Time Black out: on Ver: XXXXXXXX Total Add: 512 Slave Dim: 255 Hz: 30 Black out: o Resetable Lamp On Time Total Resetable Lamp Strikes Total Resetable 2Bright Expo 575 WW, 2Bright Expo 575 CW LED Spotlight... -
Page 26: Functions In Dmx Mode
Operating 7.3 Functions in DMX mode Channel Value Function 0…255 Brightness (0 % to 100 %) 0…255 Strobe effect (0 Hz to 30 Hz), increasing speed 2Bright Expo 575 WW, 2Bright Expo 575 CW LED Spotlight... -
Page 27: Technical Specifications
Technical specifications Technical specifications 695 mm 2Bright Expo 575 WW, 2Bright Expo 575 CW LED Spotlight... - Page 28 XLR chassis socket, 3-pin Power consumption 400 W Supply voltage 100 - 240 V 50/60 Hz Fuse 5 mm × 20 mm, 3 A, 250 V, fast-acting Degree of protection IP20 2Bright Expo 575 WW, 2Bright Expo 575 CW LED Spotlight...
- Page 29 0 °C…40 °C Relative humidity 20 %…80 % (non-condensing) Further information Design Theatre spotlight LED type unicoloured LEDs Floor housing fanless Remote control Not possible Wireless DMX Housing colour black 2Bright Expo 575 WW, 2Bright Expo 575 CW LED Spotlight...
-
Page 30: Plug And Connection Assignments
The unit offers a 3-pin XLR socket for DMX output and a 3-pin XLR plug for DMX input. Please refer to the drawing and table below for the pin assignment of a suitable XLR plug. Configuration Ground, shielding Signal inverted (DMX–, ‘cold signal’) Signal (DMX+, ‘hot signal’) 2Bright Expo 575 WW, 2Bright Expo 575 CW LED Spotlight... -
Page 31: Troubleshooting
Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers. In the following we list a few common problems that may occur during operation. We give you some suggestions for easy troubleshooting: 2Bright Expo 575 WW, 2Bright Expo 575 CW LED Spotlight... - Page 32 DMX interface circuits. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. 2Bright Expo 575 WW, 2Bright Expo 575 CW LED Spotlight...
-
Page 33: Cleaning
Before cleaning, switch off the device and disconnect mains-operated devices from the mains. Only use pH-neutral, solvent-free and non-abrasive cleaning agents. Clean the unit with a slightly damp lint-free cloth. 2Bright Expo 575 WW, 2Bright Expo 575 CW LED Spotlight... -
Page 34: Protecting The Environment
Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. 2Bright Expo 575 WW, 2Bright Expo 575 CW LED Spotlight... - Page 36 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
