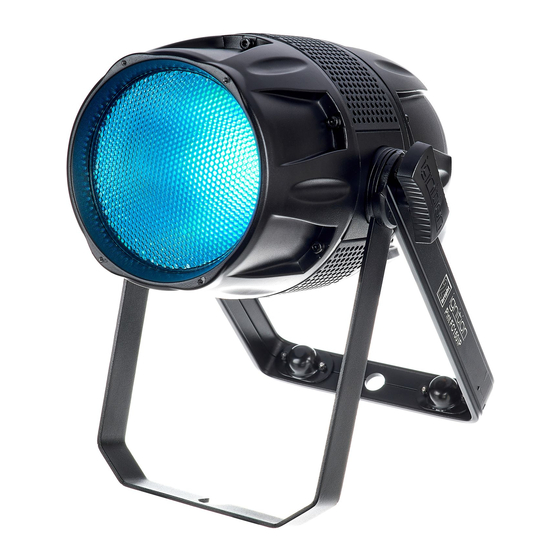

2bright Pint FC150 IP
LED spotlight

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2bright Pint FC150 IP and is the answer not in the manual?

Questions and answers

Related Manuals for Ignition 2bright Pint FC150 IP

Summary of Contents for Ignition 2bright Pint FC150 IP

  • Page 1 2bright Pint FC150 IP LED spotlight...
  • Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 02.07.2020, ID: 481586...

  • Page 3: Table Of Contents

    Connections and controls........................24 Operating..............................27 7.1 Starting the device........................... 27 7.2 Operating on the unit........................27 7.3 Menu overview..........................52 7.4 Functions in 1-channel DMX mode................... 53 7.5 Functions in 2-channel DMX mode................... 53 2bright Pint FC150 IP LED spotlight...
  • Page 4 7.7 Functions in 6-channel DMX mode................... 54 7.8 Functions in 8-channel DMX mode................... 56 7.9 Functions in 11-channel DMX mode..................58 Technical specifications........................64 Plug and connection assignment....................67 Troubleshooting............................68 Cleaning............................... 70 Protecting the environment......................71 2bright Pint FC150 IP LED spotlight...

  • Page 5: General Information

    Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. 2bright Pint FC150 IP LED spotlight...

  • Page 6: Further Information

    Our online guides provide detailed information on technical basics Online guides and terms. Personal consultation For personal consultation please contact our technical hotline. If you have any problems with the device the customer service will Service gladly assist you. 2bright Pint FC150 IP LED spotlight...

  • Page 7: Notational Conventions

    Texts and values displayed on the device are marked by quotation marks and italics. Examples: ‘24ch’ , ‘OFF’ . Text input Text inputs that are carried out on the device are indicated by typewriter font. Example: 2323 2bright Pint FC150 IP LED spotlight...

  • Page 8: Symbols And Signal Words

    ð Automatic operation is started. Switch off the device. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. 2bright Pint FC150 IP LED spotlight...
  • Page 9 This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – high-voltage. Warning – hot surface. 2bright Pint FC150 IP LED spotlight...
  • Page 10 General information Warning signs Type of danger Warning – dangerous optical radiation. Warning – suspended load. Warning – danger zone. 2bright Pint FC150 IP LED spotlight...

  • Page 11: Safety Instructions

    Extend the life of the device by regular breaks in operation and avoid switching it on and off frequently. This device is not suitable for continuous use. 2bright Pint FC150 IP LED spotlight...
  • Page 12 Always use proper ready-made insulated mains cabling (power cord). Do not modify the mains cable. Failure to do so could result in electric shock/death or fire. If in doubt, seek advice from a registered electrician. 2bright Pint FC150 IP LED spotlight...
  • Page 13 There are no user-serviceable parts inside. Do not use the device if covers, protectors or optical components are missing or damaged. WARNING! Eye damage caused by high light intensity Never look directly into the light source. 2bright Pint FC150 IP LED spotlight...
  • Page 14 15 minutes. NOTICE! Risk of fire Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked flames. 2bright Pint FC150 IP LED spotlight...
  • Page 15 Failure to do so could result in damage to the device and possibly injure the user. Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of electric shock or fire. 2bright Pint FC150 IP LED spotlight...

  • Page 16: Features

    (first code number). They are also protected against splash water from any angle (second code digit). That is why this equipment can also be used outdoors. Event technology equipment is generally only designed for temporary use however (event lighting) and not for permanent use outdoors. 2bright Pint FC150 IP LED spotlight...
  • Page 17 For technological reasons, the light output of LEDs decreases over their lifetime. This effect increases with higher operating temperature. You can extend the service life of the illuminants by providing adequate ventilation and operating the LEDs with the lowest possible brightness. 2bright Pint FC150 IP LED spotlight...

  • Page 18: Installation

    Make sure that the installation complies with the standards and rules that apply in your country. Always secure the device with a secondary safety attachment, such as a safety cable or a safety chain. 2bright Pint FC150 IP LED spotlight...
  • Page 19 When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand. 2bright Pint FC150 IP LED spotlight...
  • Page 20 NOTICE! Possible damage due to moisture Moisture entering into open connectors (plugs and couplers) of DMX or power cords can cause short circuits. Close unused connectors with end caps intended for this purpose (www.thomann.de). 2bright Pint FC150 IP LED spotlight...
  • Page 21 Always work from a stable platform whenever installing, moving or servicing the unit. In doing so, the area underneath the unit must be cordoned off. Please note that this device must not be connected to a dimmer. 2bright Pint FC150 IP LED spotlight...

  • Page 22: Starting Up

    Starting up Starting up Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. 2bright Pint FC150 IP LED spotlight...
  • Page 23 Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain. Always ensure that the output of the last DMX device in the daisy chain is terminated with a resistor (110 Ω, ¼ W). 2bright Pint FC150 IP LED spotlight...

  • Page 24: Connections And Controls

    Connections and controls Connections and controls 2bright Pint FC150 IP LED spotlight...
  • Page 25 Activates the main menu, toggles between the menu levels or closes a submenu. [DOWN] Decreases the displayed value by one. [UP] Increases the displayed value by one. [ENTER] Opens a submenu or confirms a value. 4 Bracket for floor placement or hanging 2bright Pint FC150 IP LED spotlight...
  • Page 26 7 [POWER OUT] Lockable chassis socket (Power Twist TR1 IP65) for the power supply of another device 8 [POWER IN] Lockable chassis socket (Power Twist TR1 IP65) for the power supply of the device 2bright Pint FC150 IP LED spotlight...

  • Page 27: Operating

    To activate the respectively shown menu item, press [ENTER]. Press [UP] or [DOWN] to change the respectively indicated value. Press [ENTER] to apply the displayed value. To exit a menu item without making changes, press [MENU]. 2bright Pint FC150 IP LED spotlight...
  • Page 28 Operating All set values are retained even when you switch the device off and disconnect it from the mains. 2bright Pint FC150 IP LED spotlight...
  • Page 29 DMX controller. The following table shows the highest pos‐ sible DMX address for the various DMX modes. Mode Display Highest possible DMX address 1-channel ‘1CH’ 2-channel ‘2CH’ 4-channel ‘4CH’ 6-channel ‘6CH’ 2bright Pint FC150 IP LED spotlight...
  • Page 30 Depending on the selected mode, the display shows ‘1CH’ , ‘2CH’ , ‘4CH’ , ‘6CH’ , ‘8CH’ or ‘11CH’ . Press [ENTER] to accept the selection. This setting is only relevant when the device is controlled via DMX. 2bright Pint FC150 IP LED spotlight...
  • Page 31 Press [UP] or [DOWN] to select the desired submenu or the desired value. The following sub menus are available: Menu level 4 Menu level 5 Function ‘Dimmer’ ‘000…255’ Dimmer intensity ‘Speed’ ‘000…255’ Running speed from slow to fast Press [ENTER] to accept the selection. 2bright Pint FC150 IP LED spotlight...
  • Page 32 ‘Color46’ ) or turn off the colour (display shows ‘Color Off’ ). Confirm with [ENTER]. The following colour macros are available: Colour macro Colour mixture Colour macro Colour mixture R/G/B/W R/G/B/W 255/0/0/0 50/0/255/0 255/15/0/0 95/0/255/0 255/35/0/0 130/0/255/0 255/70/0/0 190/0/255/0 255/125/0/0 225/0/255/0 255/170/0/0 255/0/255/0 2bright Pint FC150 IP LED spotlight...
  • Page 33 Colour macro Colour mixture Colour macro Colour mixture R/G/B/W R/G/B/W 255/210/0/0 255/0/220/0 255/255/0/0 255/0/170/0 200/255/0/0 255/0/95/0 160/255/0/0 255/0/70/0 110/255/0/0 0/0/40/0 70/255/0/0 255/0/20/0 0/255/0/0 255/0/7/0 0/255/10/0 0/0/0/255 0/255/25/0 255/0/0/255 0/255/45/0 125/0/0/255 0/255/70/0 0/255/0/255 0/255/120/0 0/120/0/255 2bright Pint FC150 IP LED spotlight...
  • Page 34 0/70/255/0 0/0/50/255 0/0/255/0 198/145/15/0 20/0/255/0 198/145/17/255 Press [UP] or [DOWN] to select the desired value for the intensity of the colour macro (display shows ‘006’ … ‘255’ ). Press [ENTER] to accept the selection. 2bright Pint FC150 IP LED spotlight...
  • Page 35 The following sub menus are available: Menu level 3 Menu level 4 Function ‘Dimmer’ ‘000…255’ Dimmer intensity ‘Strobe’ ‘0…30Hz’ Strobe effect from 0 to 30 Hz ‘Red’ ‘000…255’ ‘Green’ ‘000…255’ Green ‘ Blue’ ‘000…255’ Blue ‘White’ ‘000…255’ White 2bright Pint FC150 IP LED spotlight...
  • Page 36 Press [UP] or [DOWN] repeatedly until the display shows ‘Display Reverse’ . Confirm with [ENTER]. Use [UP] or [DOWN] to select either ‘On’ (display rotated by 180 °) or ‘Off’ (display not rotated). Press [ENTER] to accept the selection. 2bright Pint FC150 IP LED spotlight...
  • Page 37 Press [UP] or [DOWN] repeatedly until the display shows ‘Display Backlight’ . Confirm with [ENTER]. Use [UP] or [DOWN] to choose between ‘On’ (display permanently on) and ‘Off’ (display turns off after a few seconds in case of inactivity). Press [ENTER] to accept the selection. 2bright Pint FC150 IP LED spotlight...
  • Page 38 ‘Hold Last’ The last effect is being held. ‘Blackout’ The spotlight is turned off. ‘ProgamMix’ The automatic preprogrammed shows are played. ‘Manual’ The device is switched to manual operation. Press [ENTER] to accept the selection. 2bright Pint FC150 IP LED spotlight...
  • Page 39 Fade time 1 s: Rise time 1540 ms, fall time 1660 ms ‘TV’ without fade time: Rise time 1180 ms, fall time 1520 ms Fade time 1 s: Rise time 1860 ms, fall time 1940 ms 2bright Pint FC150 IP LED spotlight...
  • Page 40 Fade time 1 s: Rise time 2230 ms, fall time 2280 ms ‘Stage2’ without fade time: Rise time 0 ms, fall time 1100 ms Fade time 1 s: Rise time 0 ms, fall time 1660 ms Press [ENTER] to accept the selection. 2bright Pint FC150 IP LED spotlight...
  • Page 41 Press [UP] or [DOWN] repeatedly until the display shows ‘Dimmer Speed’ . Confirm with [ENTER]. Use [UP] or [DOWN] to select a dimmer speed between 0.1…0.9 seconds and 1…10 sec‐ onds (display shows ‘0.1-0.9s’ … ‘1-10s’ ). Press [ENTER] to accept the selection. 2bright Pint FC150 IP LED spotlight...
  • Page 42 Use [UP] or [DOWN] to choose between ‘On’ (keylock on) and ‘Off’ (keylock off). Press [ENTER] to accept the selection. Simultaneously press [UP] and [DOWN] for 5 seconds if you want to activate the input while the keylock is activated. 2bright Pint FC150 IP LED spotlight...
  • Page 43 The fan is off (silent mode). The device tempera‐ ture is controlled by reducing the power con‐ sumption to a maximum of 70 W. ‘Max’ The fan runs at maximum speed. Press [ENTER] to accept the selection. 2bright Pint FC150 IP LED spotlight...
  • Page 44 Menu level 3 Function ‘900Hz’ PWM 900 Hz ‘1000Hz’ PWM 1.5 kHz ‘1100Hz’ PWM 1.1 kHz ‘1200Hz’ PWM 1.2 kHz ‘1300Hz’ PWM 1.3 kHz ‘1400Hz’ PWM 1.4 kHz ‘1500Hz’ PWM 1.5 kHz 2bright Pint FC150 IP LED spotlight...
  • Page 45 Operating Menu level 3 Function ‘2500Hz’ PWM 2.5 kHz ‘4000Hz’ PWM 4 kHz ‘5000Hz’ PWM 5 kHz ‘6000Hz’ PWM 6 kHz ‘10000Hz’ PWM 10 kHz Press [ENTER] to accept the selection. 2bright Pint FC150 IP LED spotlight...
  • Page 46 Press [UP] or [DOWN] repeatedly until the display shows ‘Reset’ . Confirm with [ENTER]. ð You are prompted to enter a password. Enter the password 11. Press [ENTER]. ð The device is reset to factory default settings. 2bright Pint FC150 IP LED spotlight...
  • Page 47 Menu level 4 Menu level 5 Function ‘Red’ ‘000…255’ Calibration of red ‘Green’ ‘000…255’ Calibration of green ‘Blue’ ‘000…255’ Calibration of blue ‘White’ ‘000…255’ Calibration of white Press [ENTER] to accept the selection. 2bright Pint FC150 IP LED spotlight...
  • Page 48 Press [MENU] and then [UP] or [DOWN] repeatedly until the display shows ‘System Info’ . Confirm with [ENTER]. Press [UP] or [DOWN] until the display shows ‘LED On Time’ . ð The operation hours of the LED are displayed. 2bright Pint FC150 IP LED spotlight...
  • Page 49 Press [MENU] and then [UP] or [DOWN] repeatedly until the display shows ‘System Info’ . Confirm with [ENTER]. Press [UP] or [DOWN] until the display shows ‘Temperature’ . ð The current device temperature is displayed. 2bright Pint FC150 IP LED spotlight...
  • Page 50 Confirm with [ENTER]. Press [UP] or [DOWN] until the display shows ‘RDM’ . ð The display shows the UID code. Parameter ID Recognition Sent Command Received command Command DISC_UNIQUE_BRANCH DISC_MUTE DISC_UN_MUTE DEVICE_INFO SOFTWARE_VERSION_LABEL DMX_START_ADDRESS 2bright Pint FC150 IP LED spotlight...
  • Page 51 Operating Parameter ID Recognition Sent Command Received command Command IDENTIFY_DEVICE SUPPORTED_PARAMETERS SENSOR_DEFINITION SENSOR_VALUE DMX_PERSONALITY DMX_PERSONALITY_DESCRIPTION RESET_DEVICE FACTORY_DEFAULTS 2bright Pint FC150 IP LED spotlight...

  • Page 52: Menu Overview

    Operating 7.3 Menu overview 2bright Pint FC150 IP LED spotlight...

  • Page 53: Functions In 1-Channel Dmx Mode

    7.4 Functions in 1-channel DMX mode Channel Value Function Blinder mode 7.5 Functions in 2-channel DMX mode Channel Value Function 000…255 Dimmer intensity from dark (0) to bright (255) Colour macros 000…007 No function 008…255 Colour macros 1…46 2bright Pint FC150 IP LED spotlight...

  • Page 54: Functions In 4-Channel Dmx Mode

    Intensity white (0 %…100 %) 7.7 Functions in 6-channel DMX mode Channel Value Function 000…255 Dimmer intensity from dark (0) to bright (255) 000…255 Intensity red (0 %…100 %) 000…255 Intensity green (0 %…100 %) 2bright Pint FC150 IP LED spotlight...
  • Page 55 011…020 LED off 021…030 Singly strobe pulse 031…090 Strobe effect, increasing speed 091…100 LED on 101…170 Strobe pulses (short burst with pause) 171…180 LED on 181…240 Random strobe effect, increasing speed 241…255 LED on 2bright Pint FC150 IP LED spotlight...

  • Page 56: Functions In 8-Channel Dmx Mode

    000…255 Intensity green (0 %…100 %) 000…255 Intensity blue (0 %…100 %) 000…255 Intensity white (0 %…100 %) Stroboscope 000…010 LED on 011…020 LED off 021…030 Single strobe pulse 031…090 Strobe effect, increasing speed 2bright Pint FC150 IP LED spotlight...
  • Page 57 Operating Channel Value Function 091…100 LED on 101…170 Strobe pulses (short burst with pause) 171…180 LED on 181…240 Random strobe effect, increasing speed 241…255 LED on Blinder mode 2bright Pint FC150 IP LED spotlight...

  • Page 58: Functions In 11-Channel Dmx Mode

    000…255 Intensity green (0 %…100 %) 000…255 Intensity blue (0 %…100 %) 000…255 Intensity white (0 %…100 %) Stroboscope 000…010 LED on 011…020 LED off 021…030 Single strobe pulse 031…090 Strobe effect, increasing speed 2bright Pint FC150 IP LED spotlight...
  • Page 59 Random strobe effect, increasing speed 241…255 LED on Blinder mode Colour macros 000…007 No function 008…255 Colour macros 1…46 Dimmer curves 000…010 Default setting of the device 011…020 Dimmer curve ‘Linear’ 021…040 Dimmer curve ‘Stage’ 2bright Pint FC150 IP LED spotlight...
  • Page 60 Dimmer curve ‘Theatre’ 101…120 Dimmer curve ‘Stage2’ Delay 0.1 s Delay 0.2 s Delay 0.3 s Delay 0.4 s Delay 0.5 s Delay 0.6 s Delay 0.7 s Delay 0.8 s Delay 0.9 s 2bright Pint FC150 IP LED spotlight...
  • Page 61 Delay 2.0 s Delay 3.0 s Delay 4.0 s Delay 5.0 s Delay 6.0 s Delay 7.0 s Delay 8.0 s Delay 9.0 s Delay 10 s 141…255 Default setting of the device LED repetition rate 2bright Pint FC150 IP LED spotlight...
  • Page 62 900 Hz 021…030 1000 Hz 031…040 1100 Hz 041…050 1200 Hz 051…060 1300 Hz 061…070 1400 Hz 071…080 1500 Hz 081…090 2500 Hz 091…100 4000 Hz 101…110 5000 Hz 111…120 6000 Hz 121…130 10,000 Hz 2bright Pint FC150 IP LED spotlight...
  • Page 63 Operating Channel Value Function 131…140 Default setting of the device Fan mode 141…150 Fan mode ‘Silent’ 151…160 Fan mode ‘Smart’ 161…170 Fan mode ‘Max’ 171…180 Default setting of the device 181…255 No function 2bright Pint FC150 IP LED spotlight...

  • Page 64: Technical Specifications

    900 Hz…10 kHz Control Buttons and display Number of DMX channels 1, 2, 4, 6, 8, 11 Input connections Voltage supply Lockable input socket Power Twist TR1 IP65 DMX control XLR panel plug (IP65), 3-pin 2bright Pint FC150 IP LED spotlight...
  • Page 65 234 mm × 308 mm × 237.5 mm Dimensions (W × H × D), w/o bracket 234 mm × 150 mm × 237.5 mm Weight 4.2 kg Ambient conditions Temperature range –5 °C…+45 °C Relative humidity 50 %, non-condensing 2bright Pint FC150 IP LED spotlight...
  • Page 66 Technical specifications Further information Item no. Construction Outdoor housing, cannon Number of LEDs Colour mixture RBGW LED type x-in-1 Floor housing Fanless Remote control Not possible Wireless DMX Housing colour black 2bright Pint FC150 IP LED spotlight...

  • Page 67: Plug And Connection Assignment

    A three-pole coupling in IP65 design is used as DMX output, a three-pole plug in IP65 design is used as DMX input. The drawing below and the table show the pin assignment of a matching coupling. Assignment Ground (shielding) Signal inverted (DMX–, ‘cold’) Signal (DMX+, ‘hot’) 2bright Pint FC150 IP LED spotlight...

  • Page 68: Troubleshooting

    Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers. In the following we list a few common problems that may occur during operation. We give you some suggestions for easy troubleshooting: 2bright Pint FC150 IP LED spotlight...
  • Page 69 DMX interface circuits. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. 2bright Pint FC150 IP LED spotlight...

  • Page 70: Cleaning

    Clean with a soft cloth using our lamp and lens cleaner (item no. 280122). Always dry the parts carefully. 2bright Pint FC150 IP LED spotlight...

  • Page 71: Protecting The Environment

    Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. 2bright Pint FC150 IP LED spotlight...
  • Page 72 Notes 2bright Pint FC150 IP LED spotlight...
  • Page 73 Notes 2bright Pint FC150 IP LED spotlight...
  • Page 74 Notes 2bright Pint FC150 IP LED spotlight...
