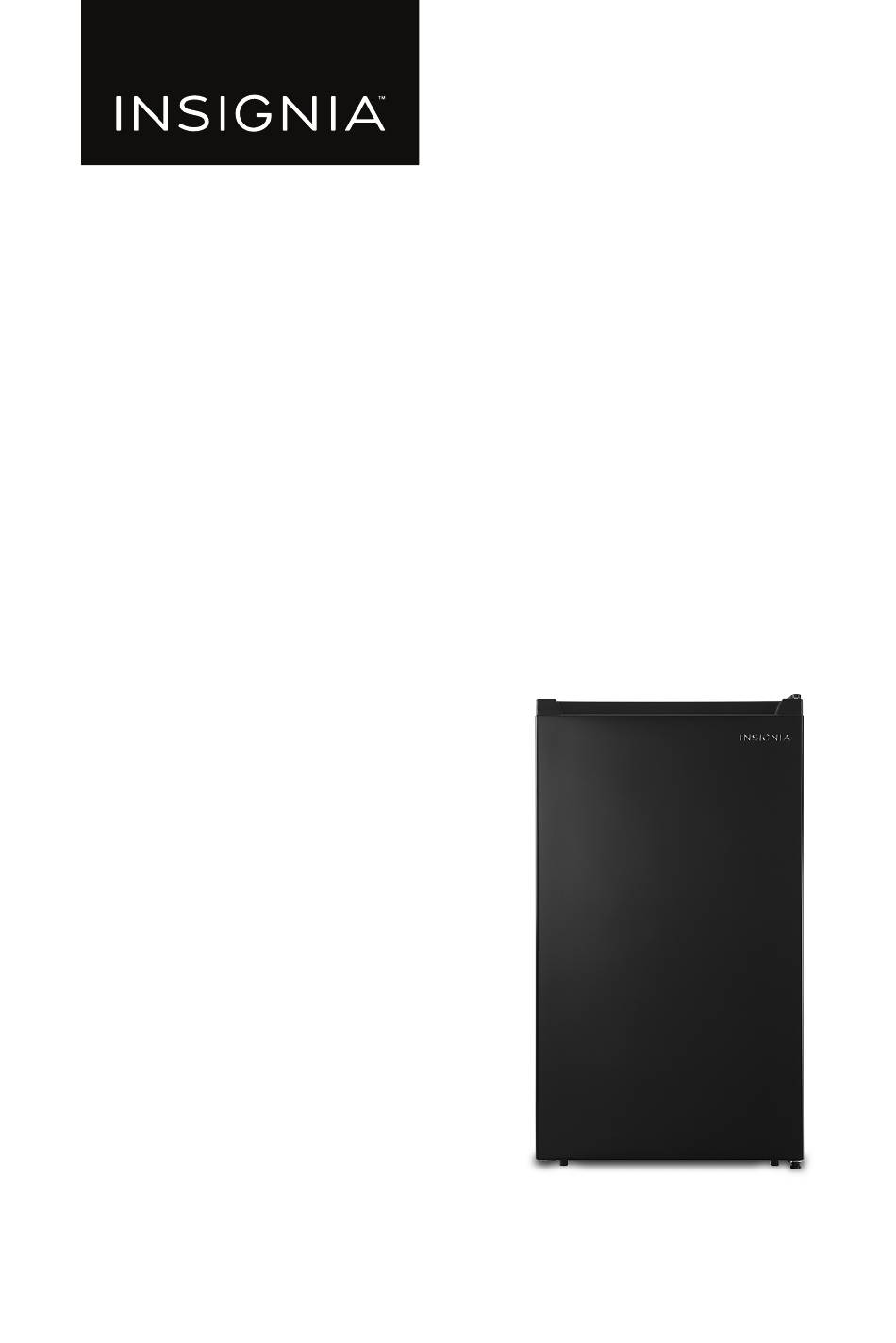

- Page 1 USER GUIDE 3.3 Cu. Ft. Compact Refrigerator NS-CF33BK3/NS-CF33BK3-C/NS-CF33SS3-C Before using your new product, please read these instructions to prevent any damage.
-
Page 2: Table Of Contents
Specifications ............17 ONE-YEAR LIMITED WARRANTY - INSIGNIA ......18 Introduction Congratulations on your purchase of a high-quality Insignia product. -
Page 3: Important Safety Instructions
3.3 Cu. Ft. Compact Refrigerator IMPORTANT SAFETY INSTRUCTIONS • For your safety and correct usage, please read these instructions carefully before using your new appliance to avoid unnecessary mistakes and accidents. • Please ensure that all people using this appliance are familiar with its operation and safety features. - Page 4 • If you are discarding your old appliance, pull the plug out of the socket, and cut the power cord (as close to the appliance as you can). Cut off the main plug and discard. Break off any old locks or latches as a safeguard and remove the door to prevent children playing from suffering an electric shock or from closing themselves inside it.
- Page 5 3.3 Cu. Ft. Compact Refrigerator Disposal of the Appliance Do not dispose of this appliance as household waste. Before disposal of the appliance: Pull out the plug from the outlet. Cut off the power cord and discard. WARNING: Refrigerators contain refrigerant and gases in the insulation. Packaging materials with the recycle symbol are recyclable.
-
Page 6: Features
Features • 32 ~ 50° F (0 ~ 10° C) refrigerator temperature range adjusts to fit your needs • Three door trays hold up to 18 12-ounce cans • Interior LED lighting helps you quickly find what you need • Three glass shelves keep your items organized •... -
Page 7: Setting Up Your Refrigerator
3.3 Cu. Ft. Compact Refrigerator Setting up your refrigerator WARNING: • Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. • Do not damage the refrigerant circuit. • Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. -
Page 8: Providing A Proper Power Supply
Providing a proper power supply Check your local power source. This refrigerator requires a 115V, 60Hz power supply. Use a receptacle that accepts the grounding prong. The power cord is equipped with a three-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this refrigerator. -
Page 9: Setting The Thermostat
3.3 Cu. Ft. Compact Refrigerator Setting the thermostat Adjust the thermostat to set your refrigerator’s temperature from 32° to 50° F (0° to 10° C). Plug your refrigerator’s power cord into a grounded wall outlet. When your refrigerator is plugged in and the door is open, the interior light turns on. The first time you turn your refrigerator on, adjust the thermostat to MID and let your refrigerator cool completely before putting food in. - Page 10 Using a Phillips screwdriver, remove the two screws that hold the upper hinge to the right side of the cabinet top. Upper hinge cover Screws Upper hinge Carefully lift the door off and place it on a padded surface to prevent scratches.
- Page 11 3.3 Cu. Ft. Compact Refrigerator Loosely secure the lower hinge, but do not fully tighten the bolts until the door is in the closed position and leveled. Replace the door, making sure the pin enters the bushing at the lower frame hole.
-
Page 12: Maintaining Your Refrigerator
Maintaining your refrigerator Your refrigerator is designed for year-round use with only minimal cleaning and maintenance. When you first receive it, wipe the case with a mild detergent and warm water, then wipe dry with a dry cloth. Do this periodically to keep your refrigerator looking new. -
Page 13: Replacing The Light Bulb
This cuts down on frost build-up inside your refrigerator. • Organize and label food to reduce door openings and extended searches. Obtaining replacement parts Call Insignia Customer Service at 1-877-467-4289. To obtain replacement parts outside the warranty period, visit https://partstore.encompass.com and search for the product model number. -
Page 14: Troubleshooting
Troubleshooting CAUTION: Do not try to repair your refrigerator yourself. Doing so invalidates the warranty. PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION My refrigerator Your refrigerator is unplugged. Make sure that your refrigerator does not operate. is plugged in and that the plug is pushed completely into the outlet. - Page 15 3.3 Cu. Ft. Compact Refrigerator PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION Food in my The door has been opened too Make sure that the door is refrigerator often or was not closed properly. closed properly. compartment is You have just added a large Allow time for the new food to not cold.
- Page 16 PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION My refrigerator Food packages are interfering Move the food packages or door does not with the door. remove some food. close completely. The shelves are out of position. Adjust the shelves properly. The door gaskets are dirty. Clean the door gaskets.
-
Page 17: Specifications
3.3 Cu. Ft. Compact Refrigerator Specifications Dimensions (H × W × D) 33 1/8 × 18 3/4 × 17 11/16 in. (84 × 47.5 × 44.8 cm) Weight 42.77 lbs. (19.4 kg) Capacity 3.3 cu. ft. (.09 cu. m) Temperature range 32°... -
Page 18: One-Year Limited Warranty - Insignia
Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. - Page 19 • Damage due to incorrect operation or maintenance • Connection to an incorrect voltage or power supply • Attempted repair by any person not authorized by Insignia to service the Product • Products sold “as is” or “with all faults”...
- Page 20 1-877-467-4289 (U.S. and Canada) INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A. V1 ENGLISH ©2022 Best Buy. All rights reserved. 22-0357...
