Summary of Contents for Insignia NS-CF12V17BK1

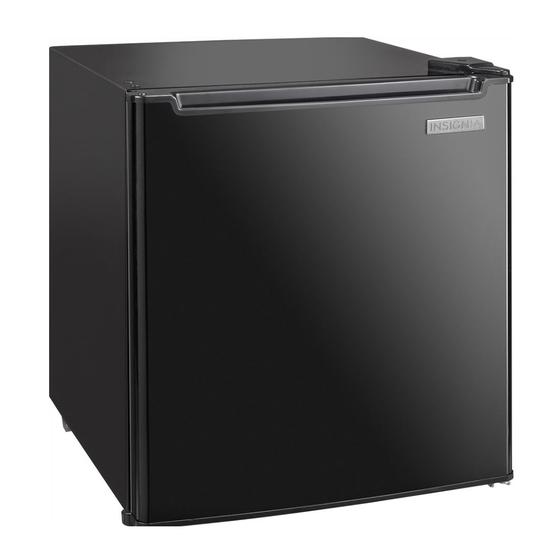

- Page 1 USER GUIDE Final Trim Size: 5.512 x 8.268 in. (140 x 210 mm) 1.6 Cu. Ft. 12 Volt Compact Refrigerator NS-CF12V17BK1 Before using your new product, please read these instructions to prevent any damage.
-
Page 2: Table Of Contents
Specifications ............17 ONE-YEAR LIMITED WARRANTY - INSIGNIA ......18... -
Page 3: Important Safety Instructions
1.6 Cu. Ft. 12 Volt Compact Refrigerator IMPORTANT SAFETY INSTRUCTIONS WARNING: To reduce the risk of fire, explosion, electric shock, or injury when using your refrigerator, follow these basic safety precautions: • This refrigerator must be properly installed and located in accordance with the Installation Instructions before it is used. - Page 4 CAUTION: To reduce the risk of injury when using your refrigerator, follow these basic safety precautions. • Do not clean glass shelves or covers with warm water when they are cold. Glass shelves and covers may break if exposed to sudden temperature changes or impact, such as bumping or dropping.
- Page 5 1.6 Cu. Ft. 12 Volt Compact Refrigerator PROPER DISPOSAL OF YOUR OLD REFRIGERATOR WARNING: SUFFOCATION AND ENTRAPMENT HAZARD Failure to follow these disposal instructions can result in death or serious injury. IMPORTANT: Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators or freezers are still dangerous even if they will sit for “just a few days.”...
-
Page 6: Features
Features Package contents • 1.6 Cu. Ft. 12 Volt Compact Refrigerator • User Guide Dimensions 19.5 in. (49.6 cm) 19.8 in. (50.2 cm) 17.5 in. (44.5 cm) Refrigerator parts Thermostat control knob Bottle storage Wire shelf Door gasket Leveling feet www.insigniaproducts.com... -
Page 7: Installing Your Refrigerator
1.6 Cu. Ft. 12 Volt Compact Refrigerator Installing your refrigerator Before using your refrigerator • Remove the exterior and interior packing. • Let your refrigerator stand upright for approximately four hours before connecting it to power. This reduces the possibility of a malfunction in the cooling system from incorrect handling during transportation. -
Page 8: Providing Correct Ventilation
Providing correct ventilation Place your refrigerator at lease 1 inch (2.5 cm) from the wall to make sure that the airflow to the compressor is adequate. Don’t place your refrigerator near any heat sources, such as a heater or stove, because this may put a strain on the compressor. -
Page 9: Reversing The Door Position
1.6 Cu. Ft. 12 Volt Compact Refrigerator Locate the power supply connection terminal block on the right side of the compressor compartment. Power input: DC 12 V Current: 15 A max. Unsnap the clear plastic cover over the terminal block to access the terminal screws. - Page 10 You need the following tools to reverse the door: 10 mm nut driver Phillips screwdriver Unplug your refrigerator, then remove all contents. Adjust the leveling feet to their highest positions. Remove the screw holding the top hinge cover to the top of your refrigerator, then remove the cover.
- Page 11 1.6 Cu. Ft. 12 Volt Compact Refrigerator Remove the leveling foot from the bottom left of your refrigerator. Remove the screws that secure the bottom hinge bracket. Install the leveling foot on the right side of your refrigerator, then tighten the foot.
-
Page 12: Leveling Your Refrigerator
Align the hinge with the screw holes on the door and the hole in the top edge of the door. Slide the pin through the hole in the hinge and into the hole on the top edge of the door. Use the screws to attach the hinge to your refrigerator, but don’t tighten the hinge screws. -
Page 13: Setting The Thermostat
1.6 Cu. Ft. 12 Volt Compact Refrigerator Setting the thermostat Note: Your refrigerator’s temperature ranges from 32° to 46.4° F (0° to 8° C). The first time you turn your refrigerator on, adjust the thermostat to 7 and let your refrigerator cool at least 2 hours before putting foods inside.This makes sure that the cabinet is thoroughly chilled before food is put in. -
Page 14: Maintaining Your Refrigerator
Maintaining your refrigerator Your refrigerator is designed for year-round use with only minimal cleaning and maintenance. When you first receive it, wipe the case with a mild detergent and warm water, then wipe dry with a dry cloth. Do this periodically to keep your refrigerator looking new. -
Page 15: Moving Your Refrigerator
1.6 Cu. Ft. 12 Volt Compact Refrigerator Moving Your Refrigerator Turn off your refrigerator and disconnect the power by removing the refrigerator circuit fuse or turning off circuit breaker in the DC voltage distribution panel. Remove all food. Securely tape down all loose items inside your refrigerator. Tape the doors shut. - Page 16 PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION The door has been opened too often or Make sure that the door is closed correctly. was not closed correctly. Food in my refrigerator You have just added a compartment is Allow time for the new food to cool, then large amount of food not cold check again.
-
Page 17: Specifications
1.6 Cu. Ft. 12 Volt Compact Refrigerator Specifications Dimensions (H × W × D) 19.5 × 17.5 × 19.8 in. (49.6 × 44.5 × 50.2 cm) Weight 31.7 lbs (14.4 kg) Temperature range 32° ~ 46.4° F (0° ~ 8° C) Power requirements DC 12 V Current... -
Page 18: One-Year Limited Warranty - Insignia
Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. Products and parts replaced under this warranty become the property of Insignia and are not returned to you. - Page 19 Damage due to incorrect operation or maintenance • Connection to an incorrect voltage or power supply • Attempted repair by any person not authorized by Insignia to service the Product • Products sold “as is” or “with all faults” •...
- Page 20 1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico) INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A. V2 ENGLISH ©2020 Best Buy. All rights reserved.
Need help?
Do you have a question about the NS-CF12V17BK1 and is the answer not in the manual?
Questions and answers

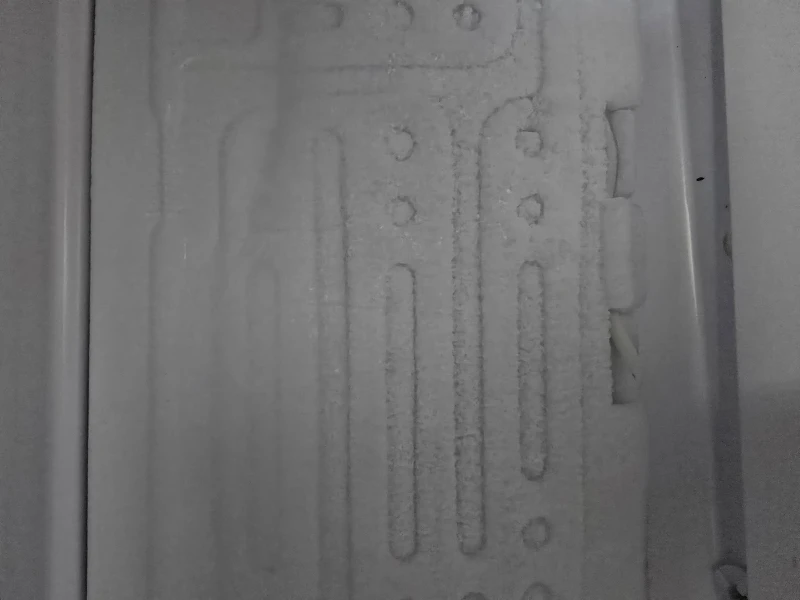

Do I need to defrost frig if there is ice formed on the back.
