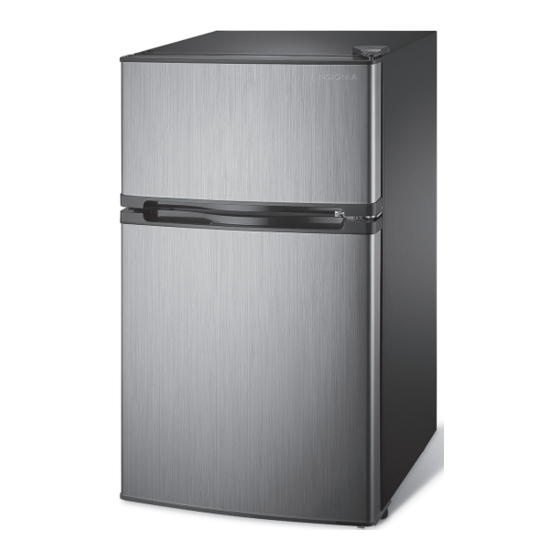

Insignia NS-CF30SS9-C User Manual

2-door compact refrigerator
Hide thumbs
Table of Contents

Advertisement

Quick Links

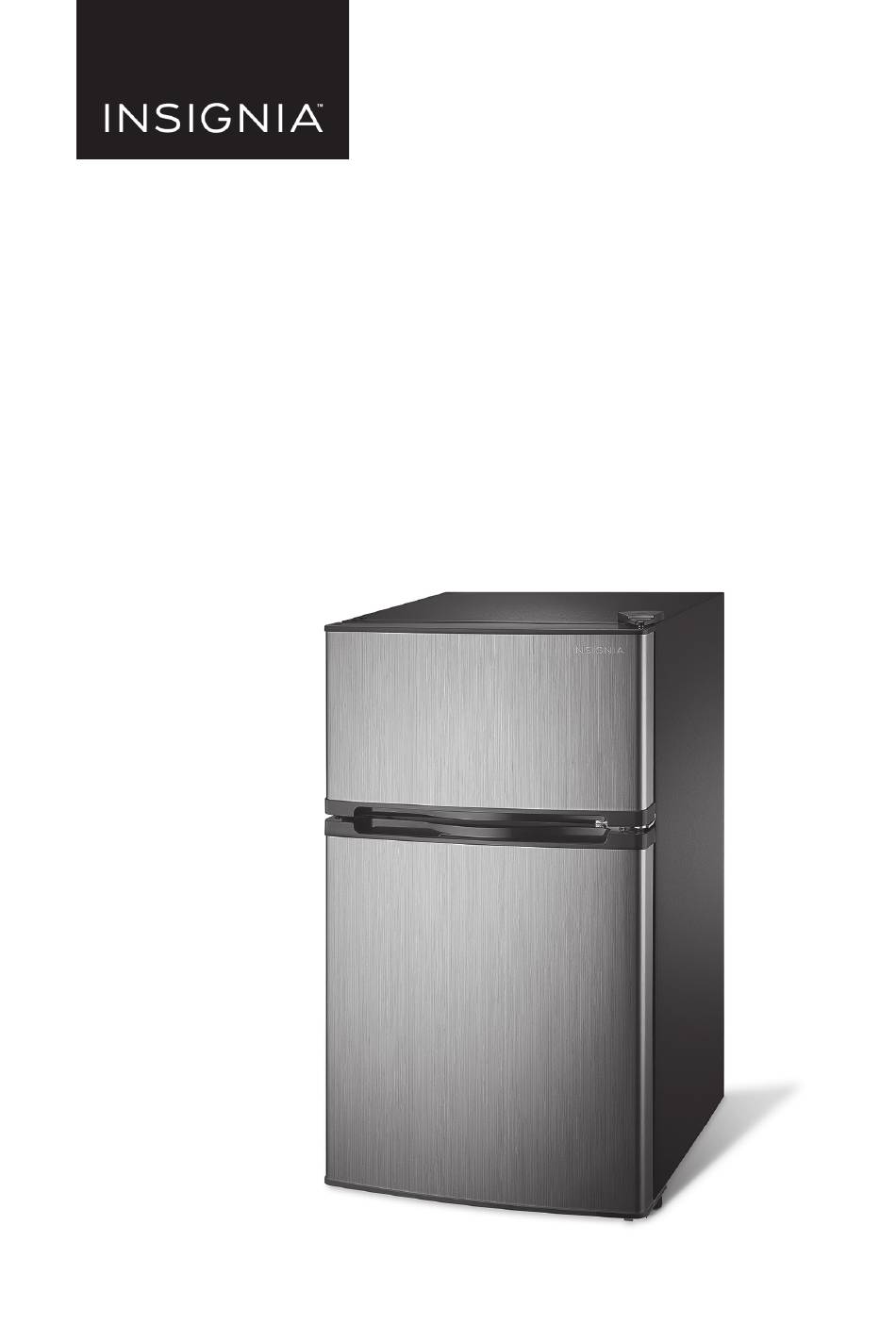

USER GUIDE
2-Door Compact
Refrigerator
NS-CF30SS9/NS-CF30SS9-C
Before using your new product, please read these instructions to prevent any damage.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NS-CF30SS9-C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Insignia NS-CF30SS9-C

Summary of Contents for Insignia NS-CF30SS9-C

  • Page 1 USER GUIDE 2-Door Compact Refrigerator NS-CF30SS9/NS-CF30SS9-C Before using your new product, please read these instructions to prevent any damage.

  • Page 2: Table Of Contents

    Contents Introduction ............3 Important Safety Instructions .

  • Page 3: Introduction

    2-Door Compact Refrigerator Introduction Congratulations on your purchase of a high-quality Insignia product. Your NS-CF30SS9 or NS-CF30SS9-C represents the state of the art in compact refrigerator design and is designed for reliable and trouble-free performance. Important Safety Instructions CAUTION RISK OF ELECTRIC SHOCK...
  • Page 4 NS-CF30SS9/NS-CF30SS9-C Make sure that the available AC power matches the voltage requirements of this appliance. Do not handle the plug with wet hands. This could result in an electric shock. Unplug the power cord by holding the plug, never by pulling the cord.

  • Page 5: Grounding Requirement

    2-Door Compact Refrigerator This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

  • Page 6: Features

    NS-CF30SS9/NS-CF30SS9-C Features Package contents • 2-door compact refrigerator • Adjustable shelves • Ice cube tray • Defrost shovel • User Guide • Pivot pin with screw Main components Door hinge cover Freezer door Ice shovel Ice tray Thermostat Interior light switch...

  • Page 7: Dimensions

    2-Door Compact Refrigerator Dimensions 19.1 in. (48.5 cm) 37.4 in. (94.9 cm) 33.4 in. (84.8 cm) 20.5 in. (52 cm) Preparing to install your refrigerator Before using your refrigerator • Remove the exterior and interior packaging. • Let the refrigerator stand upright for approximately four hours before connecting it to power.

  • Page 8: Leveling Your Refrigerator

    NS-CF30SS9/NS-CF30SS9-C • Locate the refrigerator away from direct sunlight and sources of heat (stove, heater, radiator, and so on). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Ambient temperature below 50°F (10°C) or above 85°F (29.4°C) will hinder the performance of this refrigerator.

  • Page 9: Setting The Thermostat

    2-Door Compact Refrigerator Setting the thermostat The first time you turn the refrigerator on, adjust the thermostat to “7” and run for at least two hours before putting food in. After it is fully cooled, test it and adjust towards “4” to make it less cool, to best suit your needs.

  • Page 10: Defrosting Your Refrigerator

    NS-CF30SS9/NS-CF30SS9-C Defrosting your refrigerator This refrigerator is not designed to defrost automatically. In order to prevent damage to the interior liner of the refrigerator from excessive frost build-up, defrost the refrigerator every three months or when ice or frost is approximately ¼”...
  • Page 11 2-Door Compact Refrigerator Remove the screw hole covers from the top left side of your refrigerator. Keep the screw hole covers in a handy place. You need them later. Screw Top hinge cover Screws (2) Screw hole covers Top hinge Freezer door Pivot pin Screw...

  • Page 12: Reinstalling The Doors

    NS-CF30SS9/NS-CF30SS9-C Remove the two screws holding the bottom hinge on the refrigerator and remove the hinge. Bottom hinge Screws (2) Baffle Right leveling foot Left leveling foot Remove the baffle block from the bottom-right side of the door. Reinstalling the doors Install the baffle block on the bottom-left side of the door.
  • Page 13 2-Door Compact Refrigerator Place the middle hinge pin into the left top of the refrigerator door, then install the middle hinge on the left of the refrigerator with the screws your previously removed. Do not fully tighten the screws. Middle hinge Screws (2) Check the fit and alignment (vertical and horizontal) of the door and make sure that it opens and closes freely, then tighten the screws holding the...

  • Page 14: Maintaining Your Refrigerator

    NS-CF30SS9/NS-CF30SS9-C Maintaining your refrigerator Your refrigerator is designed for year-round use with only minimal cleaning and maintenance. When you first receive it, wipe the case with a mild detergent and warm water, then wipe dry with a dry cloth. Do this periodically to keep your refrigerator looking new.

  • Page 15: Moving Your Refrigerator

    2-Door Compact Refrigerator Moving your refrigerator Turn off the refrigerator and unplug it from the wall outlet. Remove all food. Securely tape down all loose items inside of your refrigerator. Tape the doors shut. Note: Make sure that your refrigerator stays in an upright position during transportation.
  • Page 16 NS-CF30SS9/NS-CF30SS9-C PROBLEM SOLUTION The refrigerator doors do not • Make sure that no food packages are in the way. close completely. • Make sure that the door gaskets (seals) are clean. See Maintaining your refrigerator on page 14. • If the door gasket does not seal, try heating then cooling the seal.
  • Page 17 2-Door Compact Refrigerator PROBLEM SOLUTION The compressor runs for a The compressor runs longer if: long time or turns on and off • The room temperature is high. frequently. • You just added a large amount of food. Wait for the food to freeze, then check again.

  • Page 18: Specifications

    NS-CF30SS9/NS-CF30SS9-C Specifications Dimensions (W x D x H) 19.1 x 20.5 x 33.4 in (48.5 x 52.0 x 84.8 cm) Weight 55 lbs (24.92 kg) Power requirements 115 V~60 Hz Current 1.5 A Power consumption (annual) 321 kwh Power cord length 5 ft.

  • Page 19: One-Year Limited Warranty

    Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts.
  • Page 20 NS-CF30SS9/NS-CF30SS9-C • Connection to an incorrect voltage or power supply • Attempted repair by any person not authorized by Insignia to service the Product • Products sold “as is” or “with all faults” • Consumables, including but not limited to batteries (i.e. AA, AAA, C, etc.) •...
  • Page 21 1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico) INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A. V4 ENGLISH ©2020 Best Buy. All rights reserved.
