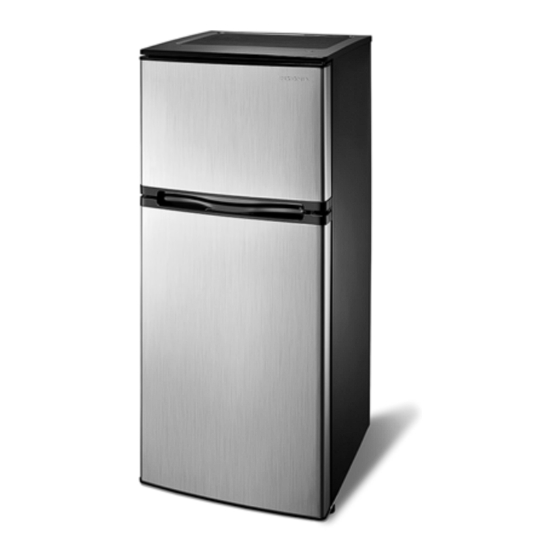

Insignia NS-CF43SS7 User Manual

4.3 cubic foot compact refrigerator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

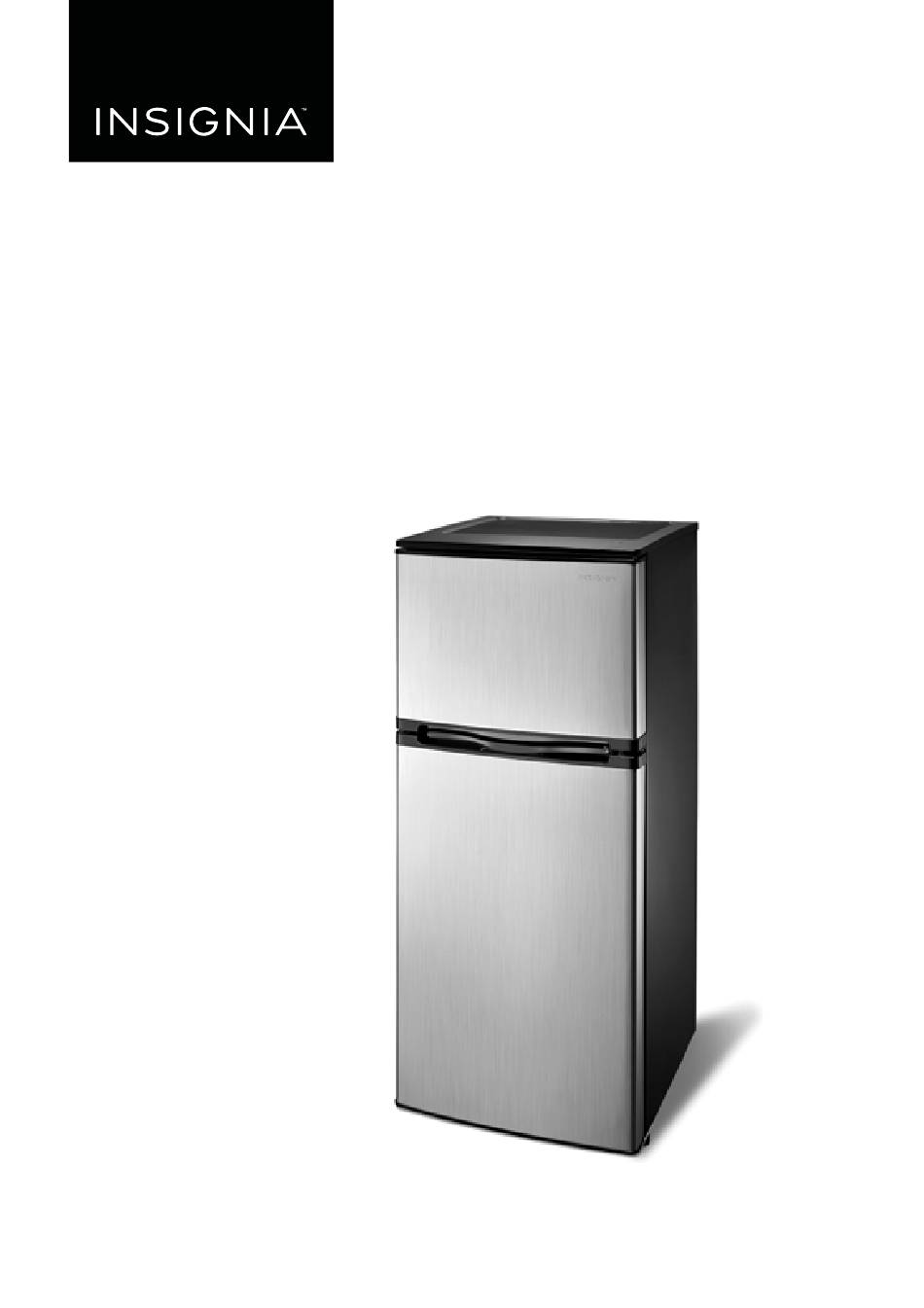

USER GUIDE
4.3 Cubic Foot Compact
Refrigerator
NS-CF43SS7
Before using your new product, please read these instructions to prevent any damage.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NS-CF43SS7 and is the answer not in the manual?

Questions and answers

Related Manuals for Insignia NS-CF43SS7

Summary of Contents for Insignia NS-CF43SS7

  • Page 1 USER GUIDE 4.3 Cubic Foot Compact Refrigerator NS-CF43SS7 Before using your new product, please read these instructions to prevent any damage.

  • Page 2: Table Of Contents

    ONE-YEAR LIMITED WARRANTY........19 Introduction Congratulations on your purchase of a high-quality Insignia product. Your NS-CF43SS7 represents the state of the art in compact refrigerator design and is designed for reliable and trouble-free performance. www.insigniaproducts.com...

  • Page 3: Important Safety Instructions

    4.3 Cubic Foot Compact Refrigerator Important Safety Instructions CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN This symbol indicates that dangerous voltage constituting a risk of electric shock is present within your compact refrigerator. This symbol indicates that there are important operating and maintenance instructions in the literature accompanying your compact refrigerator.
  • Page 4 NS-CF43SS7 14 Do not handle the plug with wet hands. This could result in an electric shock. 15 Unplug the power cord by holding the plug, never by pulling the cord. 16 Do not turn the appliance on or off by plugging or unplugging the power cord.

  • Page 5: Grounding Requirement

    4.3 Cubic Foot Compact Refrigerator 8 This appliance can be used by children age eight years and older and persons with reduced physical or mental capabilities or lack of experience and knowledge if they are given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.

  • Page 6: Main Components

    NS-CF43SS7 Main components Cabinet tabletop Freezer Freezer shelf door Ice tray (not shown) Thermostat/ controls Interior light switch Shelves Refrigerator door Crisper Leveling foot Setting up your refrigerator Before using your refrigerator • Remove the exterior and interior packing. •...

  • Page 7: Leveling Your Refrigerator

    4.3 Cubic Foot Compact Refrigerator • Locate the refrigerator away from direct sunlight and sources of heat (stove, heater, radiator, and so on). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Ambient temperature below 50°F (10°C) or above 85°F (29.4°C) will hinder the performance of this refrigerator.

  • Page 8: Setting The Thermostat

    NS-CF43SS7 Notes • The refrigerator should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate. • Never unplug your refrigerator by pulling on the power cord. Always grip the plug firmly and pull straight out from the outlet.

  • Page 9: Using The Freezer Compartment

    4.3 Cubic Foot Compact Refrigerator Using the freezer compartment The freezer compartment is designed for the long-term storage of frozen foods. The storage life of frozen foods varies and the recommended storage time should not be exceeded. Place frozen food into the freezer as quickly as possible after purchase. If there are instructions on the packet, carefully follow these instructions regarding storage times.

  • Page 10: Reversing The Door Position

    NS-CF43SS7 Reversing the door position Your refrigerator is built with a reversible door. Based on the location where you plan to use your compact refrigerator, you may find it more convenient to reverse the position of the door, to have it open from right to left instead of left to right.
  • Page 11 4.3 Cubic Foot Compact Refrigerator 4 Remove the screw holding the pivot pin on the bottom left side of the freezer door, then remove the pivot pin. 5 Remove the two screws holding the middle hinge to the refrigerator body, then remove the hinge. Middle hinge Screws (2) 6 Pull the refrigerator door upwards and remove it from the refrigerator.

  • Page 12: Reinstalling The Doors

    NS-CF43SS7 Reinstalling the doors 1 Reinstall the left leveling foot into the right side and the right leveling foot into the left side. 2 Install the baffle block on the bottom-right side of the door. 3 Install the bottom hinge on the left bottom of your refrigerator using the screws you previously removed.
  • Page 13 4.3 Cubic Foot Compact Refrigerator 5 Install the middle hinge on the left of the refrigerator with the screws your previously removed. Do not fully tighten the screws. Middle hinge Screws (2) 6 Check the fit and alignment of the door and make sure that it opens and closes freely, then tighten the screws holding the middle hinge.

  • Page 14: Maintaining Your Refrigerator

    NS-CF43SS7 9 Install the top hinge on the left top of your refrigerator using the screws your previously removed. Do not fully tighten the screws. Screws (2) Top hinge 10 Check the fit and alignment of the freezer door and make sure it opens and closes freely, then tighten the screws holding the top hinge.

  • Page 15: Changing The Interior Light

    4.3 Cubic Foot Compact Refrigerator 4 Be sure to keep the door gasket (seal) clean to keep the refrigerator running efficiently. 5 Dry the interior and exterior with a soft cloth. Changing the interior light Caution • All parts removed must be saved to reinstall the light bulb. •...

  • Page 16: Tips On Saving Energy

    NS-CF43SS7 Tips on saving energy • Locate your refrigerator in the coolest area of the room, away from heat producing appliances or heating ducts and out of the direct sunlight. • Let hot foods cool before placing them in the refrigerator. Overloading the refrigerator forces the compressor to run longer.
  • Page 17 4.3 Cubic Foot Compact Refrigerator PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION Food in the refrigerator The door has been opened too Make sure that the door is closed properly. compartment is not often or was not closed properly. cold You have just added a large Allow time for the new food to cool, then check again.

  • Page 18: Specifications

    NS-CF43SS7 PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION There is moisture The door may be slightly open. Make sure that the door closes completely. forming on the external walls of the refrigerator Specifications Dimensions (WxDxH) 19.1 x 20.5 x 43.4 in (48.5 x 52.0 x 110.3 cm) Weight 69.9 lbs (31.72 kg)

  • Page 19: One-Year Limited Warranty

    Products and parts replaced under this warranty become the property of Insignia and are not returned to you. If service of Products or parts are required after the Warranty Period expires, you must pay all labor and parts charges. This warranty lasts as long as you own your Insignia Product during the Warranty Period.
  • Page 20 FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR LOST PROFITS. INSIGNIA PRODUCTS MAKES NO OTHER EXPRESS WARRANTIES WITH RESPECT TO THE PRODUCT, ALL EXPRESS AND...
  • Page 21 1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico) INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC V2 ENGLISH 7601 Penn Ave South, Richfield, MN 55423 U.S.A. 17-0447 ©2017 Best Buy. All rights reserved.
