RTS 10D6 CONTINENTAL BUILDING NURBURGRING
CONGRATULATIONS
Congratulations in choosing a unique product to enhance your slot car track
diorama. This can truly be described as a product born from a love for slot cars.
Buying this product have made you a member of a very special family, yes you are
not dealing with a faceless business, but rather a family of slot car fanatics.
We have put hours of skill and more importantly love into this product and it is
wonderful to share our love for slot cars with you. May you enjoy the build and have
years of joy having it as part of your trackside diorama.
This product is inspired by the building at Nürburgring in the golden years of racing
and can be described as an iconic trackside structure. We believe that this building
will enhance any slot car trackside diorama.
WARRANTY
This product is covered by a comprehensive money-back warranty to ensure your
absolute satisfaction with your purchase.
WHO ARE WE?
This product is brought to you by racetrackscenics.com. If you have not done so
already, please visit our website today. You are also most welcome to visit the
Facebook pages
"Race Track Scenics Slot Car Scenery" and "Johan Malan" to
keep up to date with the latest developments and the launching of exciting new
products that may be in the pipeline.
You can contact Kevin Sharpe on
Email: racetrackscenics@gmail.com
Text in the USA 586 549 2879
WhatsApp 1-586-549-2879
for any assistance that you might require. Your feedback and a photo or two of your
trackside addition will really be appreciated. We love to share in your joy!
ASSEMBLY INSTRUCTIONS
1
Advertisement
Table of Contents
Related Manuals for RACE TRACK SCENICS RTS 10D6
Summary of Contents for RACE TRACK SCENICS RTS 10D6
- Page 1 You are also most welcome to visit the Facebook pages “Race Track Scenics Slot Car Scenery” and “Johan Malan” to keep up to date with the latest developments and the launching of exciting new products that may be in the pipeline.
- Page 2 WHAT IS IN THE KIT? In this kit you will find all the laser cut pieced needed to assemble this product. The pieces are still intact in the sheets as they were cut to ensure that all the parts are there.

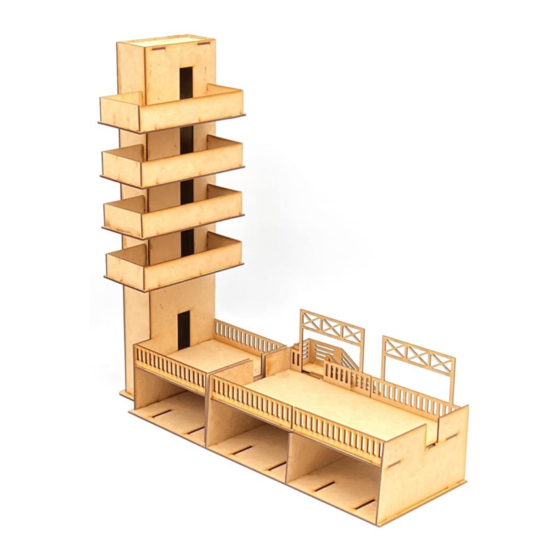

- Page 3 FAMILIARIZE YOURSELF Have a look at the photos of the finished product:...
- Page 4 Since the prototype above was assembled, there were two modifications. The tower and adjacent single pit are now two independent structures. (The double pit is a separate kit). Secondly the three lower balconies were changed to be enclosed. Now have a look at the next diagram where all the laser cut parts are showed and numbered from A to Q and try to identify which is which and where they fit in.
- Page 5 PREPARING THE CUT PIECES Firstly, remove all the laser cut parts from the sheets. The sheets can be discarded. Clean the edges of the parts if there are any tiny bits where the parts were fixed to the sheets. This can be done with your knife or even your thumb nail. We recommend that you start by sanding your finished product with a very light sandpaper to ensure a smooth finish for the end product.
- Page 6 LET’S GET STARTED WITH THE ASSEMBLY We would like to suggest that you assemble the four balconies first. The bottom three are all identical with the enclosed walls, while the top one has the low walls. Put the balcony floor (L) on your worksurface and proceed to glue the lugs of the four walls (M), (N), (P), and (Q) into the slots of the floor (L).
