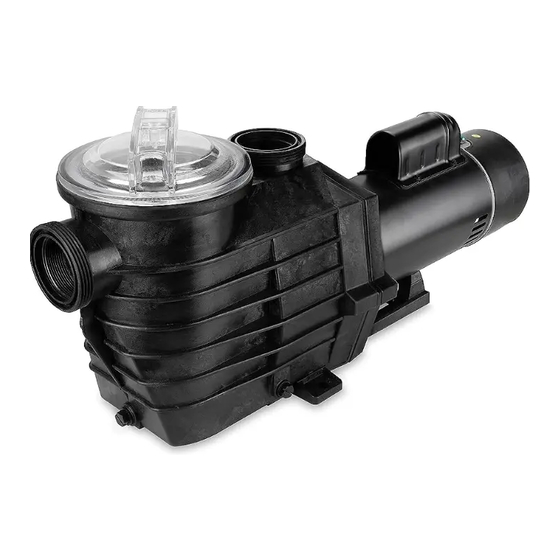

Prime Plus Pump
Installation And User Guide
Models: PL1700 Series

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Prime Plus PL1700 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pureline Prime Plus PL1700 Series

Summary of Contents for Pureline Prime Plus PL1700 Series

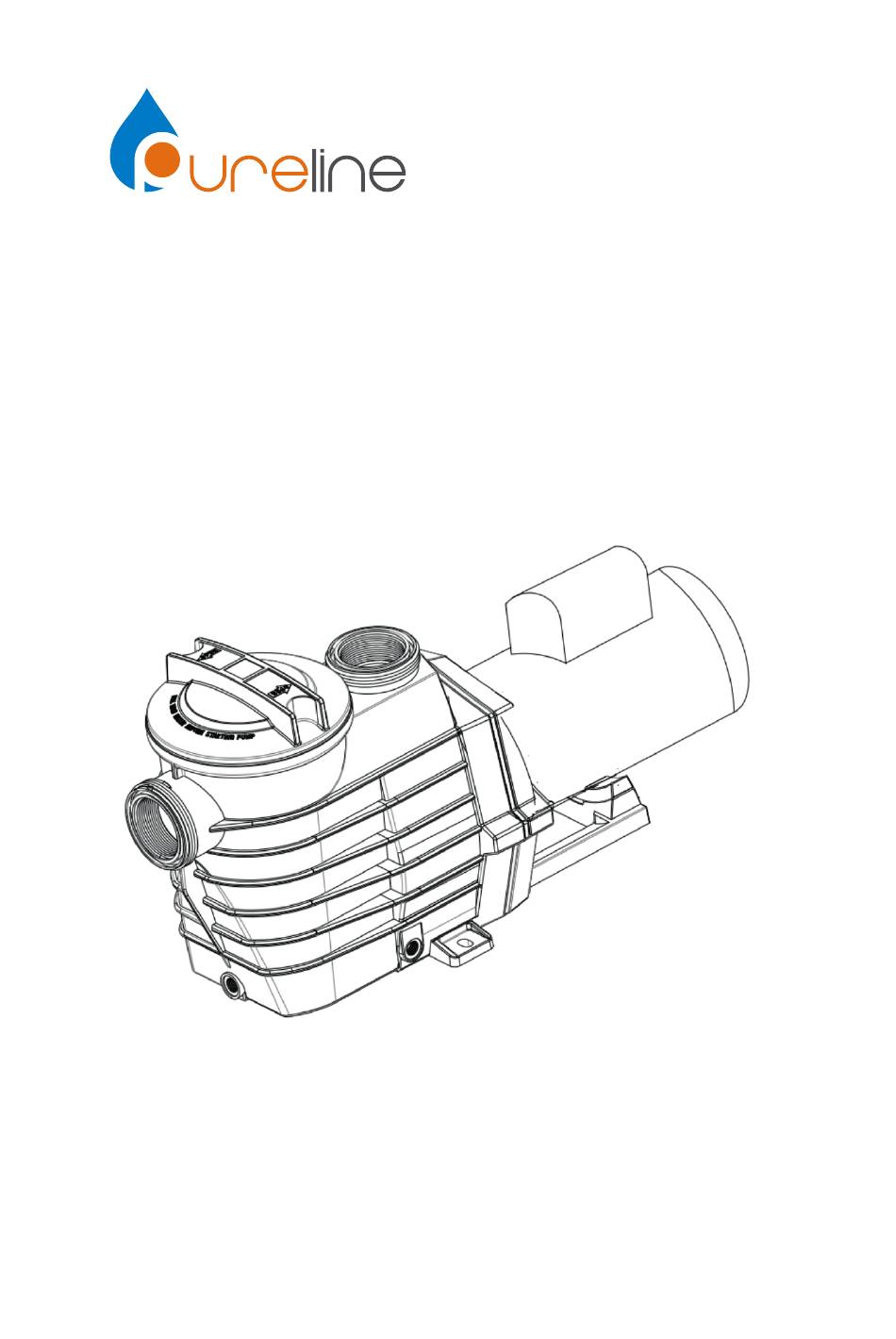

  • Page 1 Prime Plus Pump Installation And User Guide Models: PL1700 Series...

  • Page 2: General Warnings

    READ AND FOLLOW ALL INSTRUCTIONS ATTENTION INSTALLER: This manual contains essential information about the installation, operation, and safe use of this pool pump. Please remember to furnish this manual and all other instructional documents to the end user of this product. Failure to read and follow instructions can result in serious injury.

  • Page 3: Pump Overview

    DANGER- Suction Entrapment Hazard. The pump produces high levels of suction, thus creating a strong vacuum at the main drain at the bottom of your swimming pool/spa. This suction is so strong that it can trap adults and children under water if they come in close proximity to the drain. The use of unapproved drain covers, or allowing the use of your pool or spa when drain covers are either missing or broken, can result in body or limb entrapment, hair entanglement, body entrapment, evisceration, and/or death.
  • Page 4 Pump Dimensions Pump Installation Before servicing, all water circulation systems and pump controls must be in the off position, releasing all the pressure from the system. WARNING- This pump should be serviced and installed by licensed professionals. Location Place pump as close to the pool as it allows and run suction lines as direct as possible to reduce friction loss. All suction lines should have a continuous slope upward from the lowest point in line.

  • Page 5: Ideal Installation

    ● Avoid the use of 90-degree elbows within 12” of the suction port or discharge port of the pump. The fewer 90-degree elbows, the better. ● The use of two 45-degree fittings is better than one 90-degree elbow. ● If you are having problems with your pump keeping prime after the pump shuts off, then the use of a check valve on the suction side of the pump will help with keeping the pump primed.
  • Page 6 Improper Installation Filter 90° on suction side of pump Pump Filter Pump Discharge Port Ideally no 90° within 12’’ of pump suction port Pump Suction Port 90° 90° 3 Way Valve Piping 1. Larger piping sizes improve pool plumbing. 2. Piping on the suction side of the pump should be the same or larger than the return port. 3.
  • Page 7 Grounding and Bonding Install, ground, bond, and wire motor in accordance with local or national electrical code. Make sure to permanently ground the motor. Use green ground terminal provided under motor canopy or access plate. Use the appropriate size and wire type required by code. Connect motor ground terminal to electrical service ground.
  • Page 8 1. Ground wire connects to the ground terminal. 2. If your power supply has two hot wires, connect them to each terminal marked with “Line”; If your power supply has one hot wire and one neutral wire, connect either of them to either of the terminal marked with “Line”.

  • Page 9: Start-Up And Operation

    Voltage from the power must be in the range from 90% to 110% of the motor name plate rated voltage. Otherwise, the motor may overheat and result in overload tripping and reduced component life. Install, ground, bond, and wire motor in accordance with local or NEC requirements. Motor should be grounded permanently by connecting ground terminal to electrical service ground.
  • Page 10 2. CLOSE VALVES in suction and outlet pipes 3. RELEASE ALL PRESSURE from pump and piping system using filter manual air relief valve. Priming Pump All suction and discharge valves must be open as well as filter air relief valve when starting the circulating pump system.

  • Page 11: Troubleshooting

    Storage and Winterization Do not purge the system with compressed air. Doing this can cause inside components to explode, causing injury or death. Only use a low pressure (below 5 PSI), high volume blower when air purging the pump. WARNING- Allowing the pump to freeze will void your warranty. WARNING- Only use propylene glycol as antifreeze in your pool/spa.
  • Page 12 The Pureline Prime Plus pump was inspected before shipment from the warehouse. To original purchasers of this pump, Pureline Products warrants its products free from defects in materials and workmanship for a period of ONE (1) year from the date of purchase.
